Brita Purity C500 Quell ST Water Filter

Description

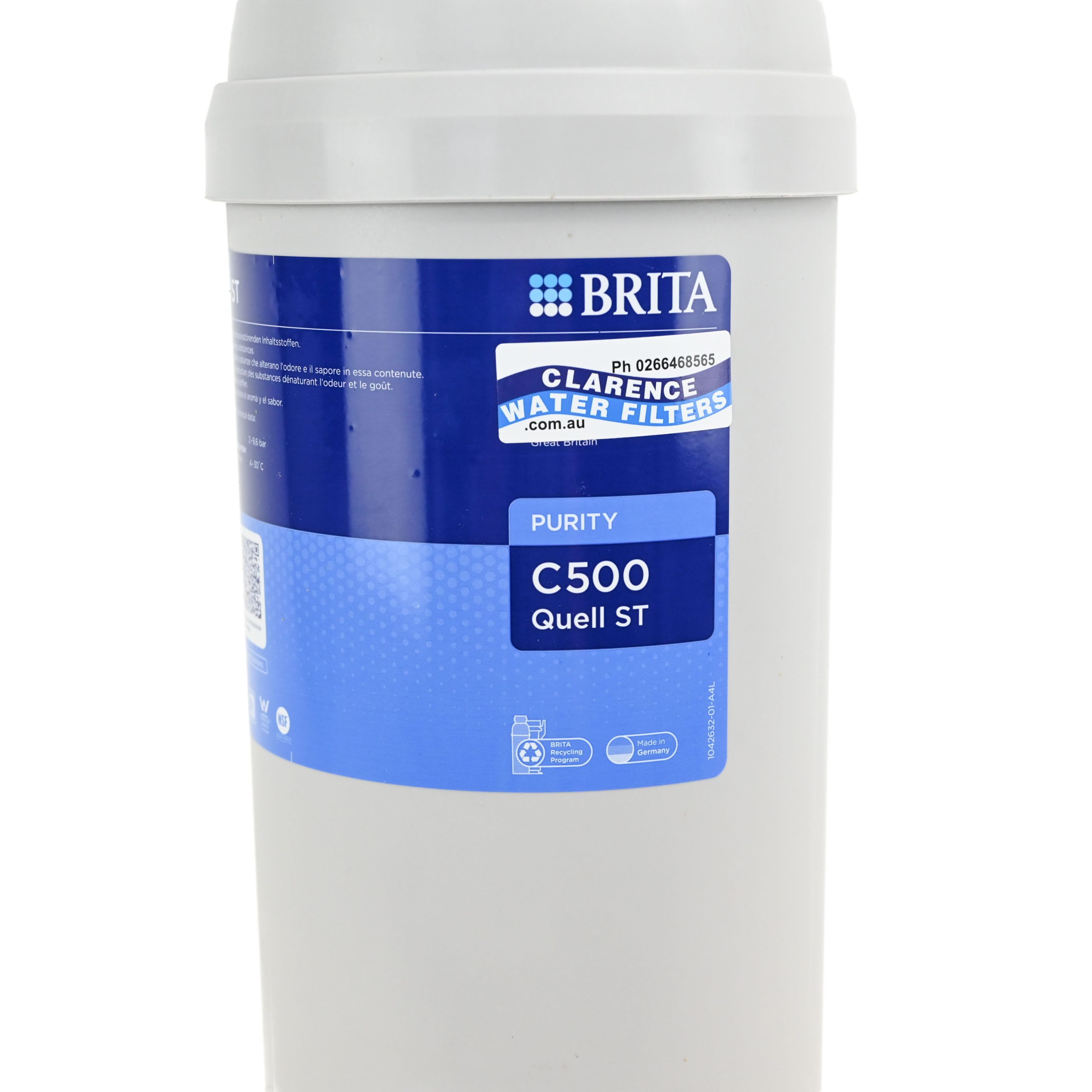

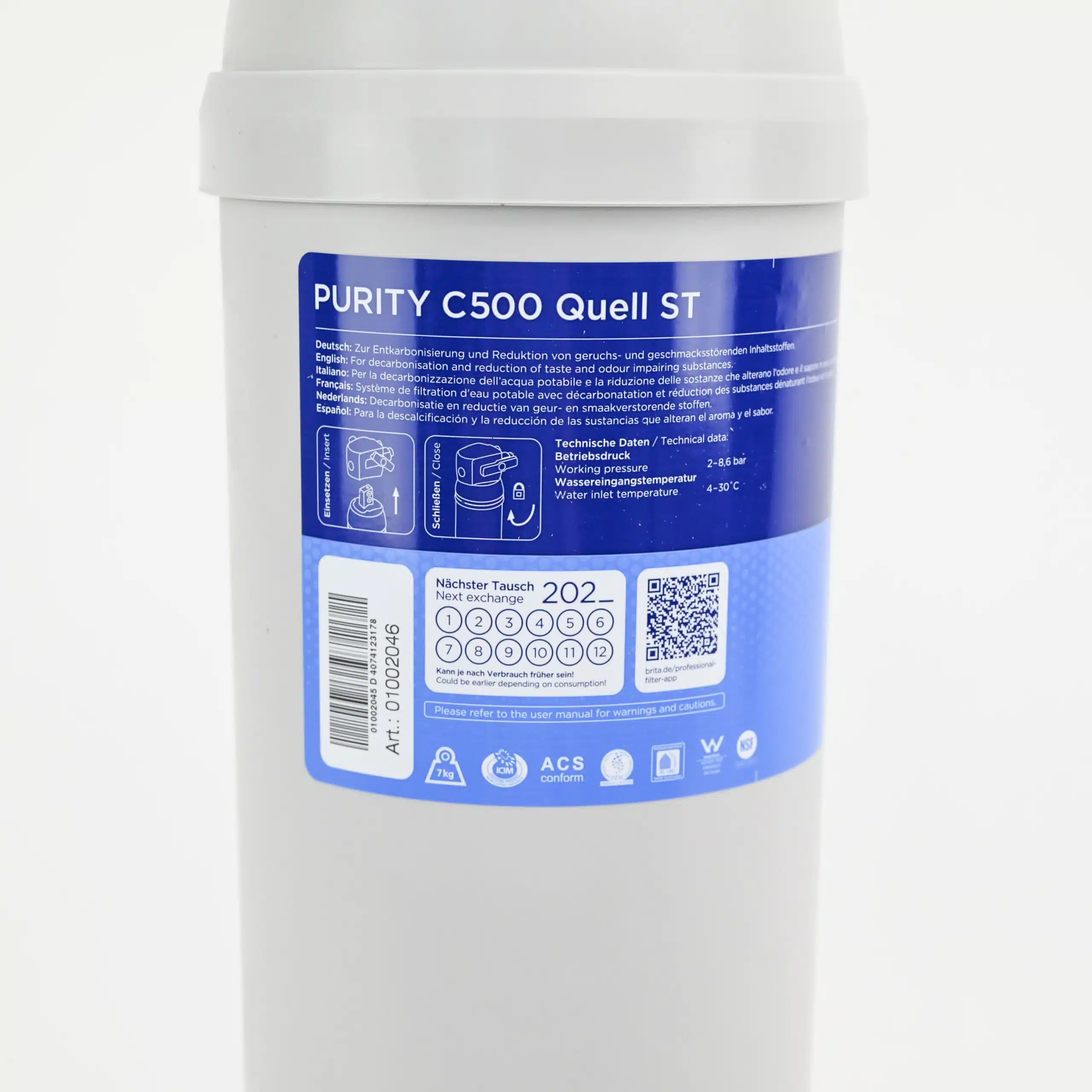

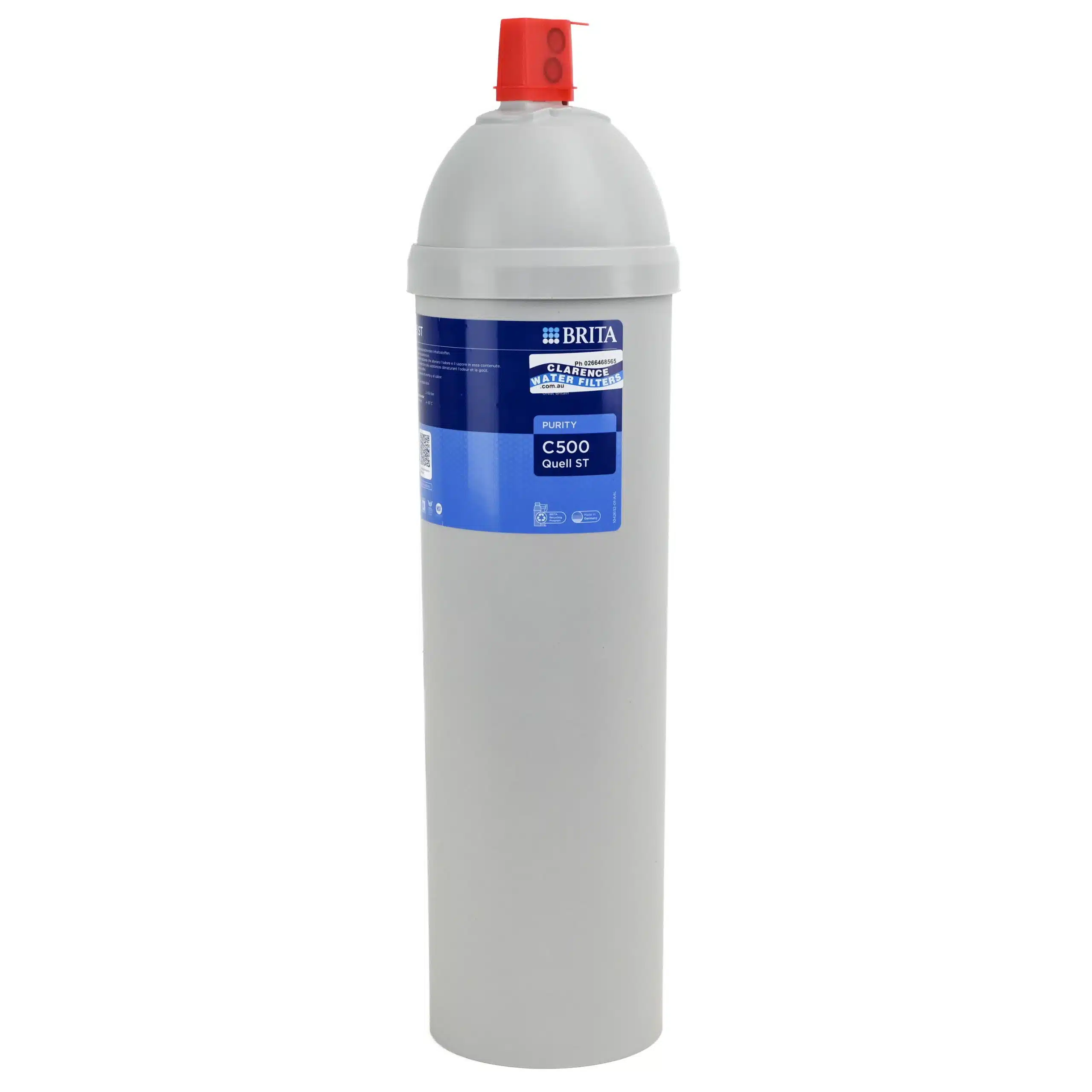

Purity C500 Quell ST Brita quick change filter cartridge Decarbonation filter.

Ideal for Coffee & Expresso Machines

Hot & Cold Vending Machines

Combi Ovens & Conventional Ovens

PURITY C Quell ST filter cartridges reduce the carbonate hardness in drinking water, thus preventing scale deposits in the downstream terminal equipment.

Depending on the by-pass setting, calcium, magnesium and metal ions can be selectively reduced from the drinking water during the flow process.

In addition to cloudiness and organic pollutants, the filter material also reduces the level of substances impairing smell and taste, such as chlorine residues in the filtrate and in the by-pass water.

Typical areas of application for PURITY C Quell ST are coffee and espresso machines, hot and cold drink vending machines as well as combi ovens and conventional ovens.

Brita Professional Four filtration stages

1. Pre-filtration reduces coarse particles

2. Carbonate hardness reduction an ion exchange reduces the carbonate hardness content and prevents scale deposits

3. Activated carbon filtration substances that can impair taste and odour are eliminated

4. Fine filtration retains particles measuring up to 10 µm

Variable head by-pass settings to suit water conditions.

Purity C500 Quell ST Bypass Settings

Below are a few setting to use as a guide.

Capacities for Coffee and Espresso Machines and Vending Machines in areas with soft to low hardness up to 140 ppm by-pass setting at 50% = 10094 litres or if the water is fairly hard 210 ppm and the by-pass set at 30% = 4908 litres.

Capacities for Combi Steamers and Conventional Ovens in areas with soft to low hardness up to 140 ppm by-pass setting at 0% = 5313 litres or if the water is fairly hard 210 ppm = 3542 litres. By-pass set at 10% and hardness up to 140 ppm = 5844 litres or 3896 litres at 210 ppm hardness.

Let us know your water hardness reading and we can advise you on the best by-pass setting to suit your local water.

Purity C500 Quell ST Specifications

• Dimensions: 545mm overall x 130mm across
• Filtration Stages: Sediment filtration, Carbonate hardness reduction, Carbon filtration, Fine sediment filtration
