Clear 10" Big Blue filter Housing
BB_SS_Single__45061.jpgBig_Blue_or_White_Housing_spanner__13628.jpgWilkins_LWG-20-RA_PLV__68204.jpg

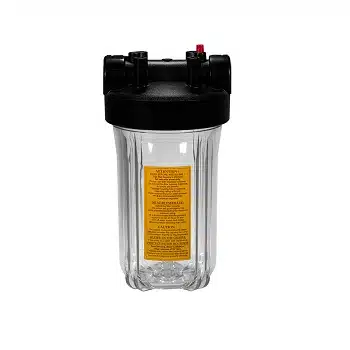

Clear 10″ Big Blue Style Filter Housing

$118.00$251.75

Clear

Product Description

1045BBClear 10” Clear Jumbo Filter Housing.

Large housing will take most 10″ x 4.5″ filter cartridges.

FDA grade materials, Polypropylene head cap, Acrylic clear sump.

Connections: 1” BSP Female threads Maximum Temperature: 125°F ( 52°C )

It is recommended to have a Pressure limiting or reduction valve fitted if pressure is over 70 PSI

High flow rate up to 80 Lpm depending on filter cartridge.

Pressure Release button.

Not recommend for use in sunlight areas.

Larger filters can be used which have a bigger capacity and longer service life compared to standard size filter housings and a range of filters are available for every situation.

Max pressure 90 psi (6.2 bar)

Dimensions are 340mm high without bracket x 185mm wide

Other options available are Brass BR4 PLV 3/4″ port 500Kpa pressure limiting valve.

BB Big White S/S Mounting bracket and screws and Plastic housing spanners are available under Filter Housings and Parts.

The replacement o-ring is the 150mm OD x 5mm or part 826/A
