Description
Hi Flow Caravan and RV water filter system can be used as a portable filter or at home (AP10X2POH)
Ideal for caravans and motorhomes that are mainly connected to town water supplies. Perfect for vehicles and vans that have showers on board and require a high flow rate.
Can remove sediment, chemicals, and bad tastes/odours at high flow rates up to 8-10 litres per minute.
Quality heavy duty high pressure filter housings. This 10″ Twin Filter System 3/4″ BSP threaded in/outlet ports with Brass click on hose fittings that screw into the housings. Comes with your choice of a white powder coated mounting bracket or stainless steel mounting bracket.
Can be used on mains pressure or water pumps. Plumb in or used as a portable filter you can use this system when you are traveling and when you are at home.
An ultra-portable solution for filtering 100% of the water coming into your caravan, RV, or motor home.
Hi Flow Twin Caravan & RV Water Filter System – Filtration Process
Stage 1: 1025PS5 – 5 Micron Sediment Filter
First stage is a high flow 5 Micron Sediment Filter 1025PS5 which can remove sand, silt, dirt, rust, metal particles, mud, algae, and other particulate contaminants.
Keeps particulates out of your tank plus protects your internal plumbing and appliances from damage.
Stage 2: AP1025KDF/GAC – 5 Micron Carbon and KDF Filter
Second stage is a AP1025KDF/GAC Hi flow KDF and Silver Carbon Filter. This is a triple action filter with:
- Sediment pads
There are sediment pads on the top and bottom of the filter. They reduce particulate contaminants down to 5 microns in size. - KDF55
A proprietary blend of copper and zinc. As water flows through this combination of metals, certain contaminants will lose of gain electrons, changing them into harmless molecules. Reduces chlorine, chloramines, heavy metals, and hardness at fast flow rates. - Silver Carbon
Carbon adsorbs chemical contaminants and bad taste/odour from the water. Can reduce chlorine, volatile organic compounds, petrochemicals, herbicides, pesticides, and much more.
Because copper and silver are bacteriostatic, there is less risk of bacterial growth inside of the filter. This is very useful in a caravan or RV filter, as it may only be used intermittently.
The system as a whole will reduce high levels of Chlorine, Chemicals, Bad Taste, Odours, Dirt, Rust, Algae & Sediment. For clean, safe and great tasting water where ever you are.
Hi Flow Twin Caravan & RV Water Filter System – Features
- Rugged, UV Resistant 10″ Aqua-pro housings
- Takes standard 10″ x 2.5″ filters which are easy to find
- Brass click on hose fittings make it simple to connect to any water tap
- Capable of supporting high flow rates needed for showers and water consuming appliances
- Simple to connect and disconnect
- Removes a wide range of particulate and chemical contaminants
- Affordable replacement filters

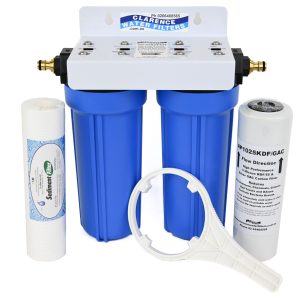

What’s In The Box?
- High-quality Twin Aqua-pro 10″ x 2.5″ Housing (UV Resistant)
- 1025PS5 – 5 Micron Sediment Filter
- AP1025KDF/GAC – 5 Micron Carbon and KDF Filter
- Steel bracket (choice between white painted or stainless steel)
- Brass click on hose fittings
- (Optional) Sump spanner
Hi Flow Twin Caravan & RV Water Filter System – Specifications
- Recommended filter life: 9 months if used daily or 18 months if used off & on depending on water supply.
- Dimensions: 375mm high including bracket, 265mm wide without the fittings and 165mm deep.
- Sediment filter: 1025PS5 5 Micron Sediment Filter
- Chemical filter: AP1025KDF/GAC 5 micron Carbon and KDF Filter
System works standing or laid down if space is a problem.
Stainless Steel mounting brackets and opening spanners are available in the product options.
Hi Flow Twin Caravan & RV Water Filter System – Installation Tips
STAGE I 1025PS – 5 micron micron poly spun sediment filter
STAGE II AP1025KDF/GAC- High Flow KDF55 + Silver GAC carbon filter
- Replacement Period
The sediment filters will need to be replaced every 6 – 12 months or as required. Use 10 micron or higher wherever the sediment content is heavy to severe. Otherwise use 1 to 5 micron under light to normal sediment conditions. The carbon filter should be replaced after 12 – 18 months depending on usage. - Storage
It is always best to remove filters from sumps when not in use and dry out thoroughly. - This carbon filter can be gently back-flushed of sediment build-up from time to time to extend life, however, do not use high pressure or flow rate and flush for only 5 – 10 litres.
- Closing sumps
Never use the housing spanner to tighten the filter housings, hand tighten only. - Flushing filters
After fitting new filters, turn the water supply line on slowly without the hose on the outlet side being connected. Once water is coming out of the system turn up the water flow and flush the new filters to remove any air and fines from the filters. Run until the water is clear with no bubbles, then connect into your system.
Installation Tips
STAGE I: 1025PS5 5 micron poly spun sediment filter
STAGE II: AP1025KDF/GAC High Flow KDF55 + Silver GAC carbon filter
- The sediment filters will need to be replaced every 6 – 12 months or as required. Use
10 micron or higher wherever the sediment content is heavy to severe. Otherwise use
1 to 5 micron under light to normal sediment conditions. - The carbon filter should be replaced after 12 – 18 months depending on usage.
It is always best to remove filters from sumps when not in use and dry out thoroughly. - This carbon filter can be gently back-flushed of sediment build-up from time to time to
extend life, however, do not use high pressure or flow rate and flush for only 5 – 10
litres. - Never use the housing spanner to tighten the filter housings, hand tighten only.
- After fitting new filters, turn the water supply line on slowly without the hose on the
outlet side being connected. - Once water is coming out of the system turn up the water
flow and flush the new filters to remove any air and fines from the filters. - Run until the water is clear with no bubbles, then connect into your system.
