Pentek 20″ Big White Water Filter Housing Square Sealing Ring USA Made

$174.00$283.50

Description

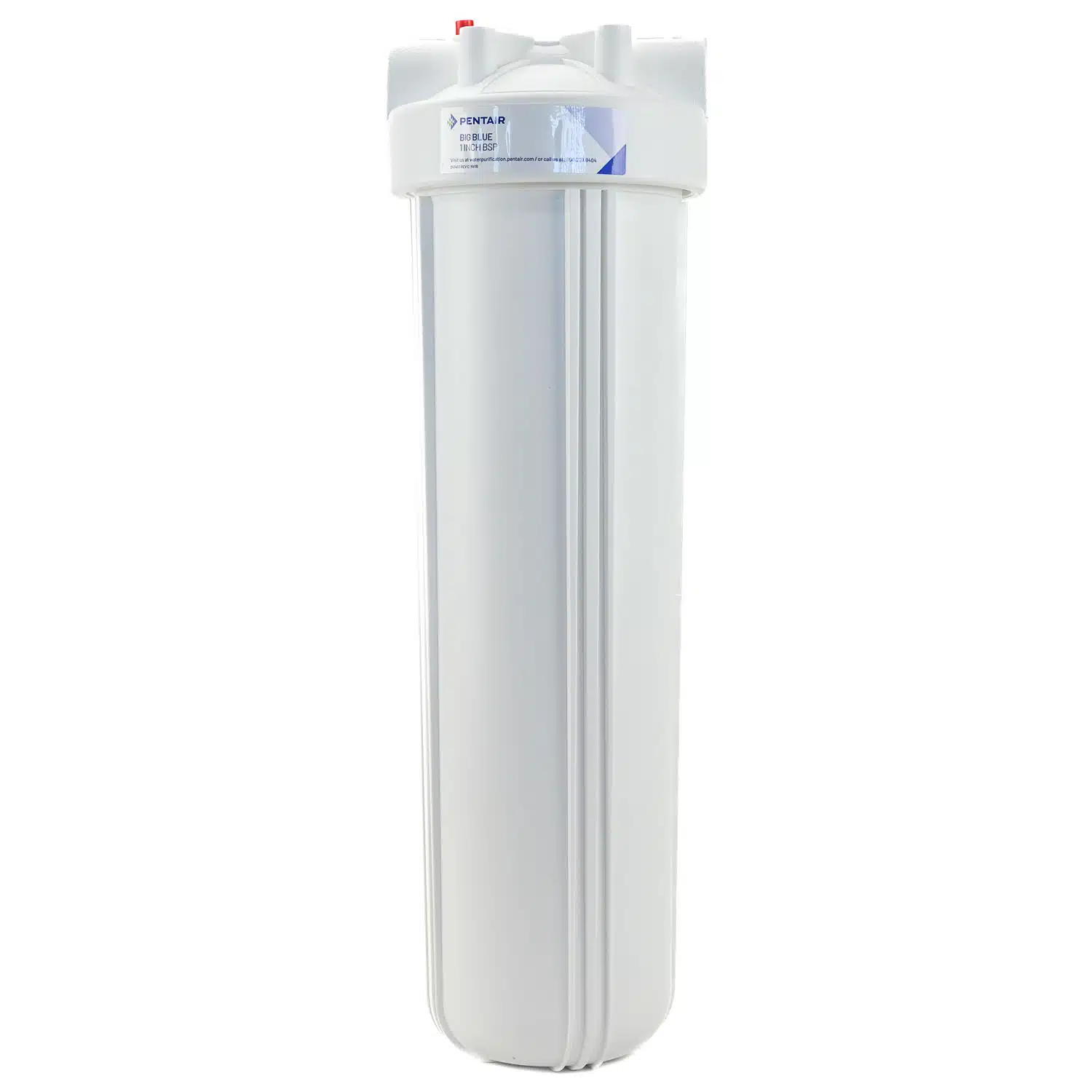

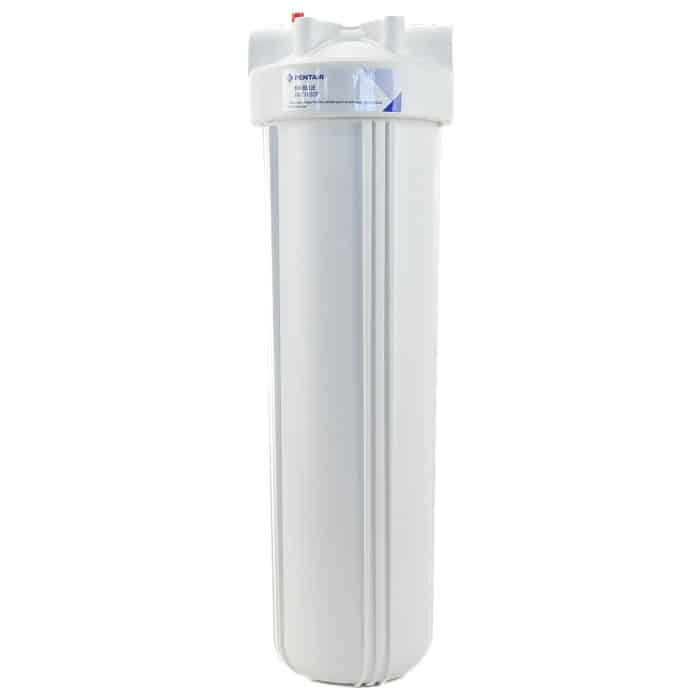

Pentek Big White Large 20″ x 4.5″ filter housing.

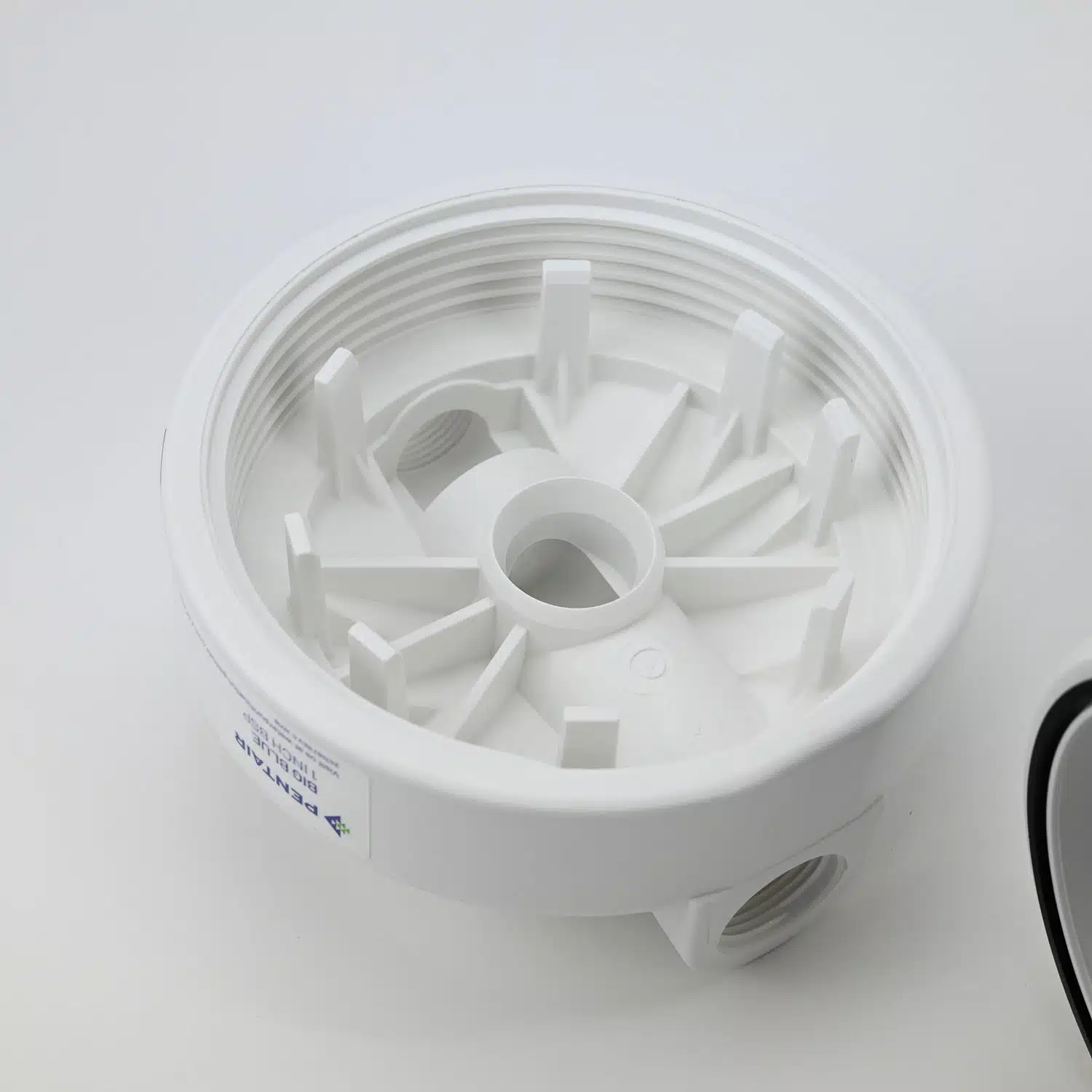

One of the best plastic filter housings on the market with a square cut sealing ring that sits deep into the top of the housing sump for a positive seal each time.

Ideal for Whole of house, Pumps, Tanks etc. or any where a high flow rate is required eg. house, rural or commercial applications.

Any 20″ x 4.5″ cartridges can be used for a bigger capacity and longer service life compared to standard size filter housings.

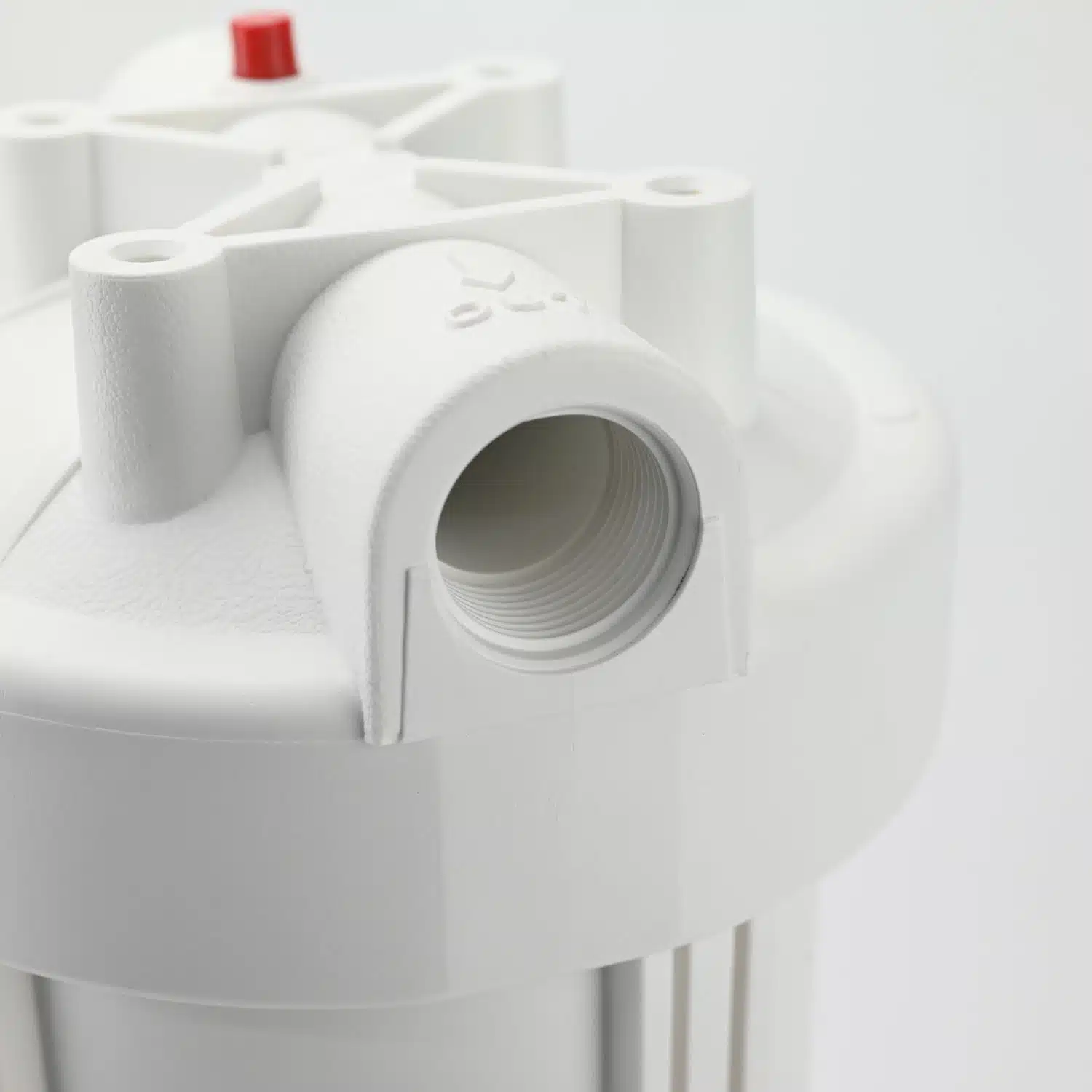

Available with 1″ or 1.5″ inlet and outlet ports.

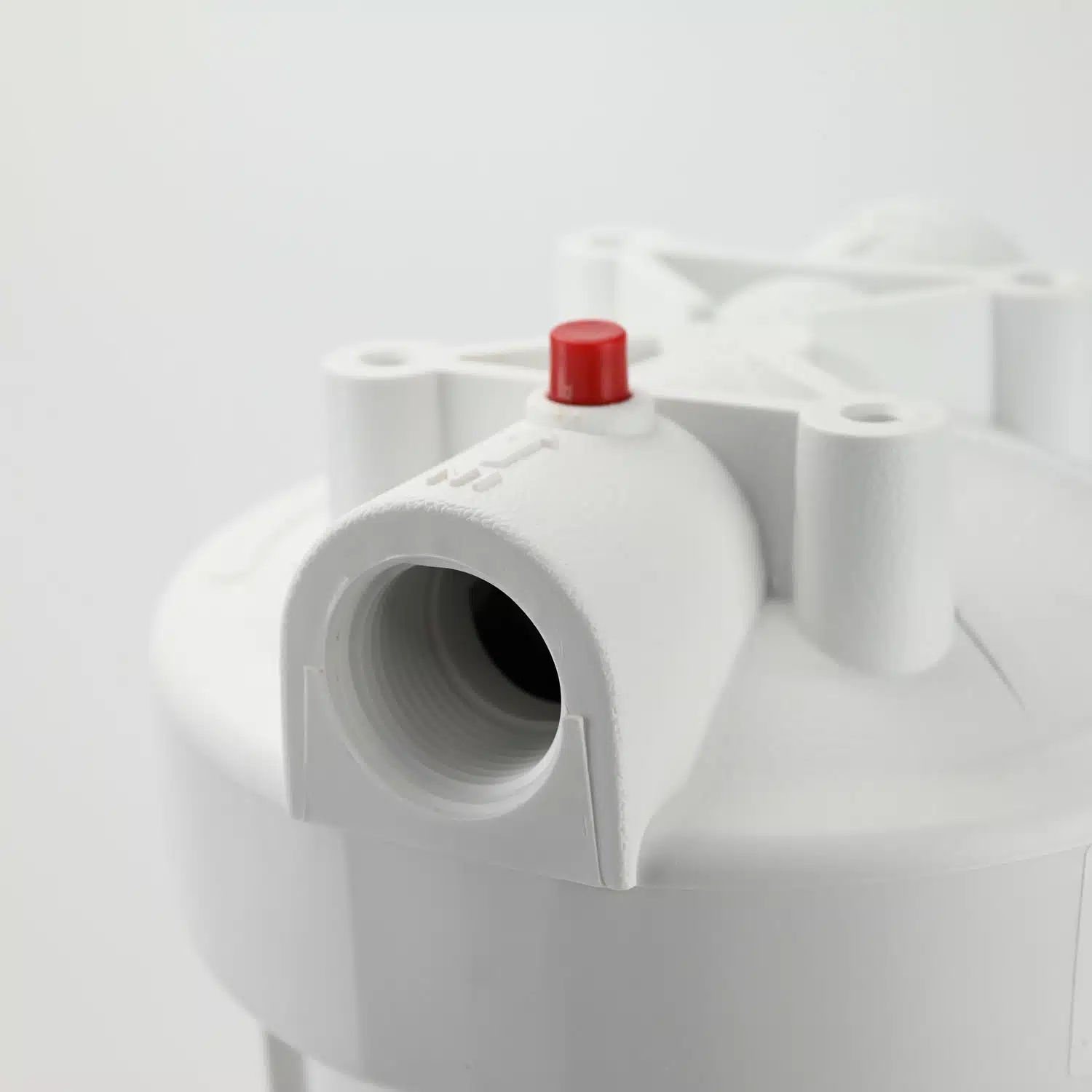

These housing have a pressure relief button.

This listing is for the housing only a range of filters are available for every situation.

Flow rate up to 170 Lpm depending on filter used and water pressure & pipe size.

Dimensions are 606mm high x 184mm wide.

Max pressure 90 psi (6.2 bar)

Max temp 38.8˚C

Materials of construction housing Polypropylene (HFPP)    Relief button assembly 300 series Stainless steel, EPDM amd Polypropylene.

Made in America

Other options available are Brass PLV 3/4″ port 500Kpa pressure limiting valve.

BB Big White S/S Mounting bracket and screws and Plastic housing spanners are available under Filter Housings and Parts.

The replacement square cut seal for this housing is the Pentek 151254
