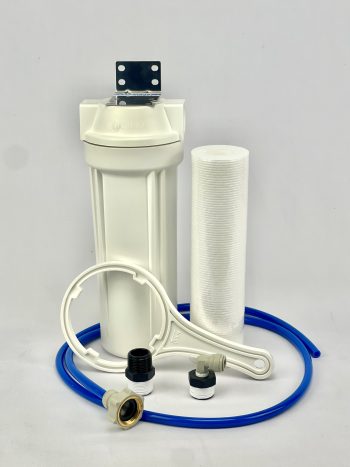

Sediment Filter – 1025PS5
Screw the black bush fitting with the thread tape into the inlet side of the system then screw the small elbow fitting into that fitting.
Screw the large black ¾” nipple with thread tape into the outlet side of the system leaving the untapped thread exposed for the washing machine hose.
Unscrew the washing machine hose from the cold water tap and replace with the Blue tube and tube adaptor.
The other end of the blue tubing is then pushed all the way into the quick connect elbow fitting until it bottoms out then pull outwards to lock and seal.
Before attaching the washing machine hose to the outlet side of the filter, flush the filter into the laundry tub to remove any carbon fines.
Flush until water runs clear, you only need to do this the once when you install a new filter cartridge.
Attach the washing machine hose to the outlet side of the filter kit.
Changing Filters
Using a clean cloth or paper towel wipe around the o-ring seal and where it seats, before replacing the o-ring use food grade silicone grease to keep the o-ring soft and to help it seal. (Veggie or cooking oil will do the same job)
Clean out the housing and replace the filter cartridge.
Only hand tighten the housing sumps do not use the spanner and over tighten sumps, then wipe dry with a clean cloth.
Always check for leaks after changing filter.
Replacement filters
1025PS5 – Poly Spun Sediment Filter – 5 micron
(Other micron ratings available)
