Description

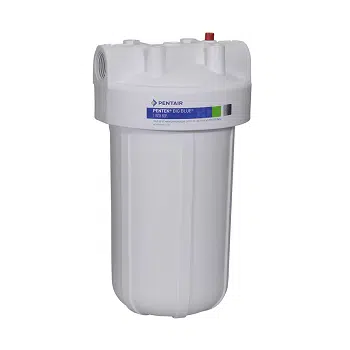

Pentek Big White Large 10″ x 4.5″ filter housing.
One of the best plastic filter housings on the market with a square cut sealing ring that sits deep into the top of the housing sump for a positive seal each time.
Ideal for Whole of house, Pumps, Tanks etc. or any where a high flow rate is required eg. house, rural or commercial applications.
Any 10″ x 4.5″ cartridges can be used for a bigger capacity and longer service life compared to standard size filter housings.
Available with 1″ or 1.5″ inlet and outlet ports.
These housing have a pressure relief button.
This listing is for the housing only a range of filters are available for every situation.
Flow rate up to 170 Lpm depending on filter used and water pressure & pipe size.
Dimensions are 340mm high x 184mm wide.
Max pressure 90 psi (6.2 bar)
Max temp 38.8ËšC
Materials of construction housing Polypropylene (HFPP)Â Â Â Relief button assembly 300 series Stainless steel, EPDM amd Polypropylene.
Made in America
Other options available are Brass PLV 3/4″ port 500Kpa pressure limiting valve.
BB Big White S/S Mounting bracket and screws and Plastic housing spanners are available under Filter Housings and Parts.
The replacement square cut seal for this housing is the Pentek 151254
Please note: Do not use pipe dope or other liquid thread sealers on systems with plastic ports. It will invalidate system warranty. Only use Teflon tape to seal threaded connections.Â
