Description
This compact under sink system consists of two USA-made Omnipure water filters, filter heads, steel mounting bracket, fittings, and tubing. Designed to work with existing 12mm tubing.
Established in 1970, Omnipure is an American company that has grown to be one of the leading manufacturers of water filters. They take great pride in the quality of their products and have a track record of innovation.
This kit takes some popular Omnipure L-Series filters and combines them with all of the fittings you will need to enjoy delicious, clean water in your motorhome, camper, RV, or caravan.
Two different filter combinations are available, the shorter L5305/L5320 combination and the longer L5505/L5520. Simply choose the size which will suit the undersink space in your van or motorhome. Other L-series filters are also available.
This two filter Omnipure kit has a 5 micron sediment filter in stage 1 for particulate reduction followed by a cyst-rated 1 micron carbon block filter for taste/odour improvement, chlorine reduction and chemical reduction.
It dramatically improves the quality of water coming from your drinking tap, making your next trip away much more enjoyable.
1 Micron Omnipure carbon block filters are NSF/ ANSI Standard 53 Certified to reduce parasitic cysts including Cryptosporidium, Giarda and Cyclospora. These types of pathogens may be present in untreated or poorly treated water which you might encounter while travelling.
Please note: These kits are sold with a left to right flow direction (inlet on the left). If you require a right-to-left flow direction, add a note in the comments box during checkout. Change flow direction is a simple matter of unscrewing the bracket and changing its orientation.
Features and Benefits
- American-made brand you can trust
Omnipure is a reputable brand with a long history of producing high-quality products. When you install an Omnipure system, you can be assured you have a product that works. - Certified to NSF/ANSI Standards
NSF/ ANSI Standard 53 for 99.95% Cyst Reduction along with WQA Sustainability and WaterQuality certifications. - Produces Delicious Pure Water
Uses coconut carbon which to deliver great tasting water to nourish you while travelling around Australia.. - Simple Filter Replacements
L-series filters have a patented keyed design which makes installing and removing filters a breeze. They screw in light a lightbulb with a simple one-quarter turn. The filters are fully contained so there is no risk of media contamination during handling. A great compact solution for caravans, motor homes and RVs. - Hygienic Filter Cartridge
As the filter is self enclosed, there is reduced risk of the media being contaminated. It also means your spare filters have less risk of contamination. .
What Contaminants Does It Reduce?
This unit can reduce a wide range of contaminants including:
- Chlorine and chloramines
- Sediment including sand, silt, rust, dirt, algae, insoluble metal particles, suspended material not visible at naked eye
- Giardia cysts, Cyclospora, and Cryptosporidium
- Asbestos fibers
- Bad taste and odor
Specifications
- Manufacturer: Omnipure
- Country of origin: United States
- Micron rating: 5 micron sediment filter 1 micron carbon block filter
- Filter media: Polyspun filter media and coconut activated carbon
- Flow rate: 0,5 gpm (1,9Lpm)
- Cartridge dimensions: 175mm x 62mm (L5305/L5320) and 285mm x 62mm (L5505/L5520)
- Connection type: 1/4″ Tube Fittings in Filter Head (Other sizes also available)
Leave a vertical space of at least 7 cm under filter to allow for filter replacement.

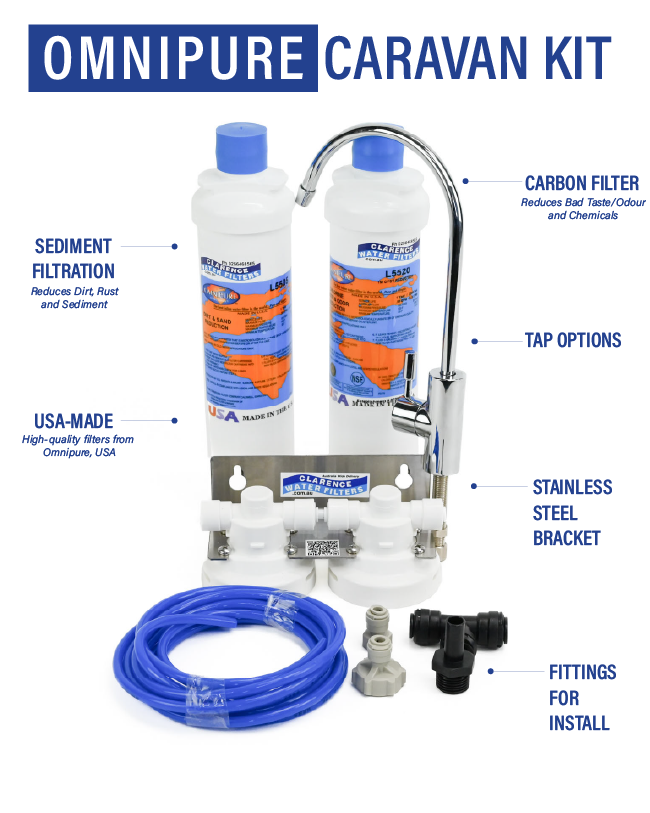

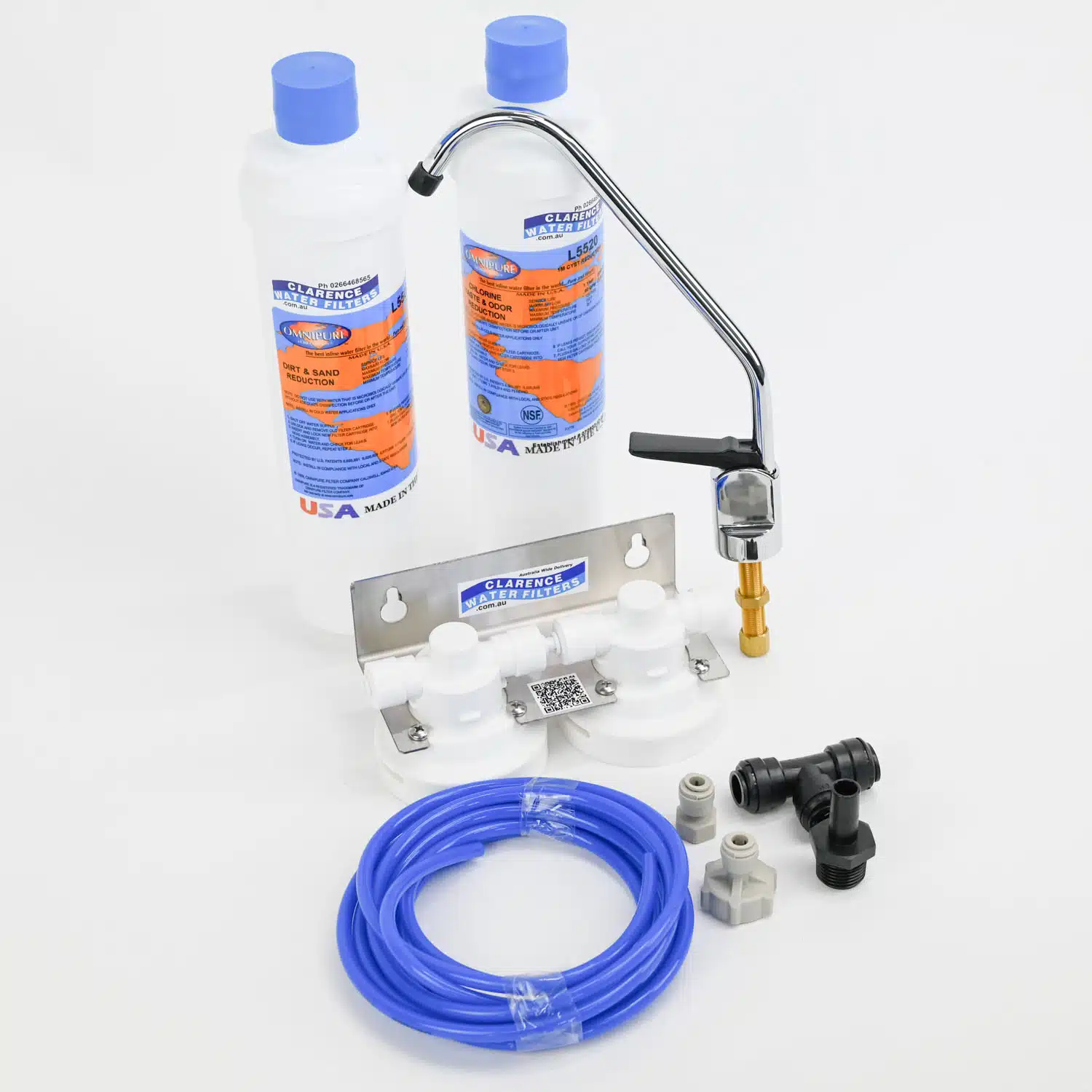

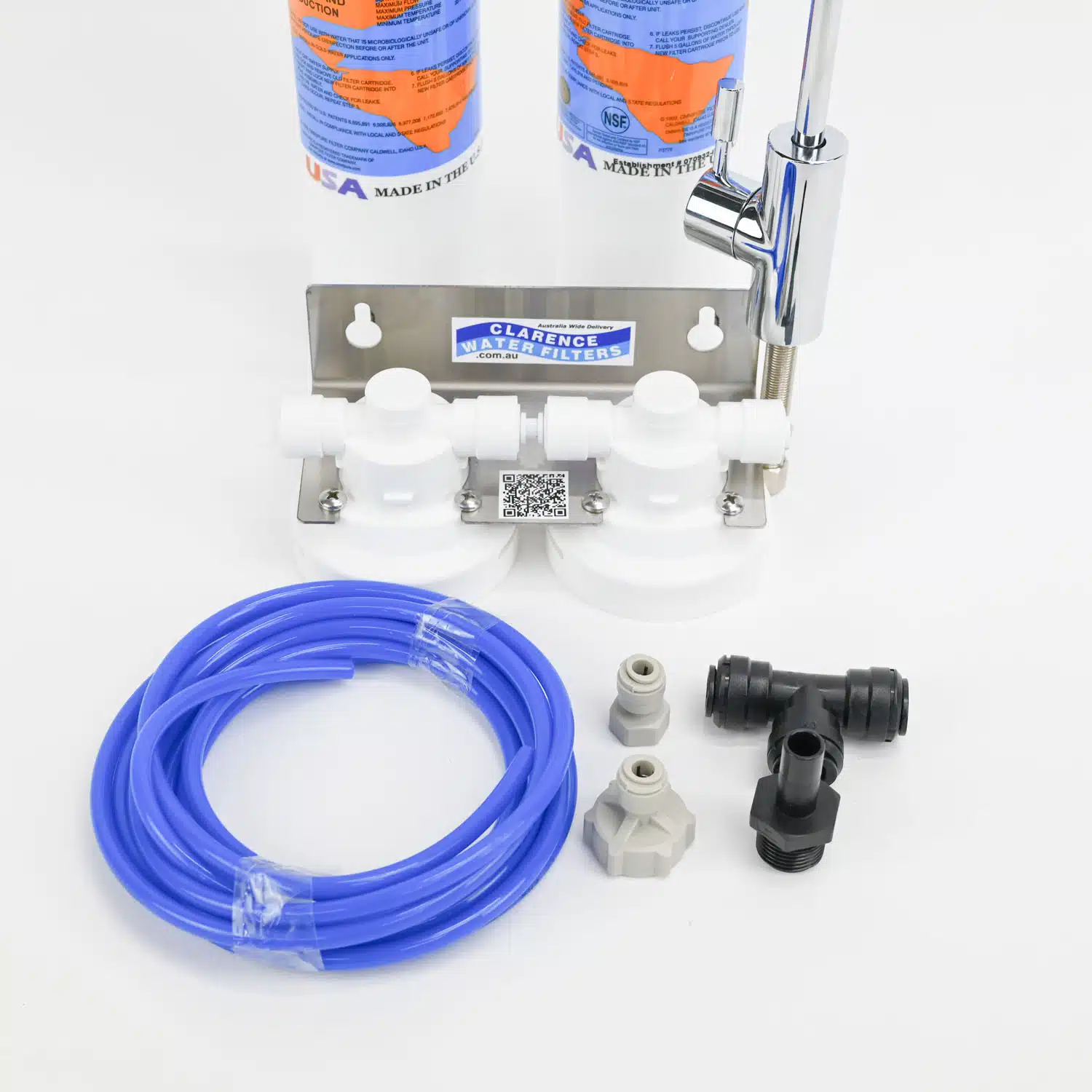

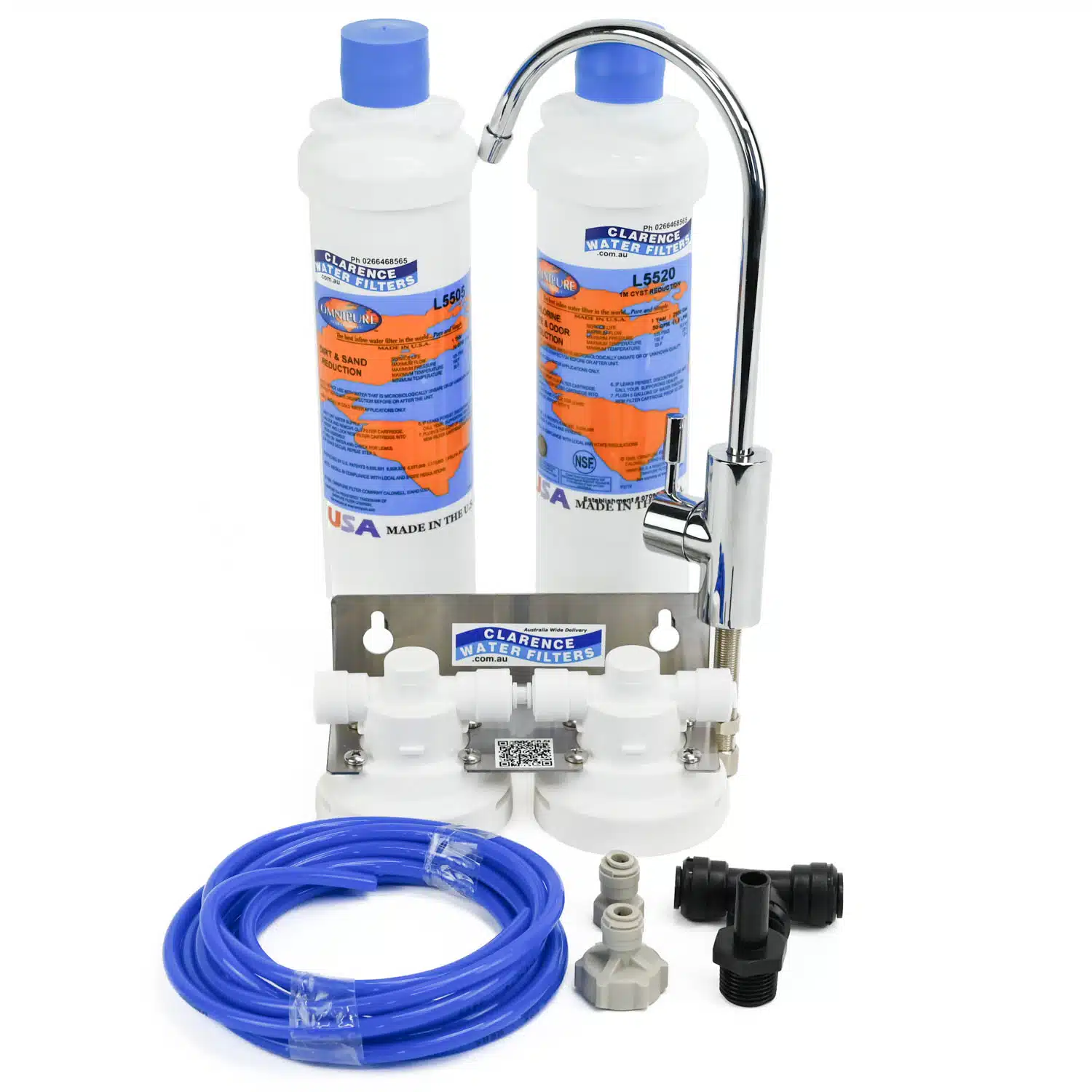

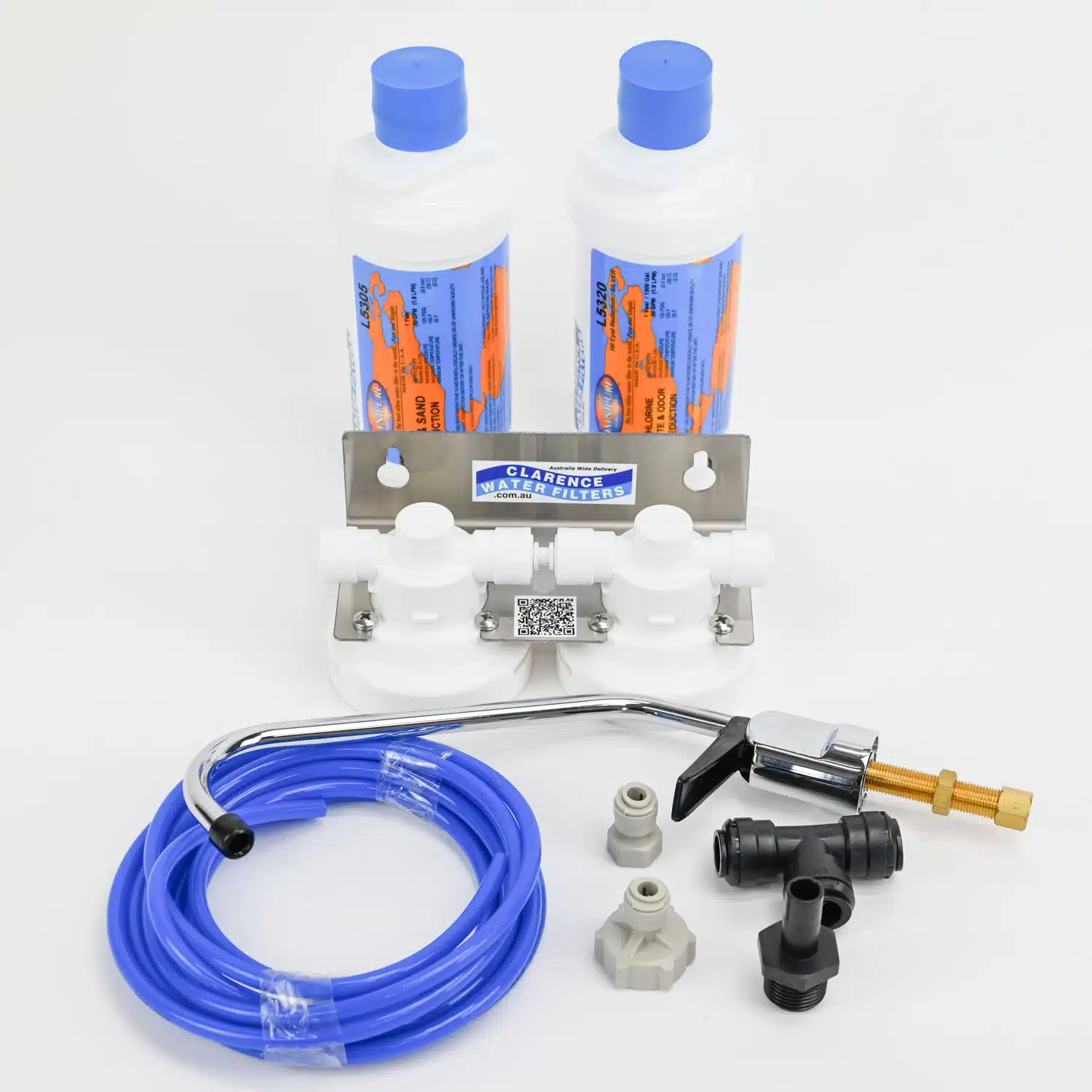

What’s In The Box?
The Omnipure caravan and RV filter system comes with everything you need to filter your incoming water, including:
- 1 x Filter Set (L5305 + L5320) OR (L5505 + 5520)
- 1 x Twin Omnipure L Series Head on Bracket
- 2 x Metres of 1/4″ blue tubing (Runs between water filter and tap)

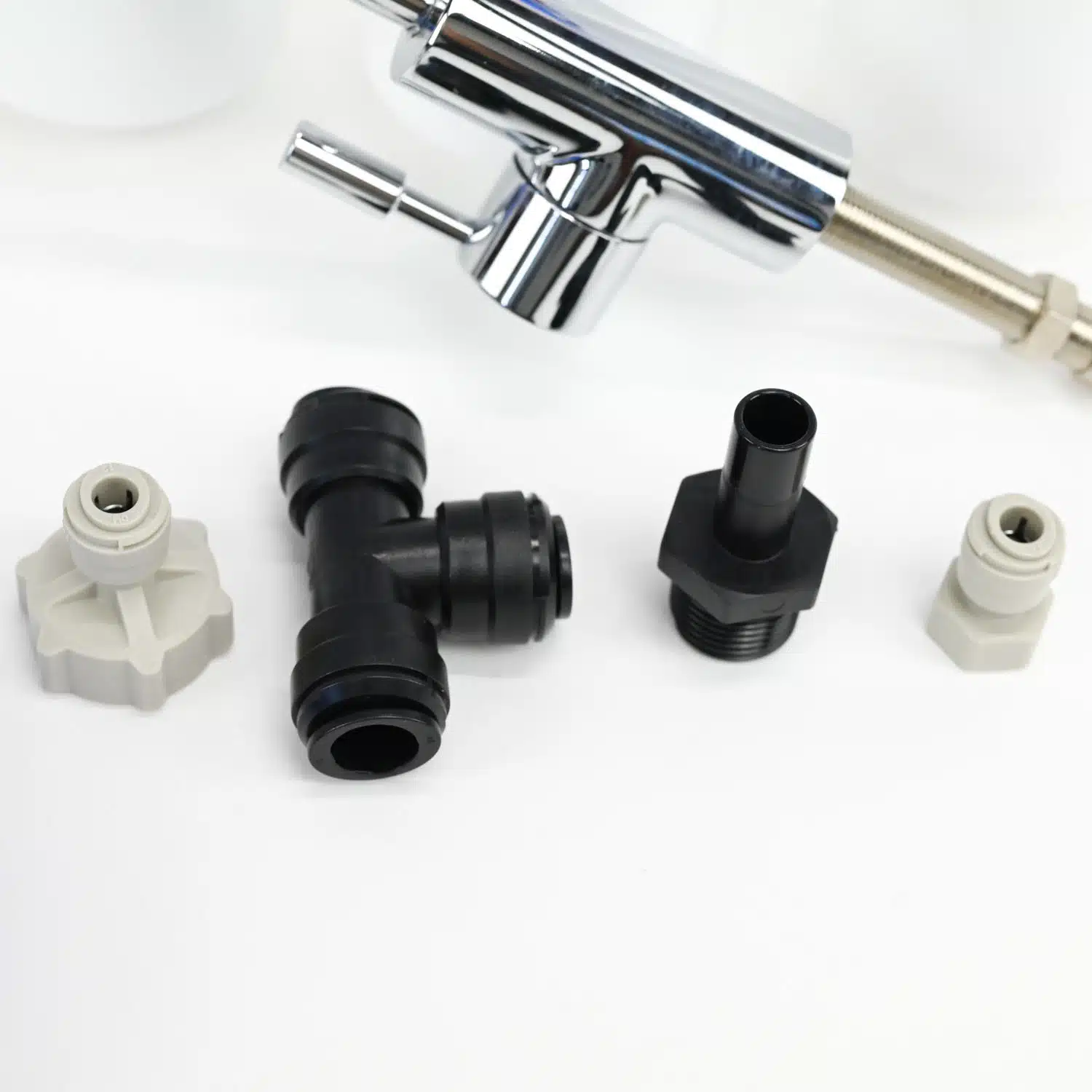

- 1 x 7/16″ UNS to 1/4″ Connector (Connects your tap to tubing)
- 1 x 12mm DMFit Tee fitting (Connects with your standard 12mm tubing)
- 1 x 12mm stem to 1/2″ BSP male (Connects into Tee fitting)
- 1 x 1/2″ BSP female to 1/4″ tube (Connects with Stem fitting to feed water filter)

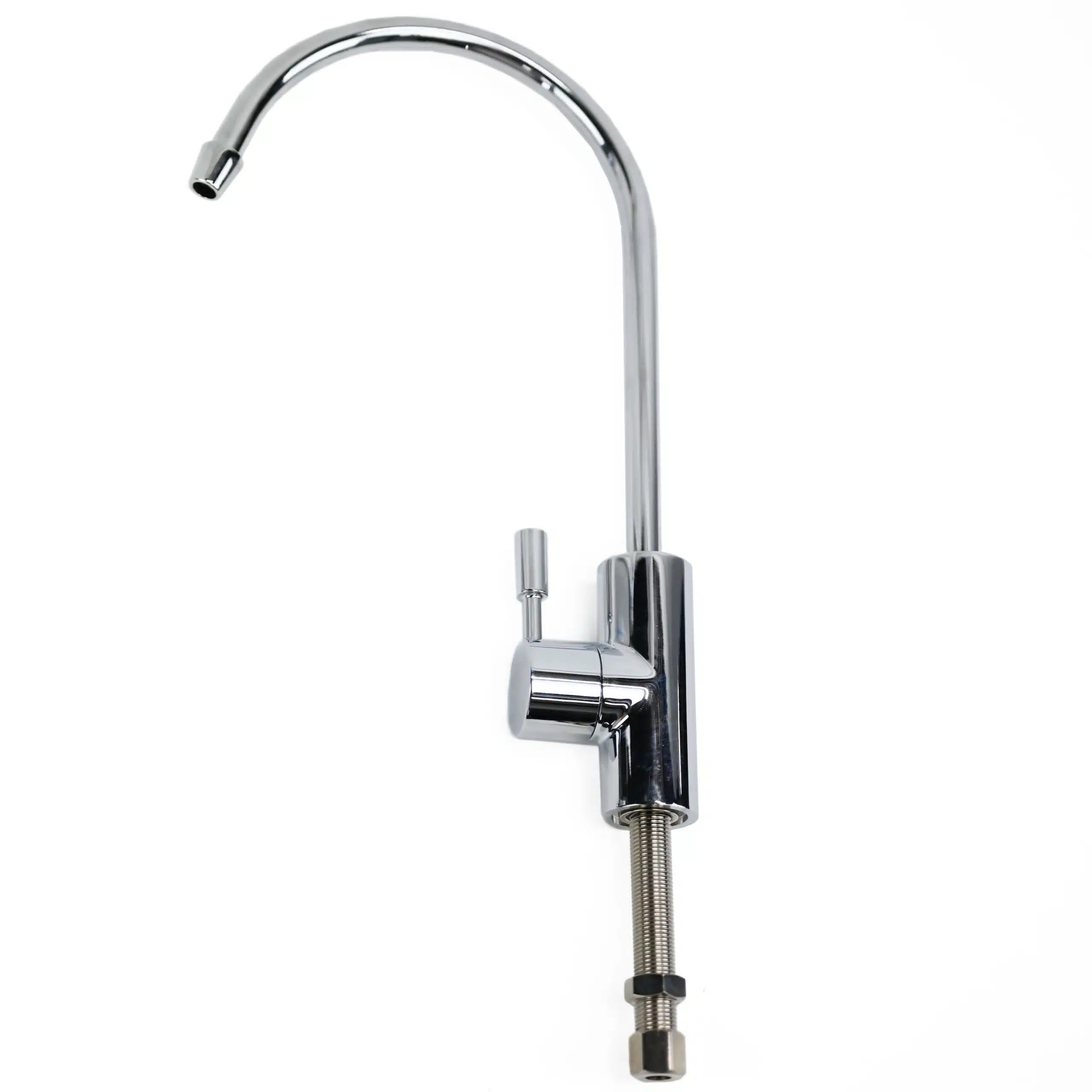

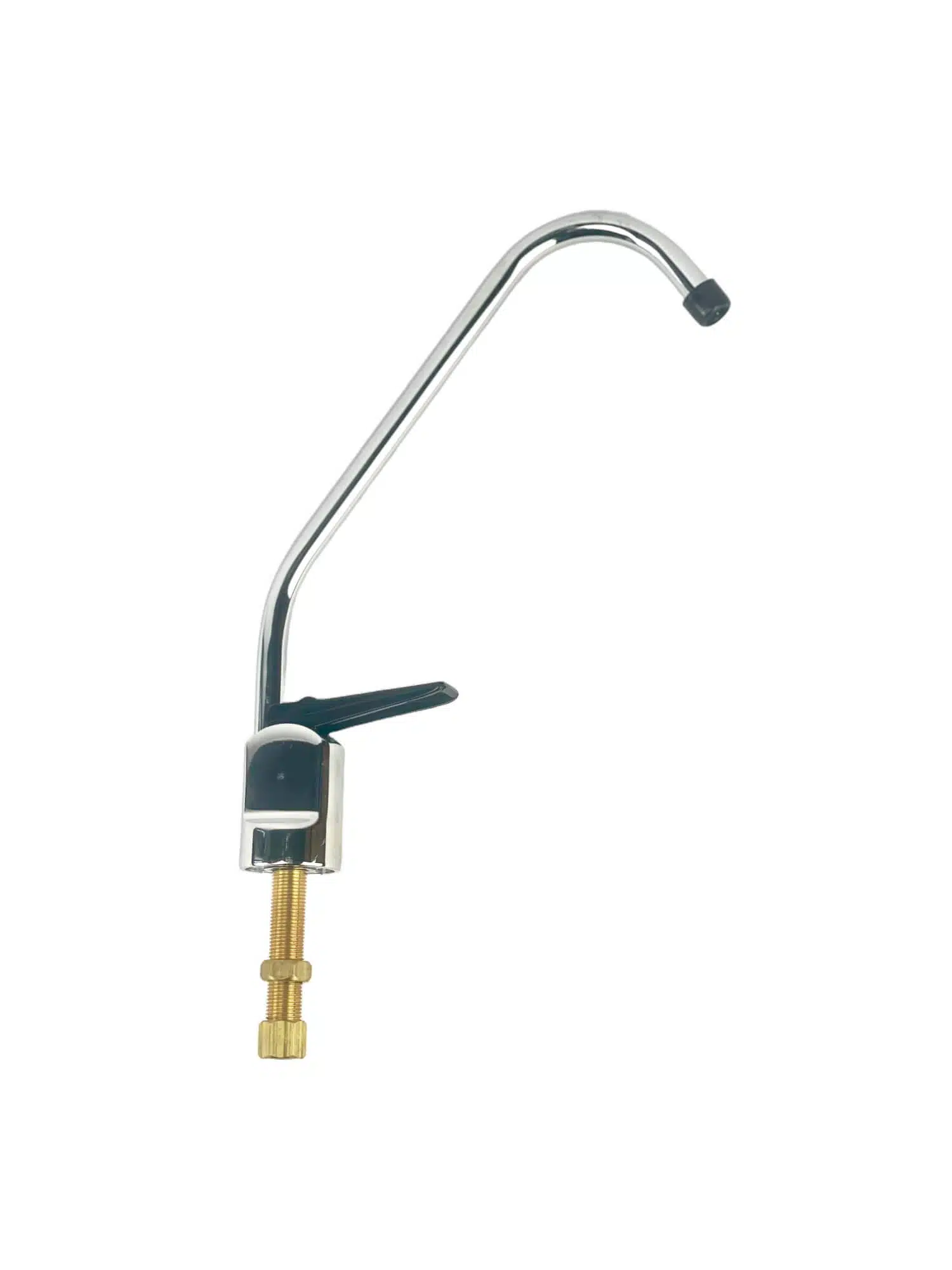

- 1 x Sink Tap (if selected)
The Omnipure Twin Caravan Kit is designed to work with 12mm tubing. This type of tubing is commonly found in Australian caravans. If you have a different type of tubing in your caravan, contact us and we will help you find the right fittings.

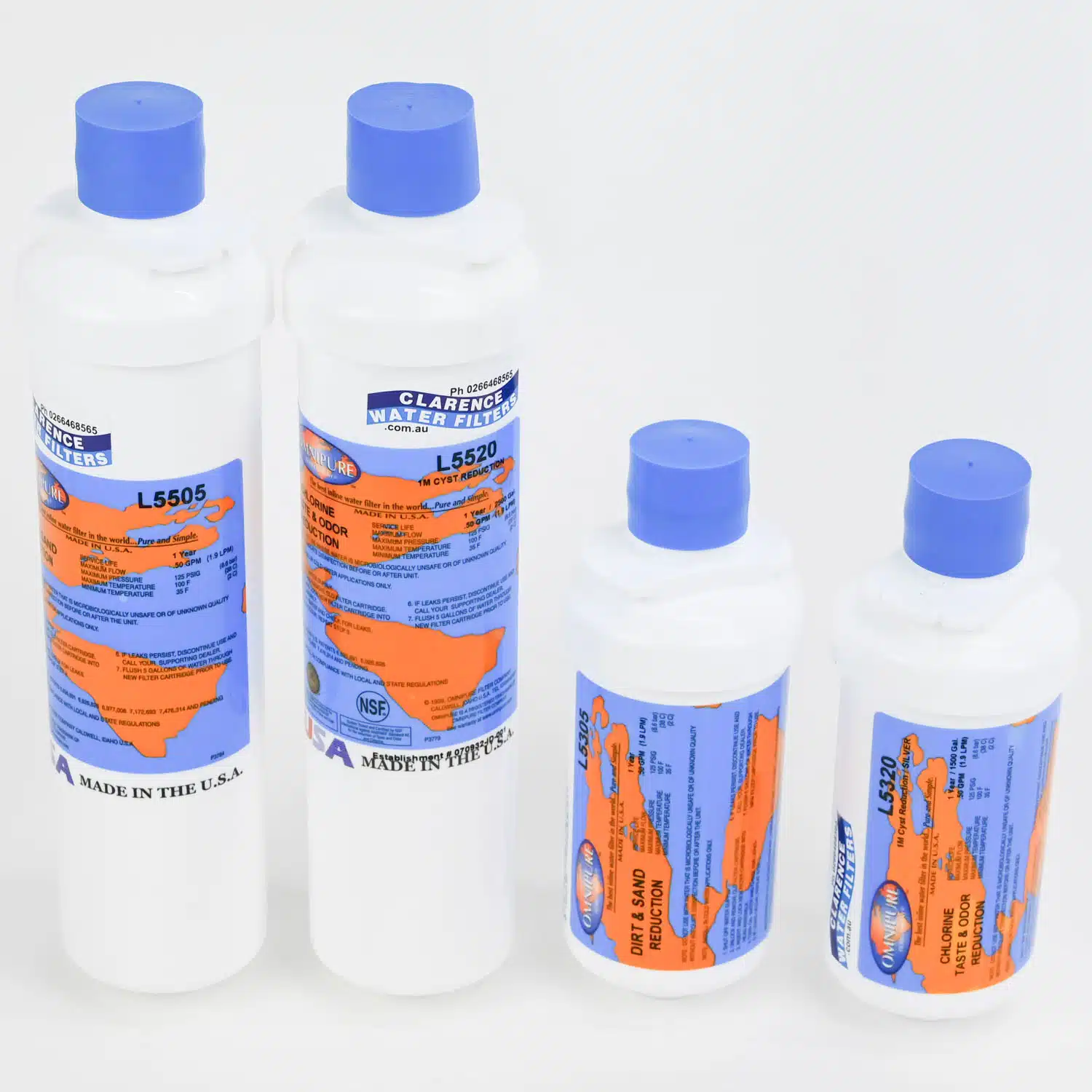

Filter Options
Option 1: L5305 and L5320
Stage 1 – L5305 5 micron sediment filter, made in the USA, Maximum Pressure: 125psi, 175mm x 62mm
Stage 2 – L5320 1 micron carbon filter, made in USA, Maximum Pressure: 125psi, Reduces sediment, chlorine, chemicals, bad tastes & odours, cysts, giardia, cryptosporidium, etc… 175mm x 62mm
Height of system with filters installed 210mm and requires an extra 25mm minimum to remove filters.
Recommended to replace filters every 12 months.
Option 2: L5505 and L5520
Stage 1 – L5505 5 micron sediment filter, made in USA, Maximum Pressure: 125psi, 285mm x 62mm
Stage 2 – L5520 1 micron carbon filter, made in USA, Maximum Pressure: 125psi, Reduces sediment, chlorine, chemicals, bad tastes & odours, cysts, giardia, cryptosporidium, etc.. 285mm x 62mm
Height of system with filters installed 315mm and requires an extra 25mm minimum to remove filters.
Recommended to replace filters every 12 months.
Operation Tips
Instructions are included with the system to make installation a breeze.
All you will need to do is cut into the 12 mm cold water line which feeds your existing tap, insert the tee piece, then install the filter.
Find a great location for your tap then run 1/4″ tubing into the outlet of the filter.
The L-Series filter housings and fillings have been rested for performance under NSF Standard 42. Tests included Hydrostatic Testing at 300 psig and Cycle Testing of 100.000 Repetitions from 1 to 150 psig. Complete test results are available from OMNIPURE. Omnipure products have been tested and listed under Standard 42 for taste, odor and chlorine reduction. or particulate reduction. or have been materials certified. All filters should be installed on cold water lines only.
Activated Carbon Filters are not intended to be used where the water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or alter the unit.
