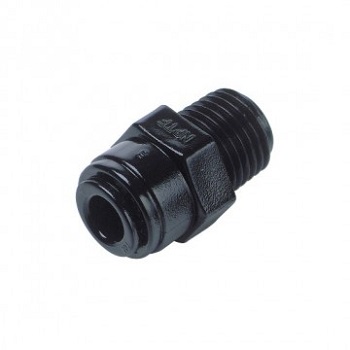

3/8″ Bsp Male Thread to 10mm Tubing Adaptor AMC1006M

Description

Quick connect straight 10mm OD tubing (will not fit standard 3/8″ imperial tubing) to 3/8″ Bsp male thread 3/8″ Bsp = 15mm

These fittings are easy to use, simply push the tubing all the way in then pull on the tubing to lock for a high water pressure sealed connection.

PI011203S, AMCBT0606

Thread Type and Size Chart

BSP size (British Standard Pipe)

                        Actual Diameter Imperial        Actual Diameter Metric

1/8” BSP               0.35 inch                                     9 mm

1/4” BSP               1/2 inch                                      12 mm

3/8” BSP               6/10 inch                                    15 mm

1/2” BSP               3/4 inch                                      19 mm

3/4″ BSP               1 inch                                          25 mm

1”  BSP                  1 & 1/4 inch                               31 mm

1 & 1/4″ BSP        1 & 2/3 inch                                40 mm

1 & 1/2″ BSP        1 & 3/4 inch                                45 mm

2”  BSP                  2 & 1/4  inch                             57 mm

UNS size (Unified National Special)

                        Actual Diameter Imperial        Actual Diameter Metric

7/16” UNS             0.4375”                                     11 mm
