Description
The CWF-X100 is a direct replacement for the FSI-X100 416669B Industrial Bag Filter Housing
Please note: The original PALL FSI X-100 416669B Industrial Bag Filter Housings have now been discontinued. Filter bags and gaskets are still available.
Our replacement baskets suit both the CWF and the FSI housing
There are two housing replacement options available, the CWF-x100 and the CWF-X100-HD. Both housings are comparable with the original X100 in terms of quality, but have modified designs.

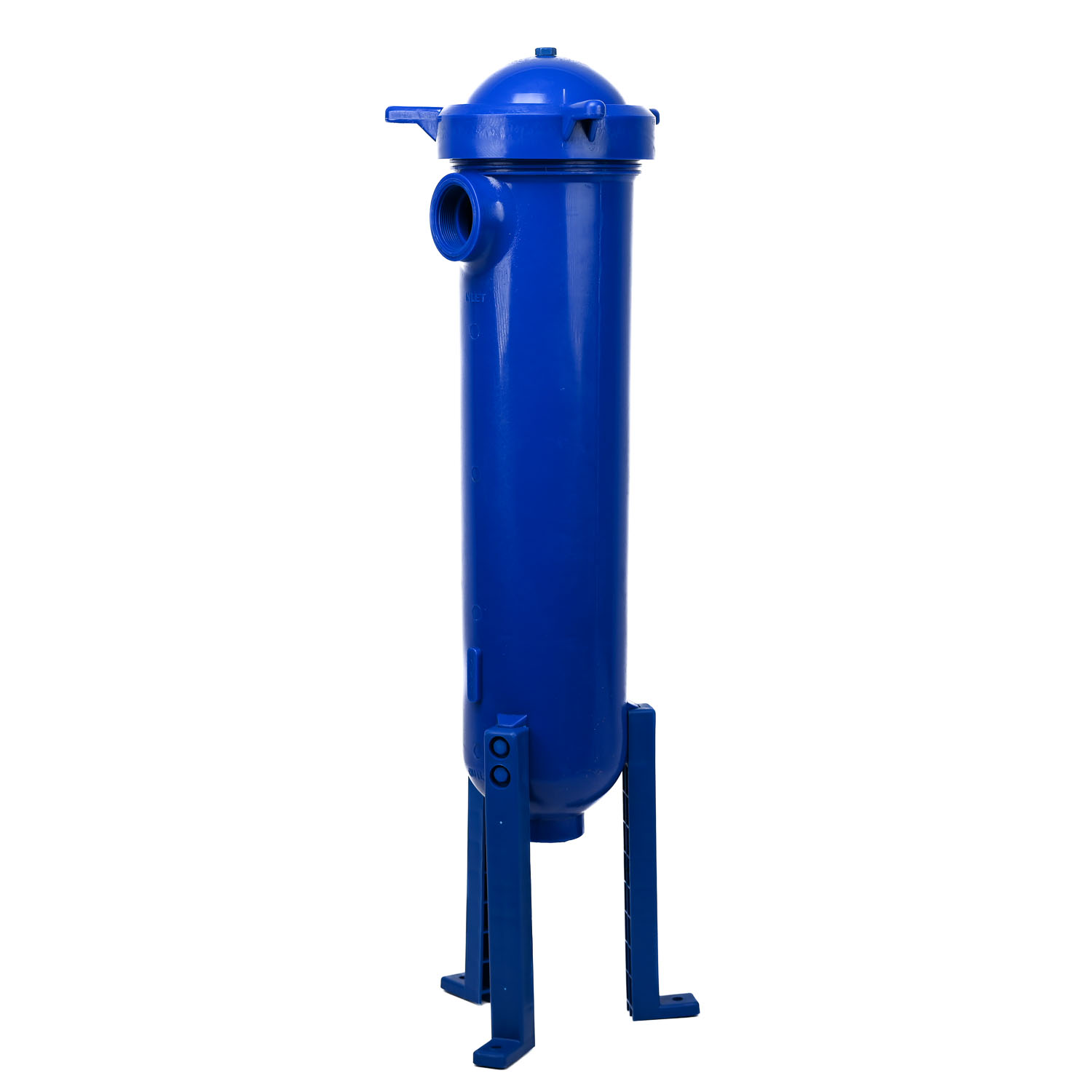

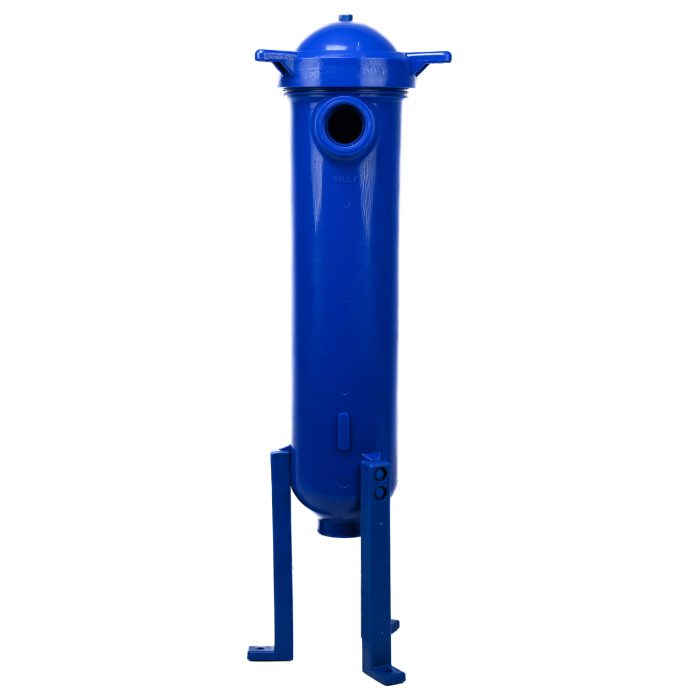

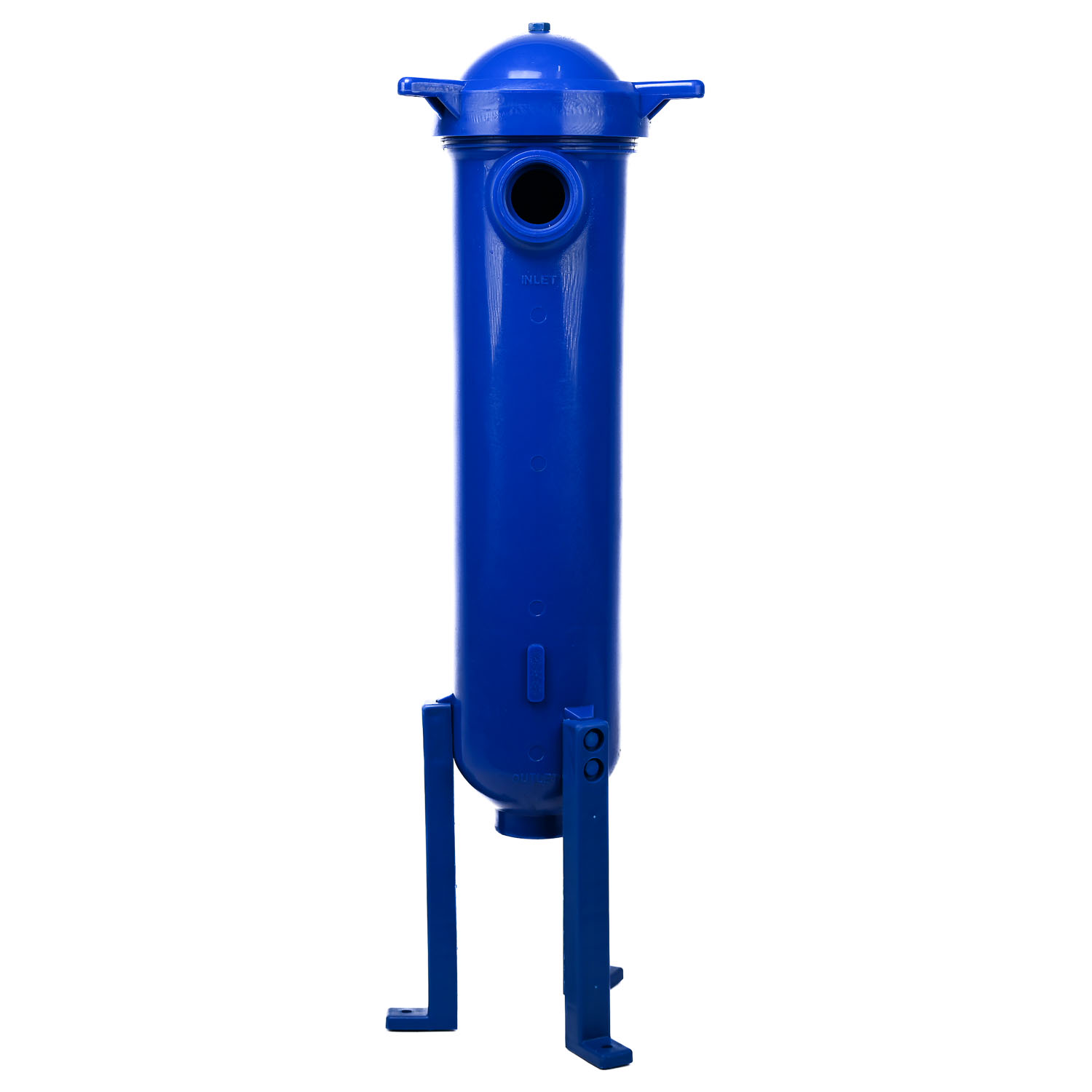

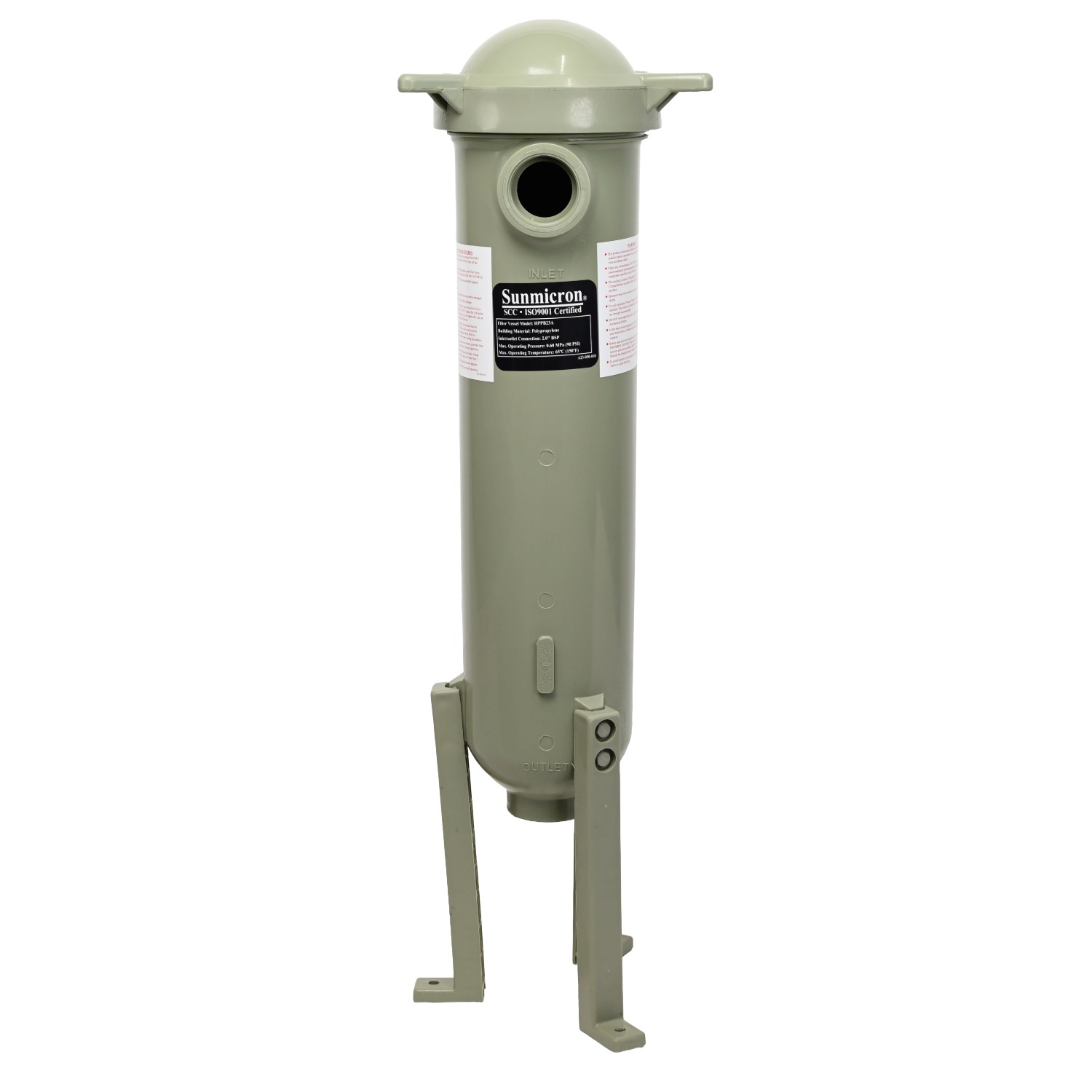

Option 1: CWF-X100 Bag Filter Housing
- X-100 size 5 bag housing made from 100% Polypropylene
- UV inhibitor for all weather durability
- Resistant to a wide range of chemicals and applications
- Recommended operating pressure 87 PSI (600 kPa) @ Max 80 degrees Celsius. PLV is recommend if above 600 kPa
- CE Certified Design operating temperature 43 degrees Celsius @ operating pressure of 100 PSI
- Bag housings have the inlet on the side and outlet at the bottom.
- 2” BSP Female threaded ports.

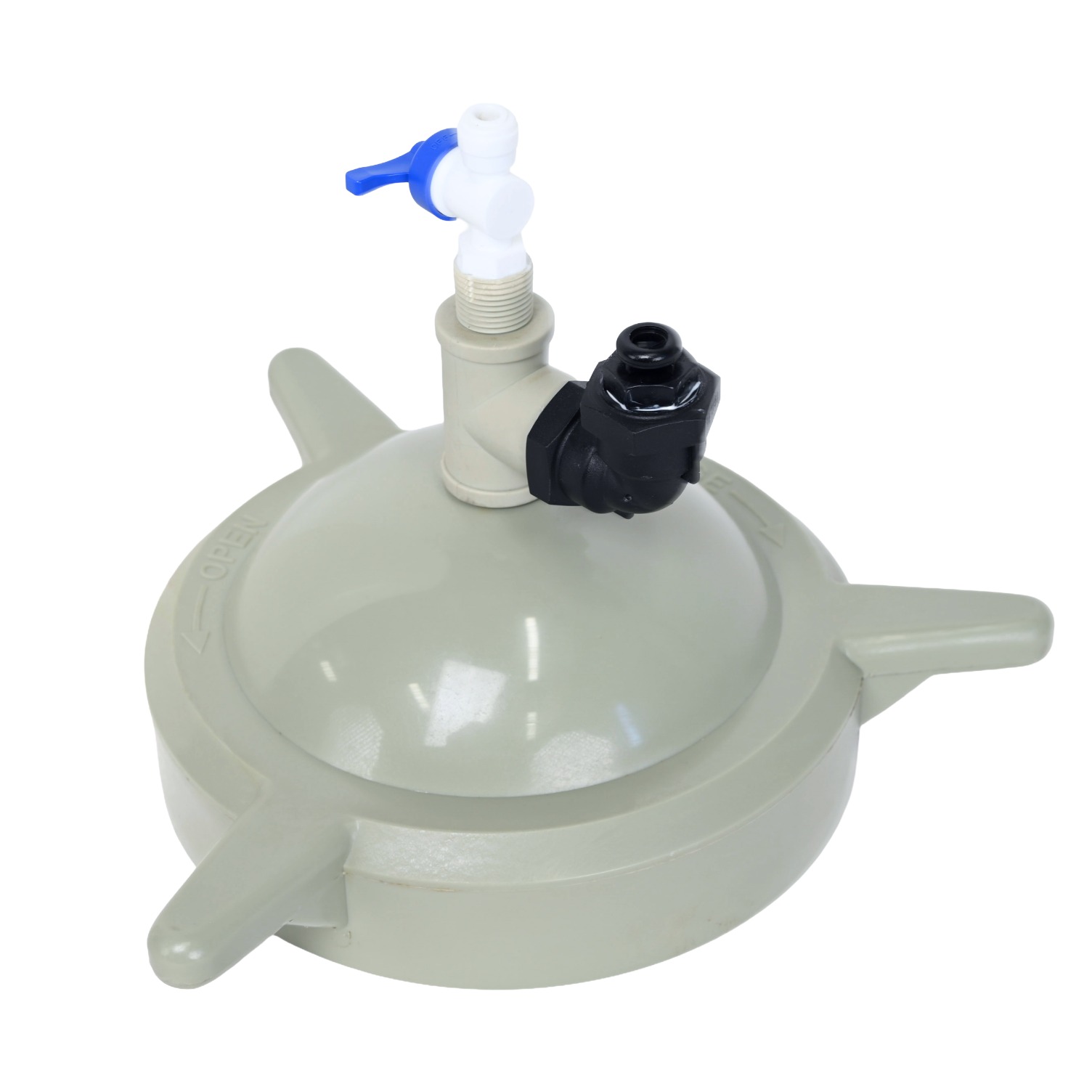

- ¼” BSP Female port with plug in top cap to allow for a pressure gauge to be fitted.

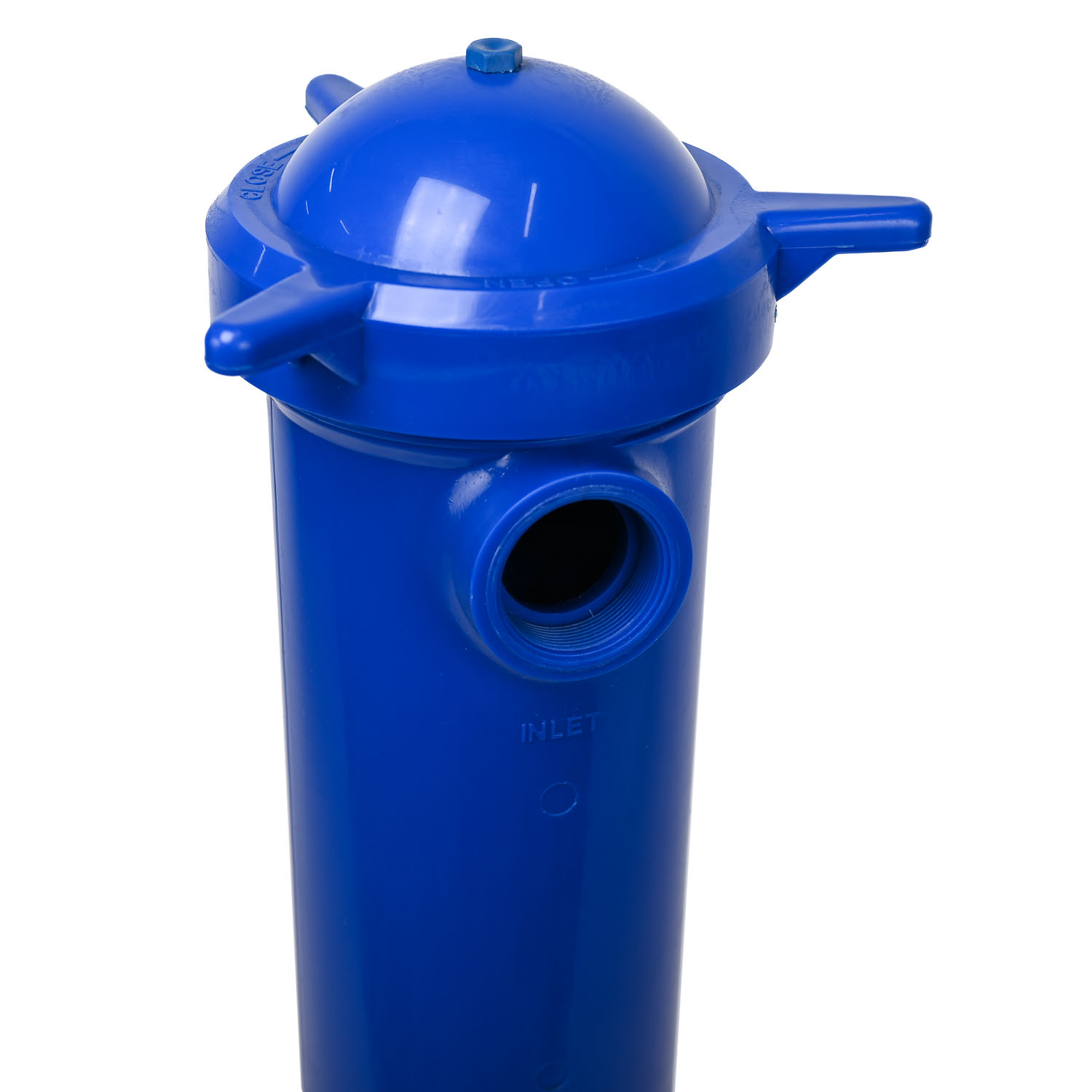

- The specially designed twist off lid allows for easy bag replacement without the need for any tools.
- Maximum flow rate 200 LPM depending on micron rating of bag used
- Dimensions including base stand 950mm high x 290mm wide.
Click the following link for a schematic of CWF-X100 bag housing CWF-X100 bag housing Drawing

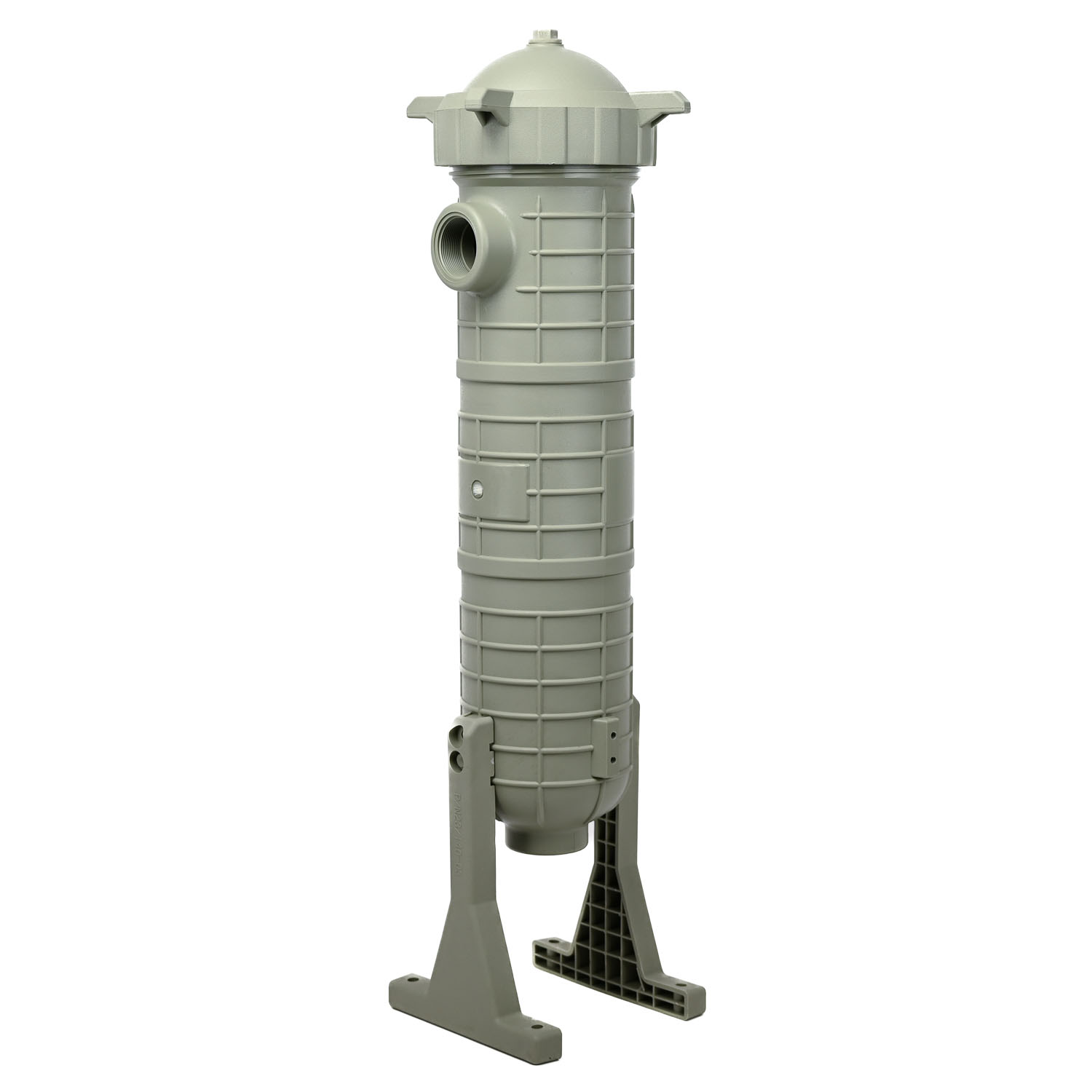

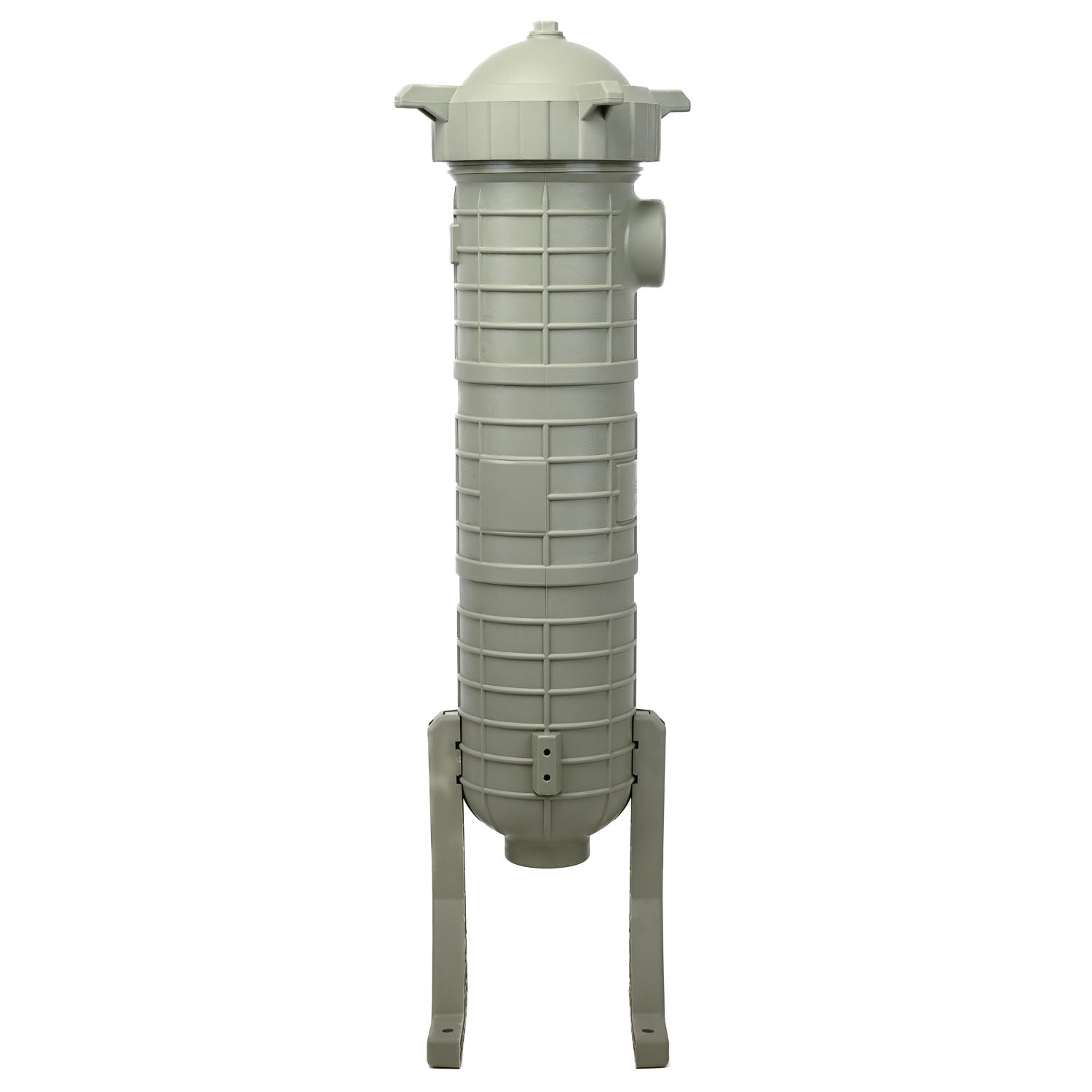

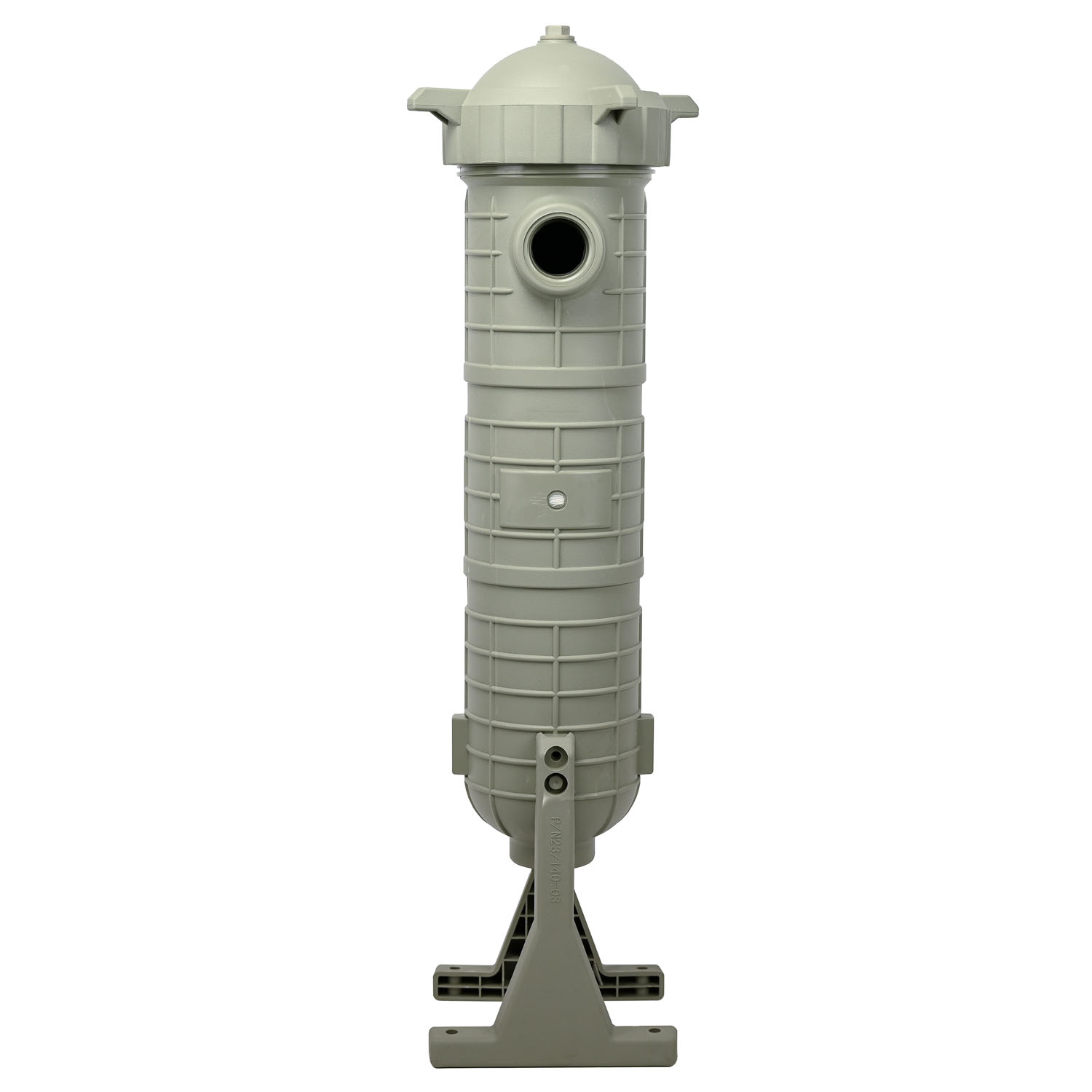

Option 2: CWF-X100-HD Bag Filter Housing (Grey)
- X-100 size 5 bag housing made from 100% Polypropylene
- UV inhibitor for all weather durability
- Resistant to a wide range of chemicals and applications
- Ribbing for additional strength
- Recommended operating pressure 87 PSI (600 kPa) @ Max 80 degrees Celsius. PLV is recommend if above 600 kPa
- 300 litres per minute maximum flow rate (18 m3/hr)
- 2″ Female BSP Inlet/Outlet connections

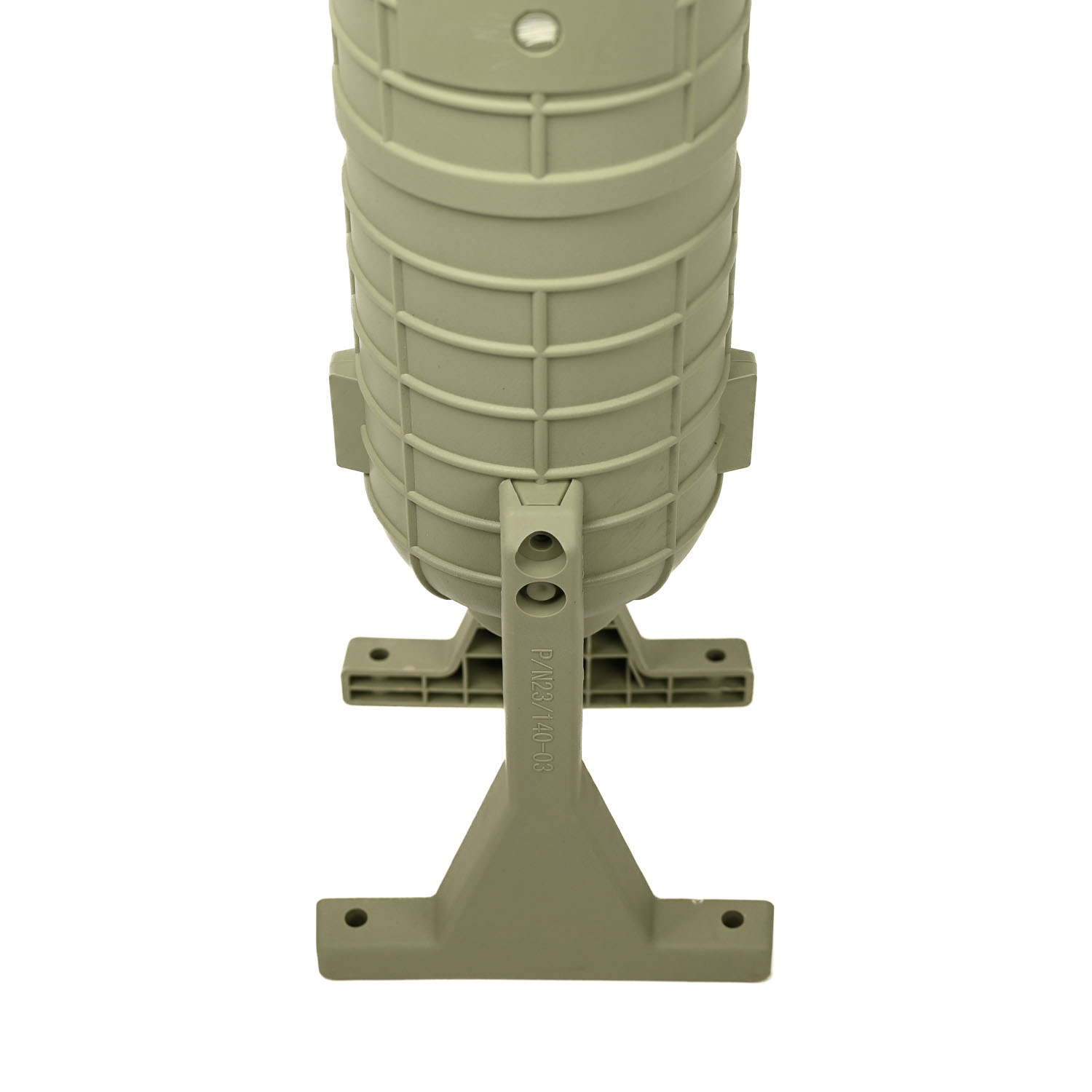

- Two mounting legs with 4 screw holes for additional stability
- Pressure rated to 600kpa (6 bar)

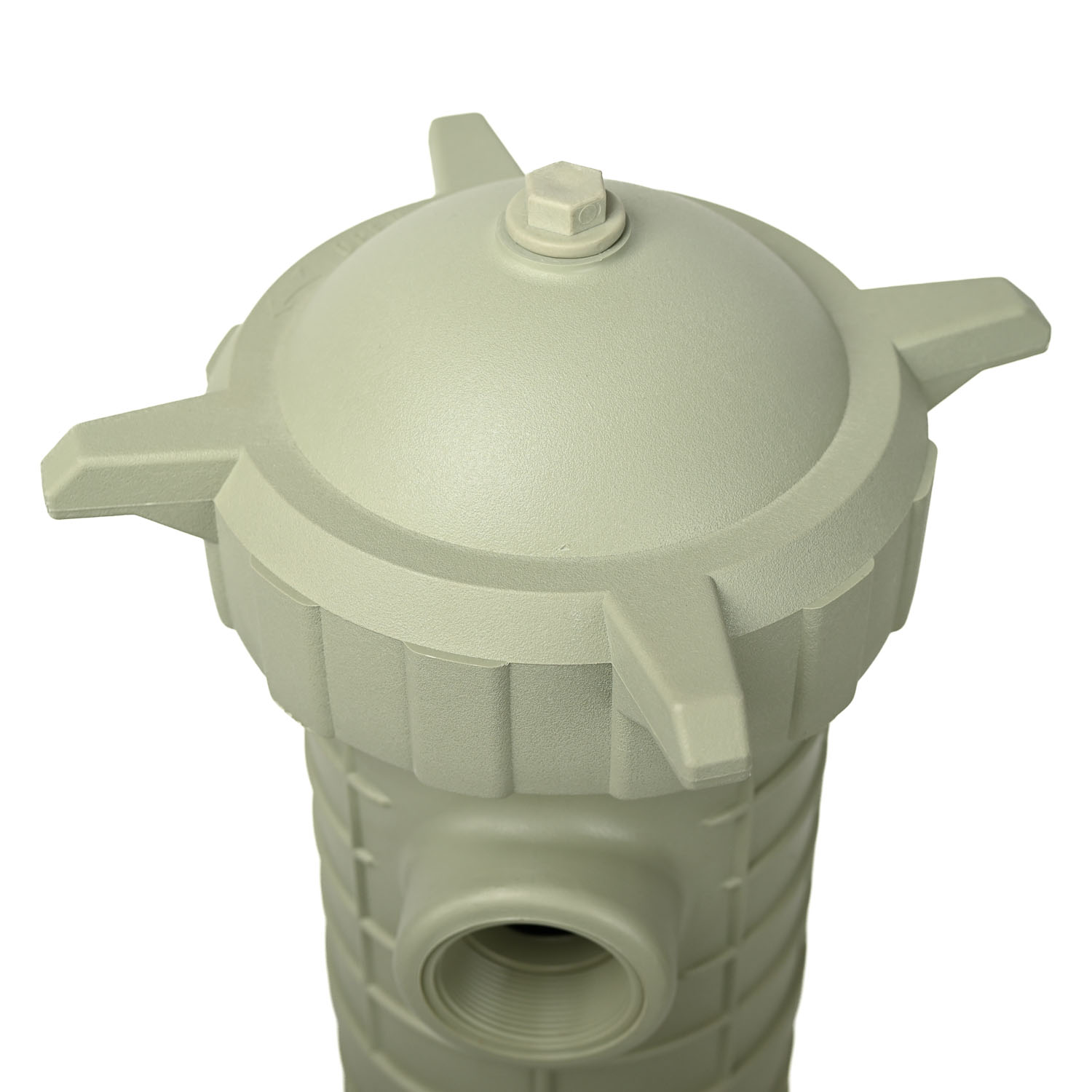

- 1/4″ Female gauge port on top of housing
CWF-X100 Bag Filter – What’s In The Box?
Housing kit includes:
- CWF-X100 housing with lid
- Gasket
- Internal bag basket
- Housing base legs
- 1/4″ bsp plug for top cap.
X-100 filter bags are available in a range of micron ratings.
X100 Bag Filter Housing – Replacement Parts

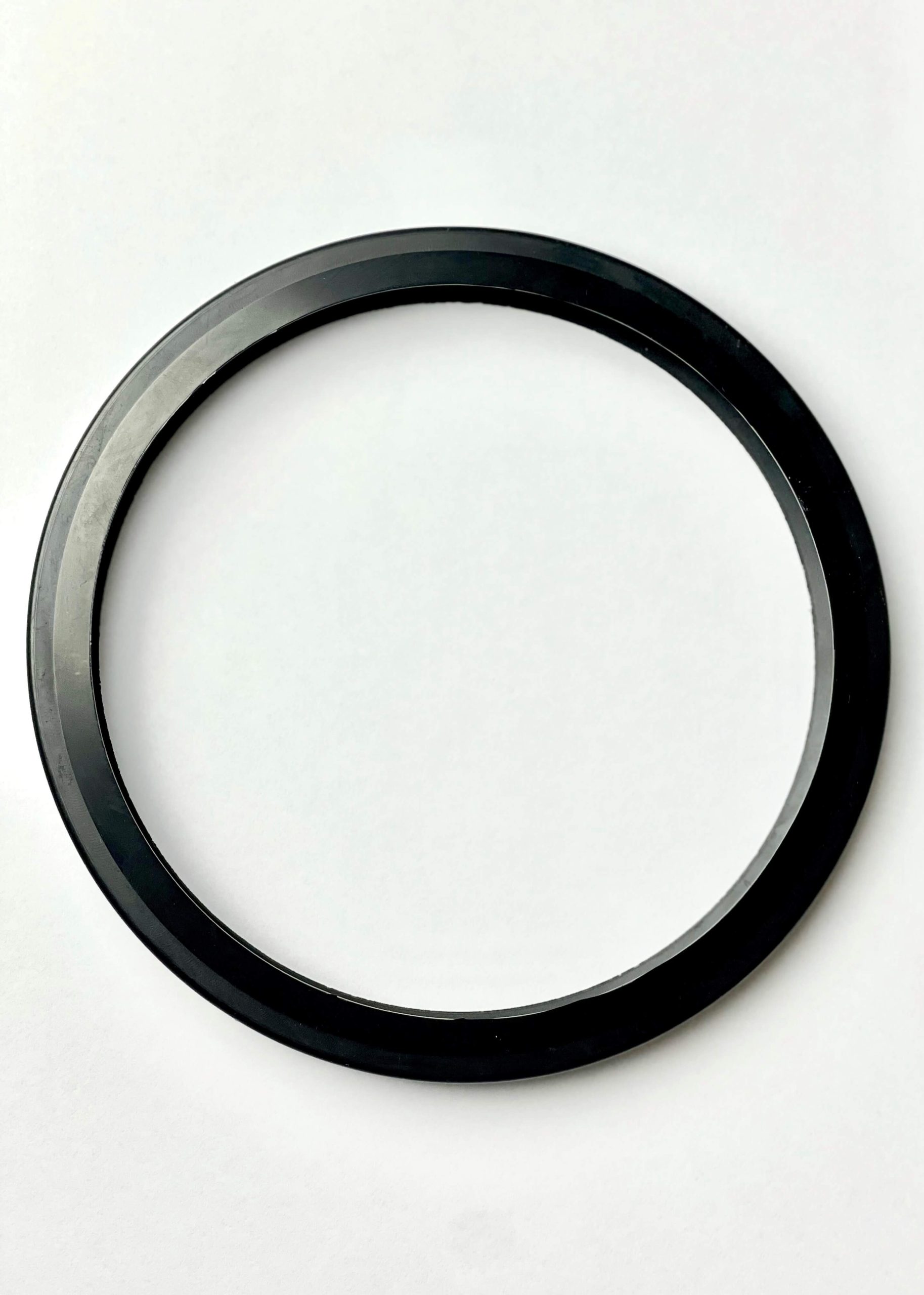

The CWF-X100 Replacement seal is the CWF-X100 Gasket
The Pall FSI X100 Replacement seal is the X100B Buna-Oring

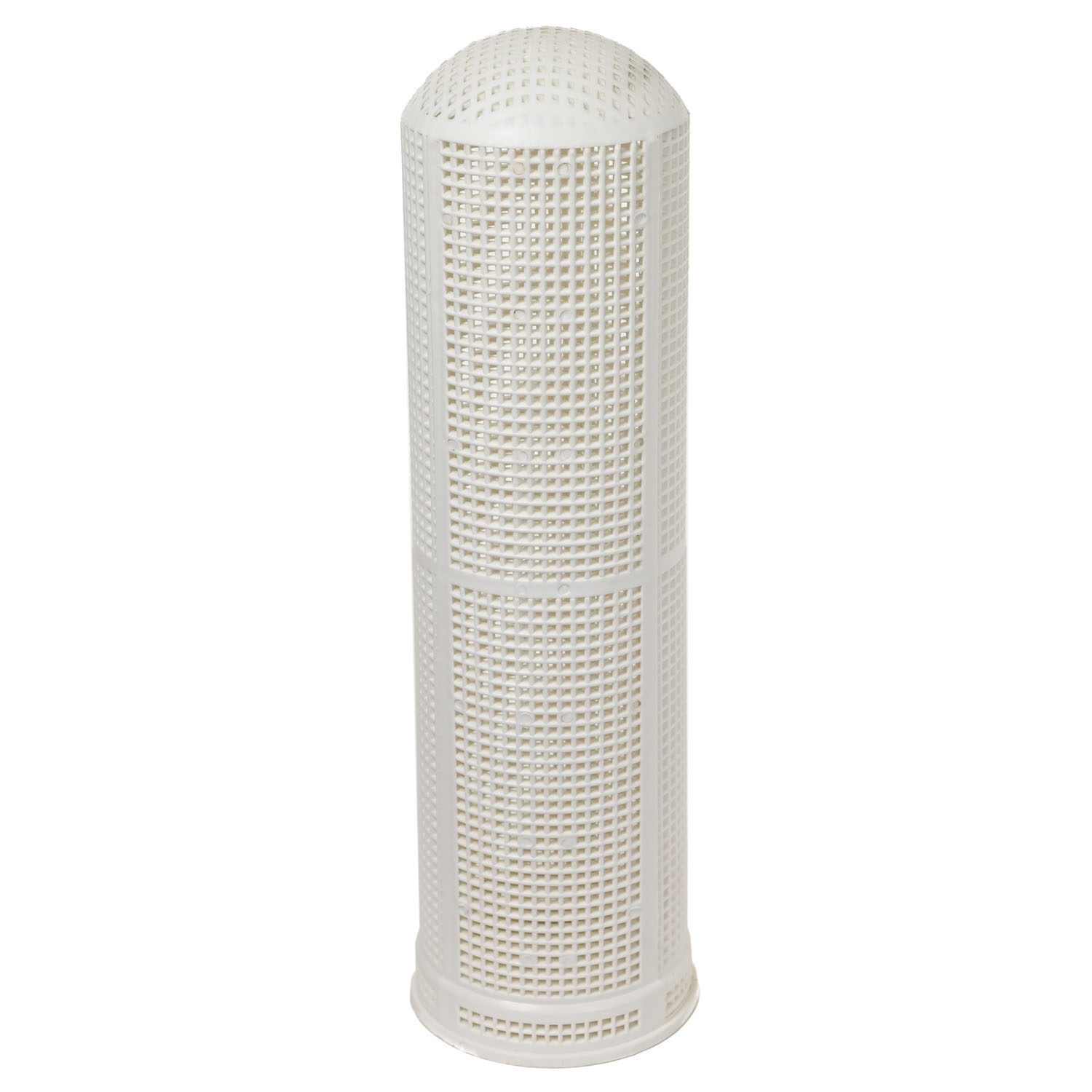

X100 internal basket is universal and will fit both CWF-X100 and FSI X100 housings
