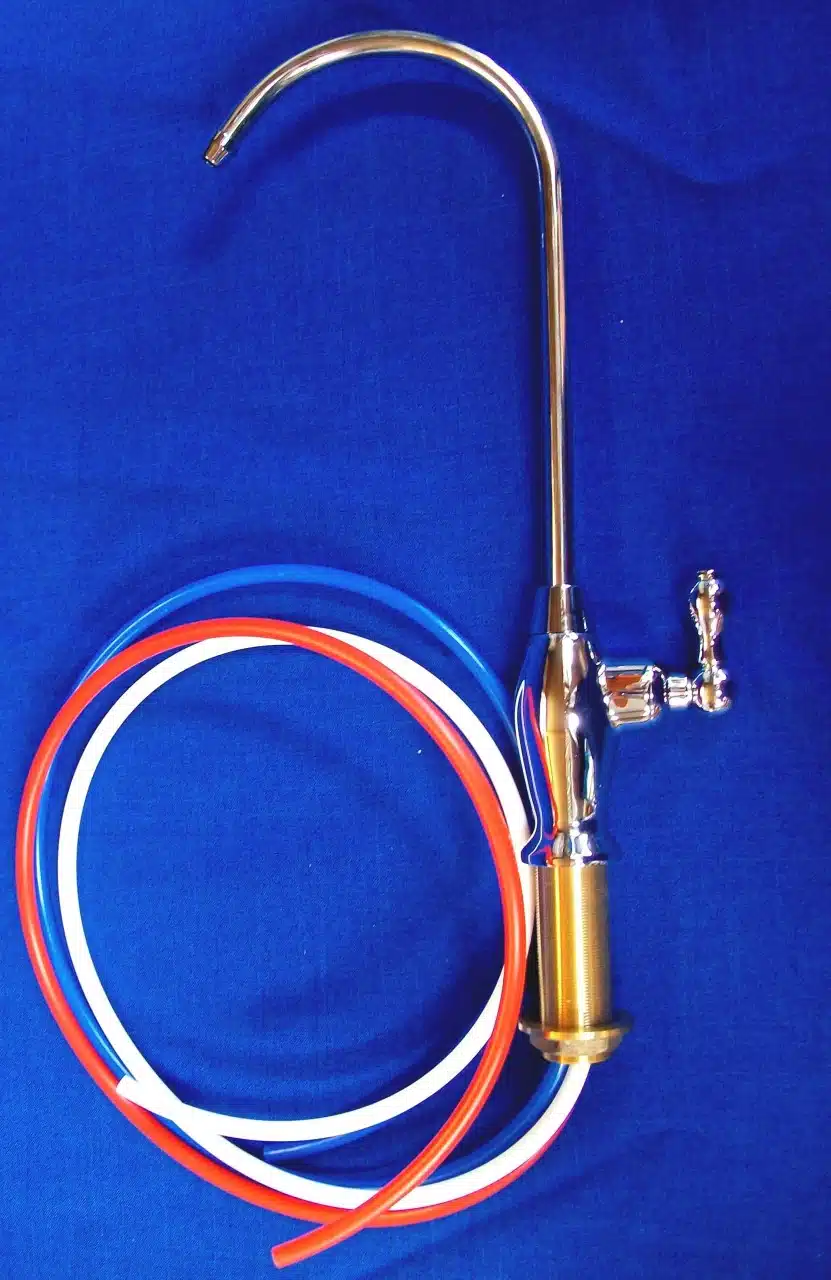

Replacement water filter vent tap can substitute many brands of vented taps.
Quality drinking water tap ideal to up grade your old filter tap or use on a new installation.
Easy to install as it only needs a 25mm hole drilled in the sink and has a long thread for thick bench tops.
Height from sink to top is 240mm.
Comes with seals, locking nut & washers and 1/4″ plastic tubing.
These taps have three 1/4″ tubes coming out from the bottom, water supply line, system inlet water, system outlet water to tap.
The following tube connections are available in the options.
(Option A) No Tube Fittings
(Option B) 3 x 1/4″ Tube Joiners. For connecting straight onto 1/4″ tubing.
(Option C) 2 x 3/8″ & 1 x 5/16″ Tube Joiners. For Connecting onto Amway Espring under sink systems.
(Option D) 3 x 3/8″ Tube Connections. For connecting straight onto 3/8″ tubing and used on older Amway under sink systems E84, E85 etc..
Other fittings available by request for larger tubing or copper pipe installations.
All tubes are about 1800mm long
Red tube is the unfiltered water supply line.
Yellow tube is the filter inlet line.
Blue tube is the filter outlet line to sink tap.
