3/8″ Bsp Male Thread to 12mm Tube Fitting PM011213E AMCB1206M

Description

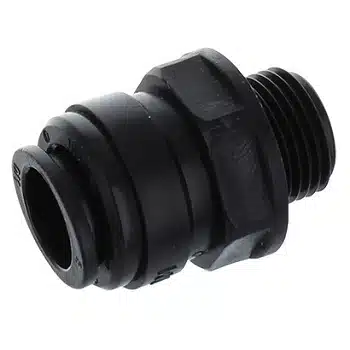

12mm OD Tube fitting to 3/8″ Bsp male thread adapter. 3/8″ Bsp = 15mm

Use with 12mm OD high pressure tubing.

Most caravans and RVs use 12mm tubing on their water supply lines and the Quick Connect Fit fittings.

PM011213E, AMCB1206M

Thread Type and Size Chart

BSP size (British Standard Pipe)

                        Actual Diameter Imperial        Actual Diameter Metric

1/8” BSP               0.35 inch                                     9 mm

1/4” BSP               1/2 inch                                      12 mm

3/8” BSP               6/10 inch                                    15 mm

1/2” BSP               3/4 inch                                      19 mm

3/4″ BSP               1 inch                                          25 mm

1”  BSP                  1 & 1/4 inch                               31 mm

1 & 1/4″ BSP        1 & 2/3 inch                                40 mm

1 & 1/2″ BSP        1 & 3/4 inch                                45 mm

2”  BSP                  2 & 1/4  inch                             57 mm

UNS size (Unified National Special)

                        Actual Diameter Imperial        Actual Diameter Metric

7/16” UNS             0.4375”                                     11 mm
