1/4″ Male NPTF or Bsp Thread to 1/4″ Tube

$2.30

Bulk Quantity Discounts
10+10%
Clear

Description

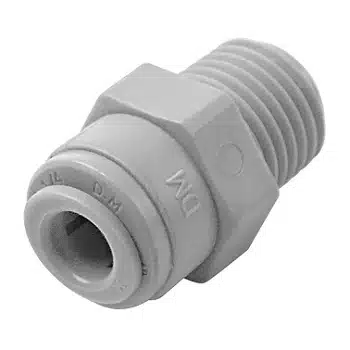

Quick connect straight  1/4″ OD tubing or copper pipe to 1/4″ male thread

1/4″ BSP = 12.7mm

1/4″ NPT = 13.7mm

NPTF thread is the most common thread used in housings with 1/4″ ports. PI01822S, AMC0404

Bsp is the standard plumbing thread used with brass fittings.  PI010802S, AMCBT0404

These fittings are easy to use, simply push the tubing all the way in then pull on the tubing to lock for a high water pressure sealed connection.

Dimensions are 25mm long by 12mm across the thread.

Simply choose the thread you need in the Product Options.

Thread Type and Size Chart

BSP size (British Standard Pipe)

                        Actual Diameter Imperial        Actual Diameter Metric

1/8” BSP               0.35 inch                                     9 mm

1/4” BSP               1/2 inch                                      12.7 mm

3/8” BSP               6/10 inch                                    15 mm

1/2” BSP               3/4 inch                                      19 mm

3/4″ BSP               1 inch                                          25 mm

1”  BSP                  1 & 1/4 inch                               31 mm

1 & 1/4″ BSP        1 & 2/3 inch                                40 mm

1 & 1/2″ BSP        1 & 3/4 inch                                45 mm

2”  BSP                  2 & 1/4  inch                             57 mm

UNS size (Unified National Special)

                        Actual Diameter Imperial        Actual Diameter Metric

7/16” UNS             0.4375”                                     11 mm
