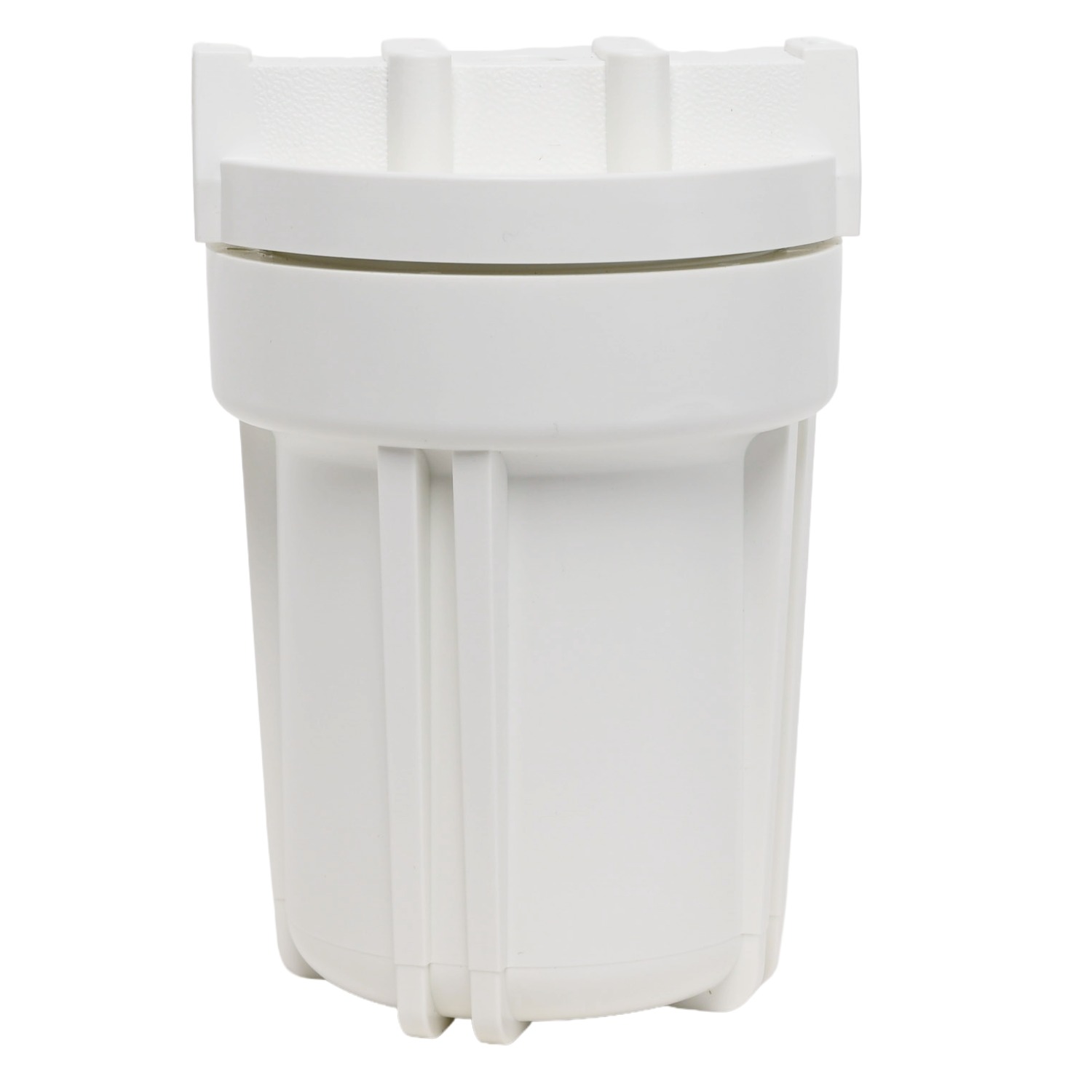

5″ Water Filter Housing 1/4″ Ports



5″ water filter housing 1/4″ Bsp ports.

The 525-1/4 housing will take the shorter 5″ x 2.5″ (125mm) Non standard water filter cartridges.

525-1/4 heavy duty housing ideal for applications where space is a problem.

Dimensions 197mmH x 130mmW with 1/4″ inlet & outlet ports.

Max temp 38 degree C

Max pressure 100psi

If used on high pressure mains water supply it’s recommended to use a pressure limiting valve before housing.

Uses the 820-A 1/4″ Housing o-ring seal

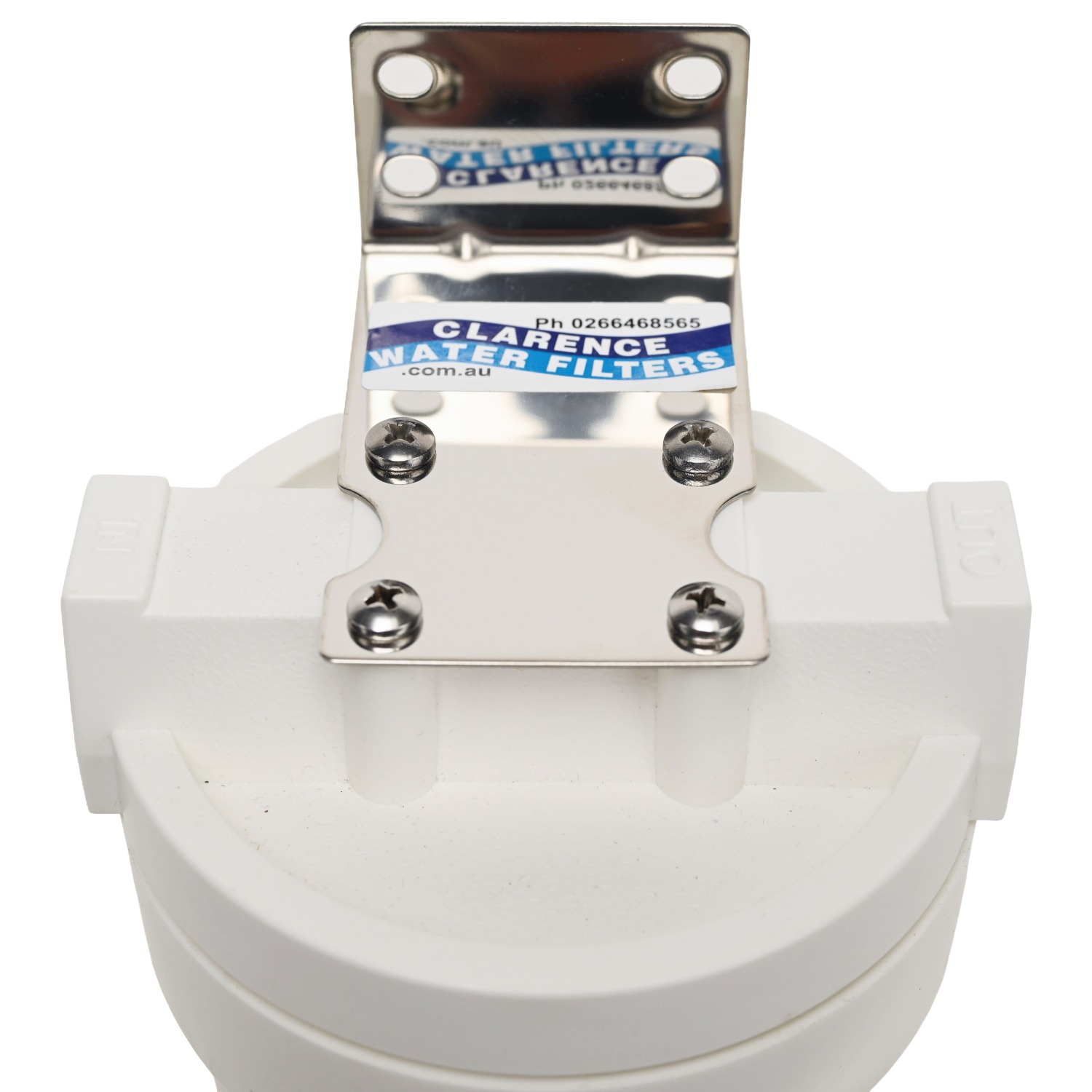

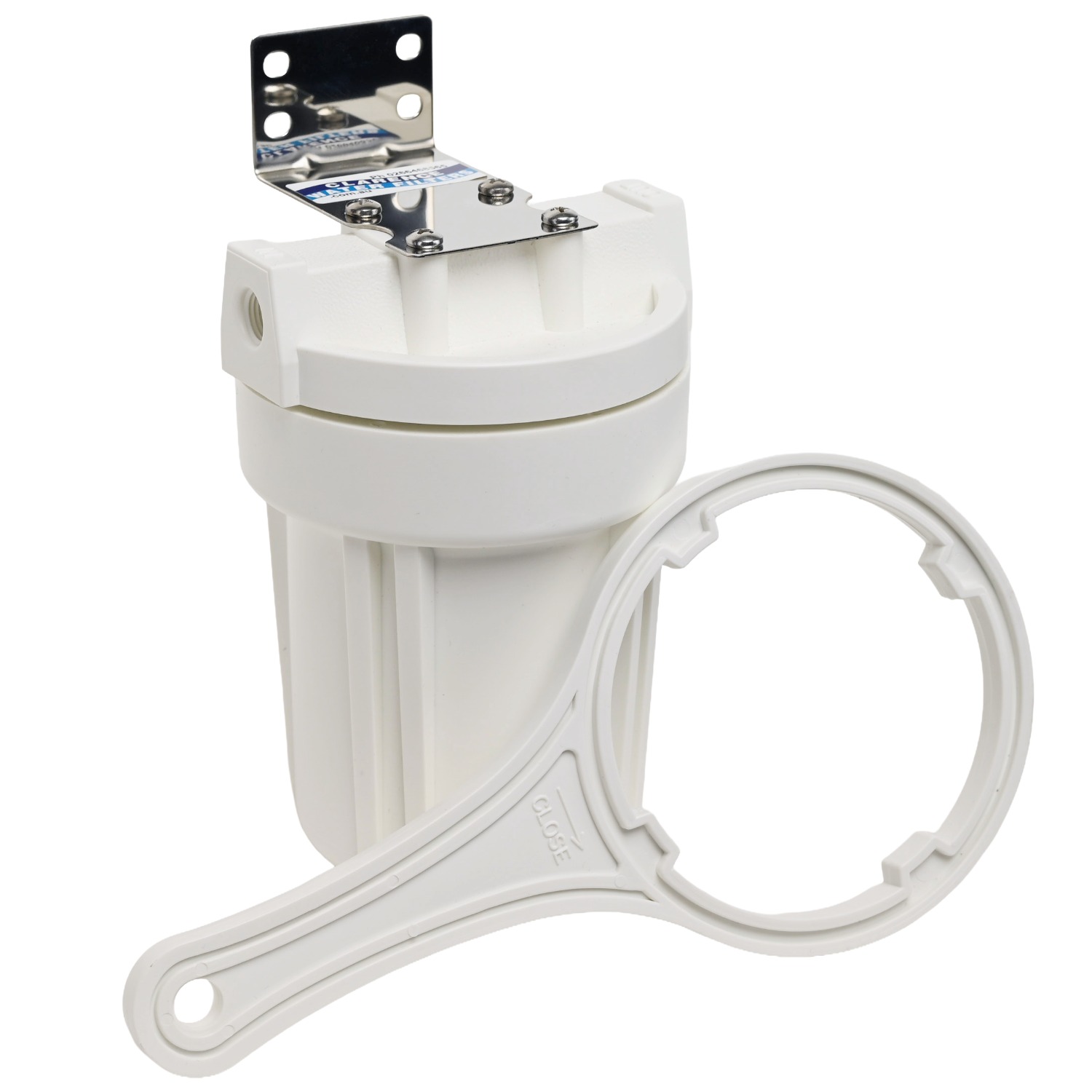

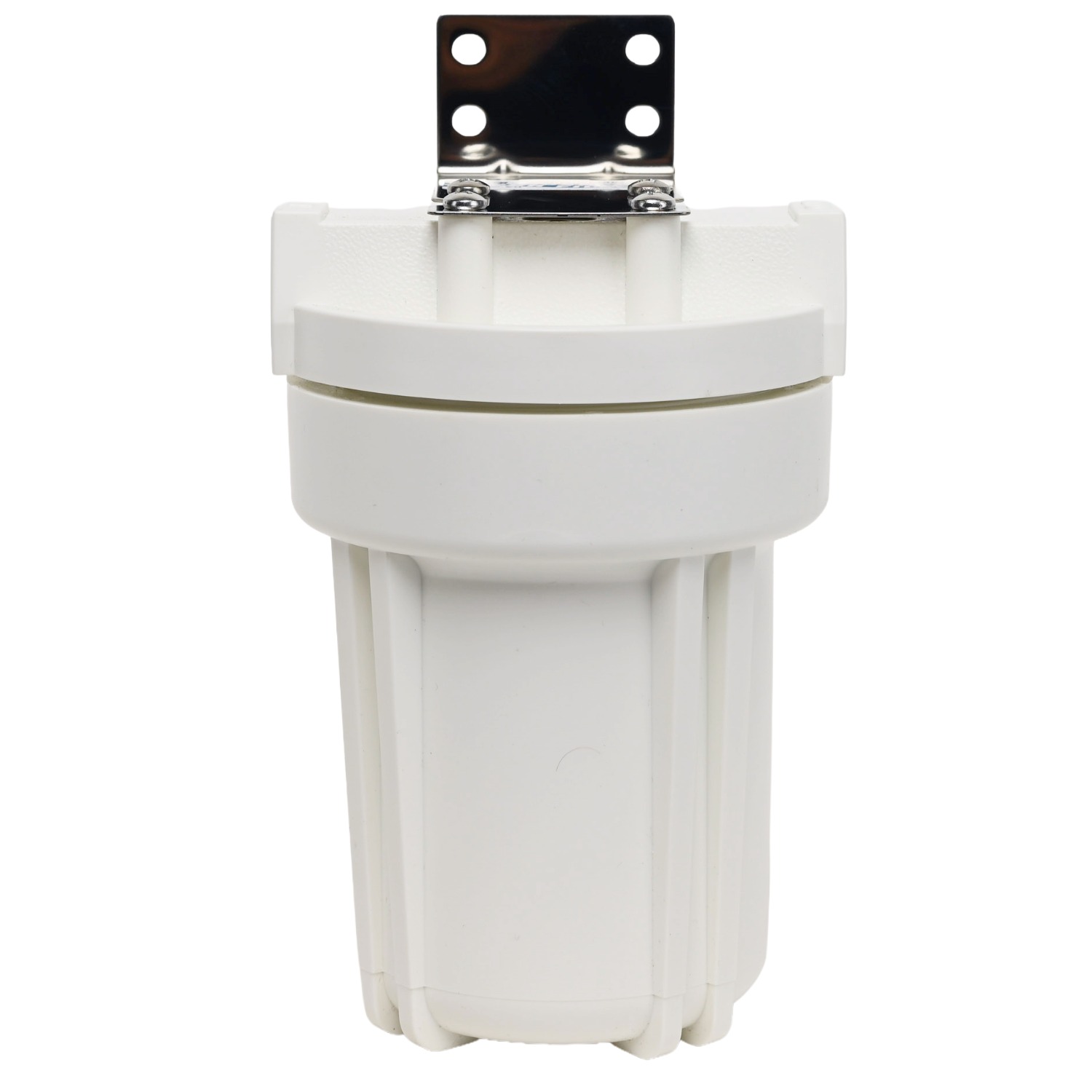

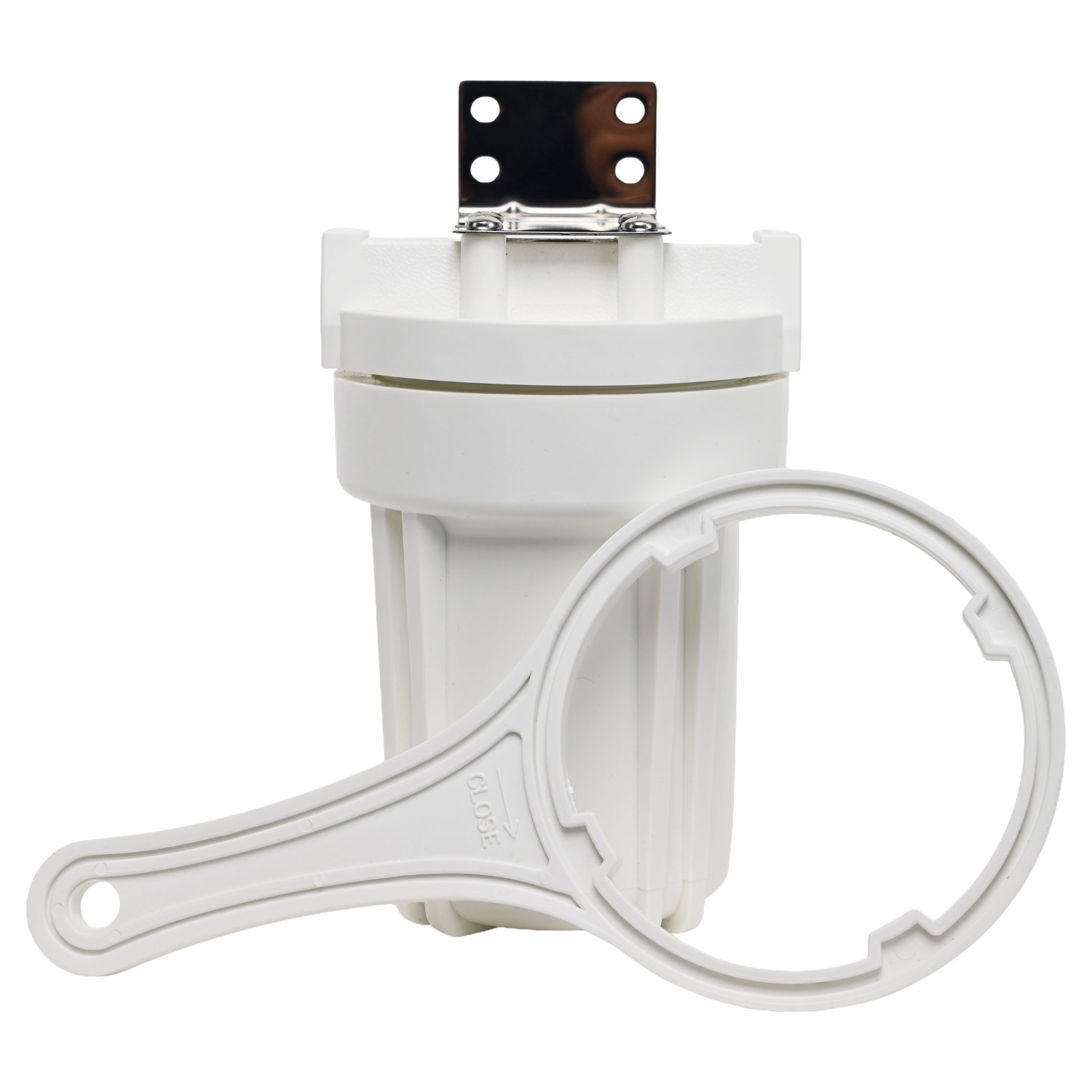

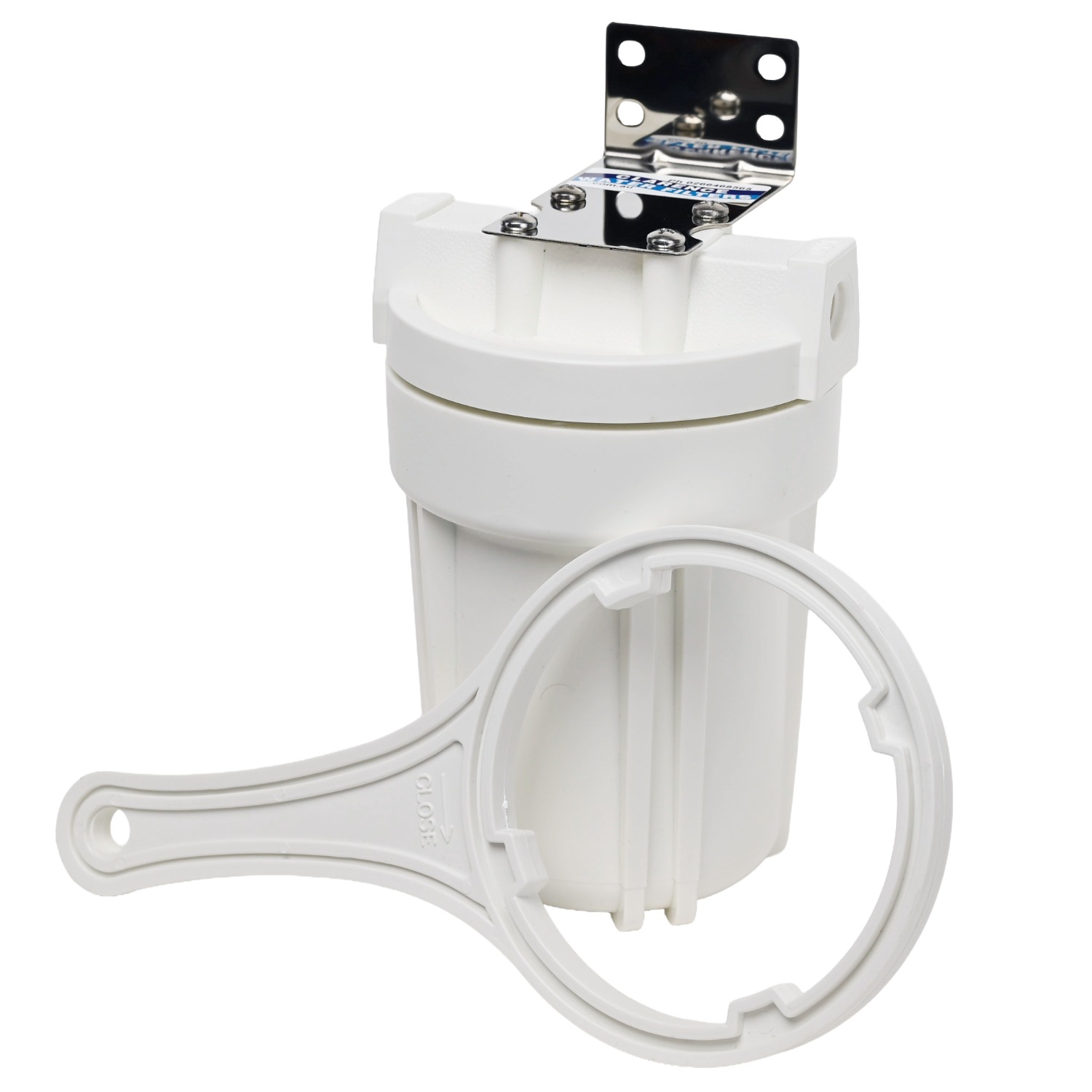

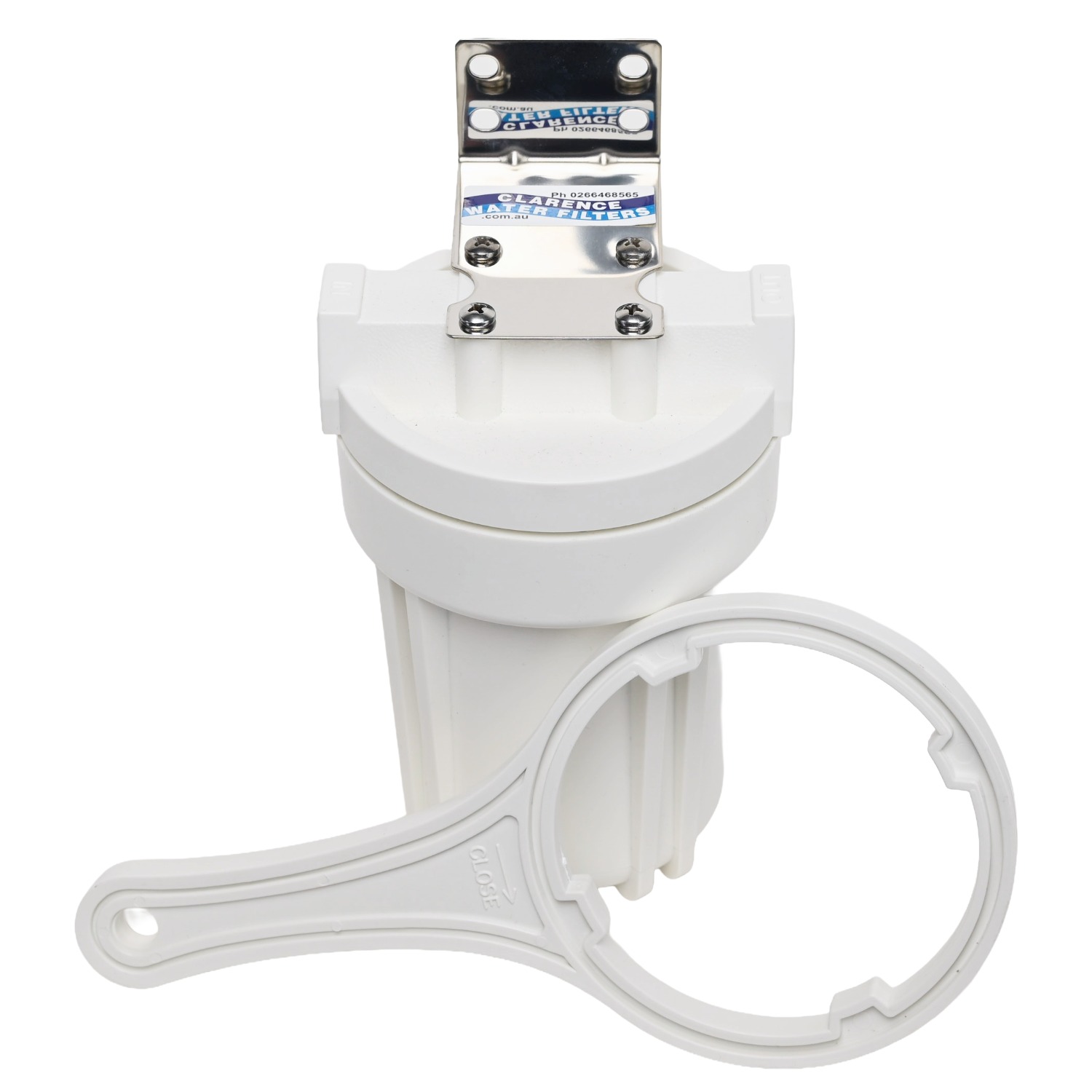

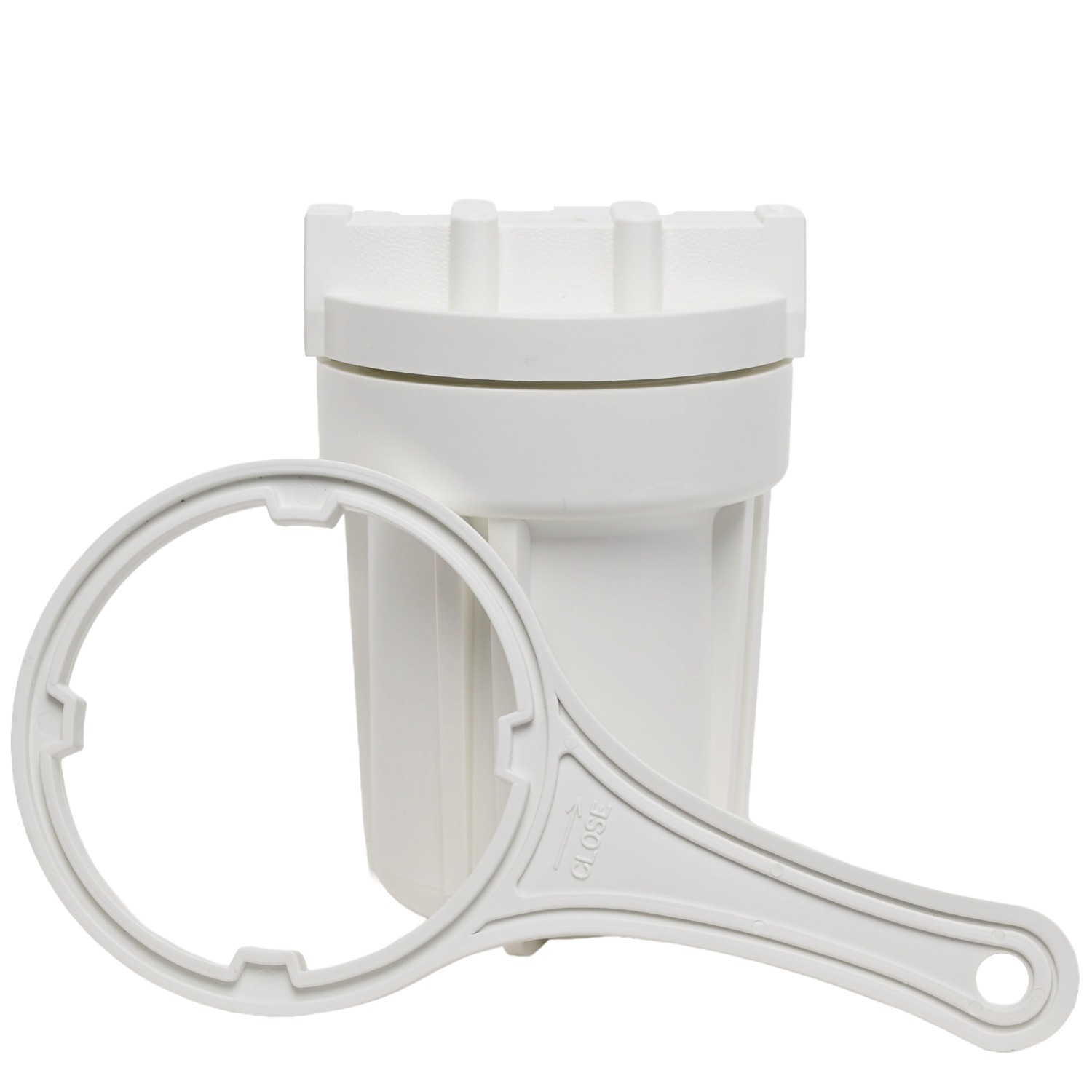

Stainless Steel Mounting Bracket with screws and Housing spanners for unscrewing the filter sump are available in the product options.
