Pentek 150356 PBH-420 BB Bag Filter Housing Kit



The Pentek 150356 PBH-420 1-1/2″ Bsp inlet and outlets.

Suitable residential, commercial, and industrial applications. The sump, cap, basket, vent plug, and drain plug are made of polypropylene for strength and resistance to chemicals and corrosion. Nitrile butadiene rubber (Buna-N) O-ring to ensure a watertight seal. The drain plug has a PVC ball valve with Buna-N seals. This housing can be used with standard 4″ x 18.5″ BB P-420 filter bags (sold separately). It has an initial pressure drop of 1 psi at a flow rate of 15 gallons per minute depending on micron rating.

Recommended service flow up to 132 Lpm with a maximum service flow of 189 Lpm depending on pressure and pipe size.

Maximum operating pressure of 90 psi, and a maximum operating temperature of 100 degrees F (37.8 degrees C). This bag vessel assembly is for use in various applications, including residential drinking water purification, food service, and industrial chemical filtration etc..

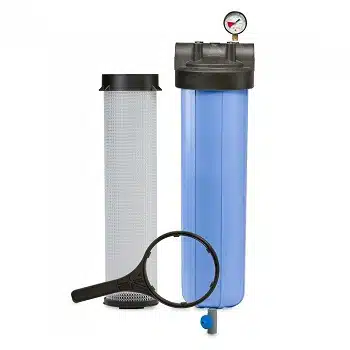

Our kit include

Pentek 150356 PBH-420-1.5 bag vessel assembly

Stainless Steel mounting bracket and screws.

Pressure gauge to indicate when the bag filter needs replacing.

3/8” Drain valve, blanking plug is also included.

Housing spanner

Not: Filter bags are not included with the housing and are sold separately.

BP-420 Felt bags available in 1, 5, 10 and 25 microns.

BP-480-NY Washable Nylon mesh bags available in 50, 100, 200 and 300 microns.

Dimensions including bracket and drain valve 790mm high x 205mm deep
