20″ Big Blue Single High Flow Rate Water Filter Housing

$130.20$215.20

Description

Large 20″ x 4.5″ filter housing available with 1″ Female Bsp inlet & outlets suits 20″ x 4.5″ filters.

Ideal for Whole of house, Pumps, Tanks etc. or any where a high flow rate is required eg. house, rural or commercial applications.

Larger filters can be used which have a bigger capacity and longer service life compared to standard size filter housings.

A range of filters are available for every situation.

Takes 20″ x 4.5″ filters.

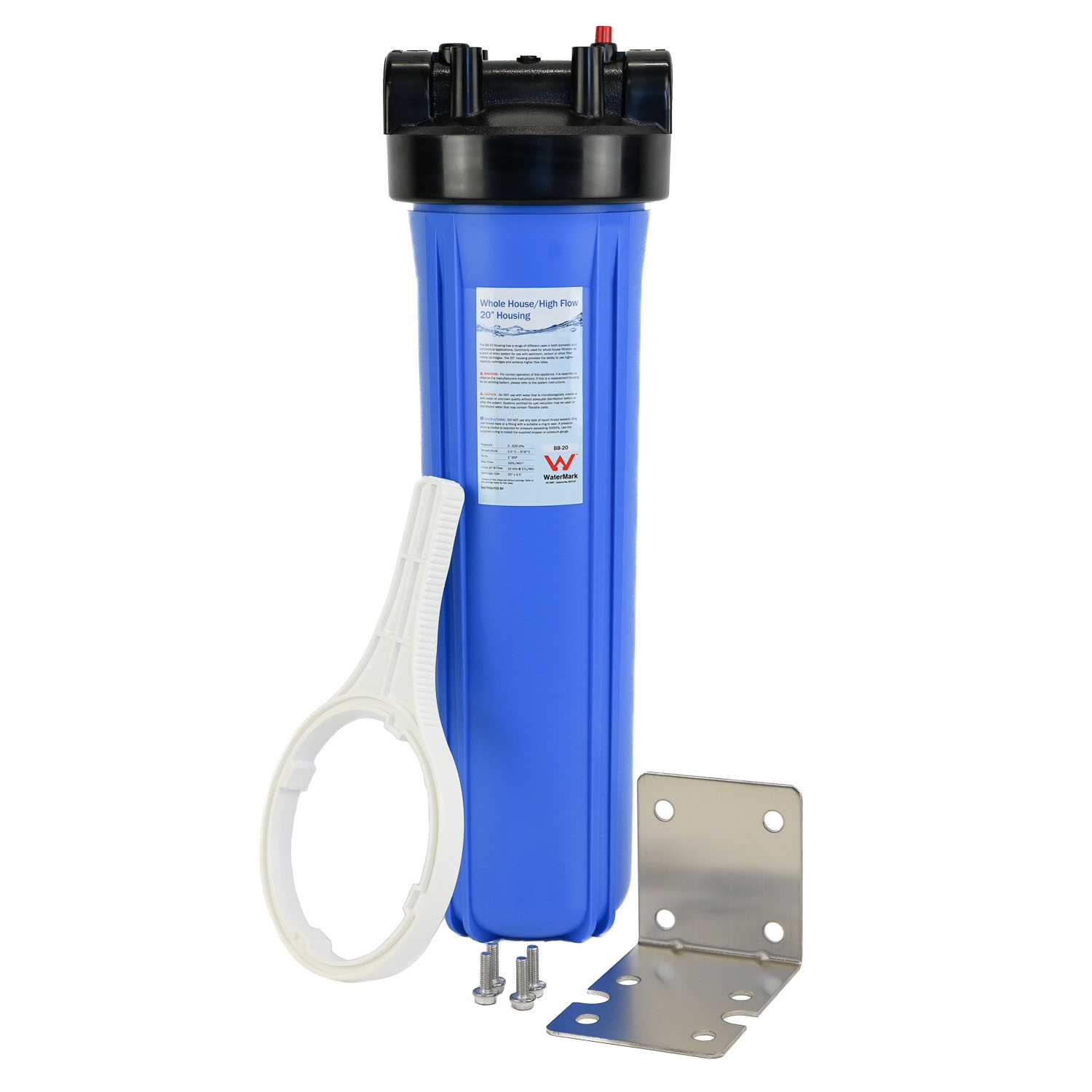

Kits include 20″ x 4.5″ housing with a stainless Steel mounting bracket & screws and a plastic housing sump spanner.

Housing only option is also available.

Specifications:

  • Flow rate: Up to 170 Lpm depending on filter used and water pressure & flow.
  • Dimensions: 610mm high without bracket x 185mm wide.
  • Max pressure:  620 kpa
  • A PLV pressure limiting valve is recommended on high water pressure supplies where pressure may exceed 550kpa.
  • AS/NZS 3497:1998 Amdt 1 2001 Drinking Water Treatment Units Plumbing Requirements
  • Watermark Certificate 052014 for Model ID #IT002528

Product options:

  • Pressure Limiting Valve: 500Kpa or No PLV
  • Package options: Kits or bare housing
  • Port size: 3/4″ or 1″ Bsp
  • Replacement housing O-Ring: 826/A
