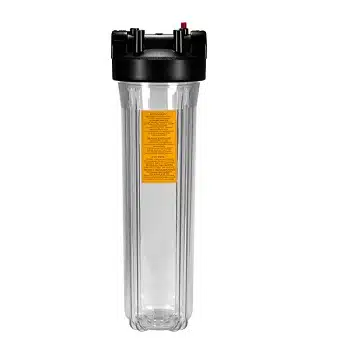

Clear 20″ x 4.5″ Big Blue Style Filter Housing

$166.00$278.50

Description

20” x 4.5″ Big Blue Clear Jumbo Filter Housing.

Large housing will take most 20″ x 4.5″ filter cartridges.

FDA grade materials, Polypropylene head cap, Acrylic clear sump.

It is recommended to have a Pressure limiting or reduction valve fitted if pressure is over 70 PSI

Pressure Release button.

Not recommend for use in sunlight areas.

Larger filters can be used which have a bigger capacity and longer service life compared to standard size filter housings and a range of filters are available for every situation.

Clear 20″ x 4.5″ Filter Housing Specifications

  • Pressure rating: Maximum 90 psi (6.2 bar)
  • Dimensions are 610mm high without bracket x 185mm wide.
  • Replacement o-ring: 826/A
  • High flow rate up to 170 Lpm depending on filter cartridge.
  • Connections: 1” Female threads
  • Maximum Temperature: 125°F (52°C)

Other options available are Brass PLV 3/4″ port 500Kpa pressure limiting valve.

BB Big White S/S Mounting bracket and screws and Plastic housing spanners are available under Filter Housings and Parts.

Do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections.
