Description
American-made benchtop water filter system with a scale reducing water filter. Reduces bnad taste/odour, improving the taste of your coffee and provides some protection against limescale.

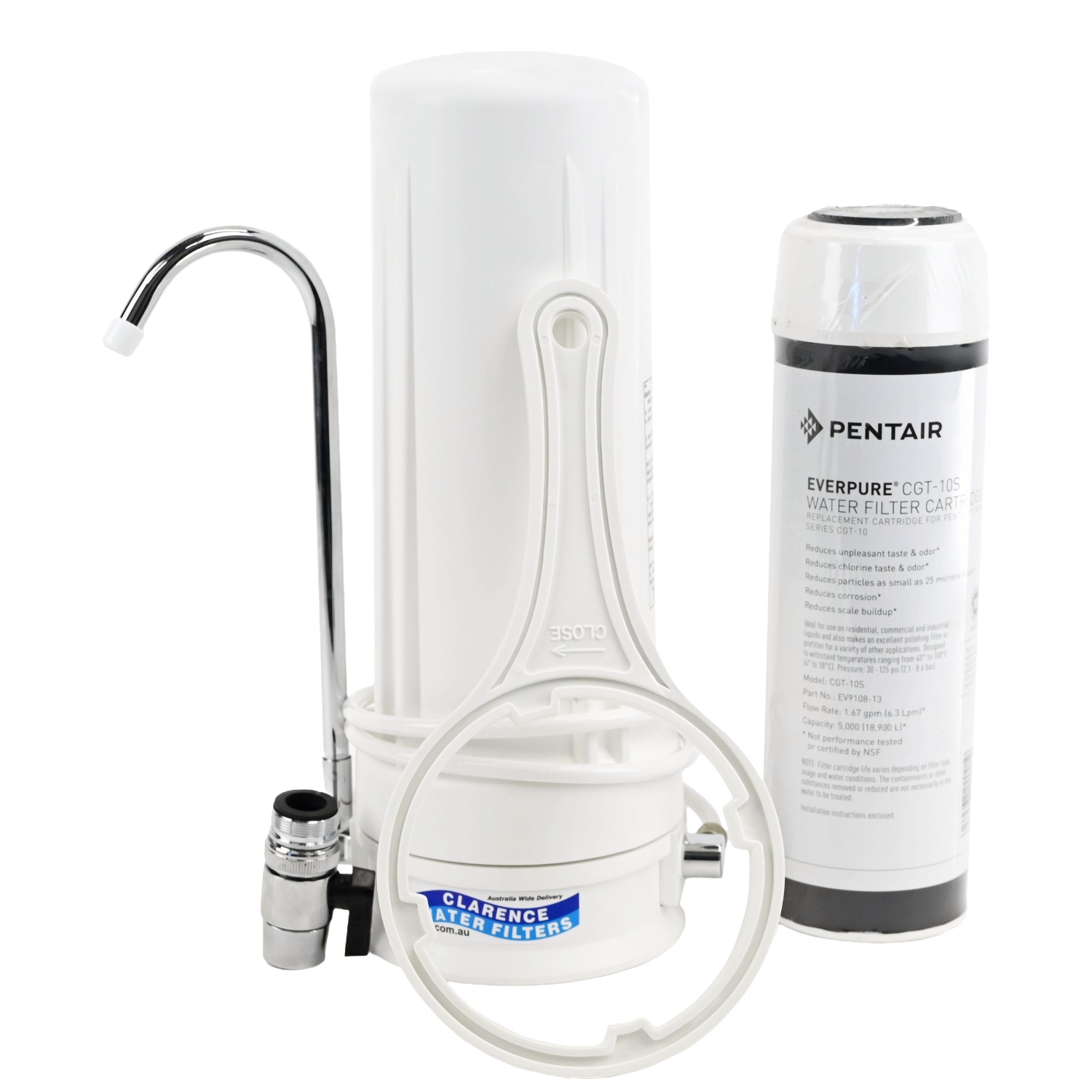

The Single Bench Top Water Filter System For Coffee is an affordable filter unit which can be installed in a matter of minutes. It is designed to provide water suitable for drinking, cooking, and coffee making.
The three-stage filter option reduces a wide range of contaminants including sediment, chlorine, bad taste/odour, and other organic chemicals. Contains polyphosphate to sequester calcium molecules. reducing scale formation in your coffee machine’s boiler, water lines, and steam wand.
Please note: Polyphosphate is effective at scale reduction on soft to slightly hard water. If you are dealing with harder water, it may only provide minor reduction and additional treatment may be required.
Features
- Compact design and simple installation process
- Produces delicious clean water ideal for drinking, cooking, and coffee making
- Simple installation, no need for a plumber
- Ideal for espresso coffee machines with a refillable tank
- All-in0one sediment, chemical, and scale reduction
- Uses industry standard 10″ x 2.5″ filters which are easily available
Filtration Process
Stage 1: Sediment Pads
Sediment pads to reduce a range of particulate contaminants including rust, sand, silt, algae, slime, and other particles. Reduces contaminants which can cause abrasion damage in your coffee machine.
Stage 2: Coconut Activated Carbon
Activated carbon reduces bad tastes and odours which can negatively impact your coffee. This includes includes chlorine, which is found in town water and is responsible for the distinctive chemical taste of treated water.
Activated carbon will also reduce other chemical contaminants in water, including herbicides, pesticides, colatile organic compouinds and more.
Stage 3: Polyphopshate
Polyphosphhate is an all natural media used to inhibit scale and and protect metal components against corrosion. It is effective at reducing limescale buildup on soft to slightly hard water, protecting your coffee machine from damage.
Polyphosphate works by binding with calcium and magnesium ions, preventing them from forming limescale that may coat your coffee machine’s boiler or clog up the fine metal water lines.
Polyphosphate will create a protective film on your coffee machine’s metal surfaces, which inhibits damage from corrosive hard water. It can also bind with other metals in the water , including iron and manganese, which can prevent them from causing discoloration.
Filter Options
There are three, high quality filter options available. All contain a mixture of activated carbon and polyphosphate.

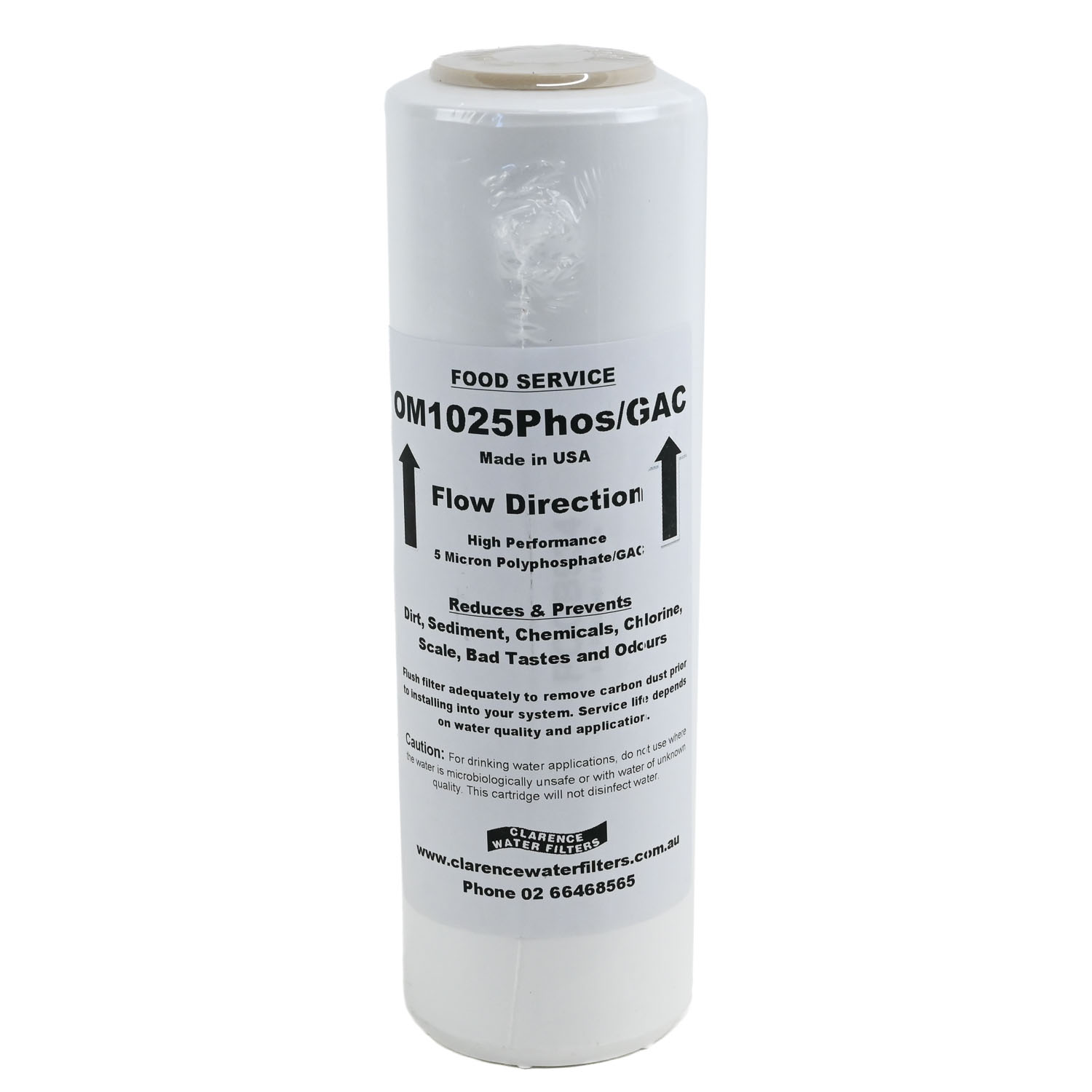

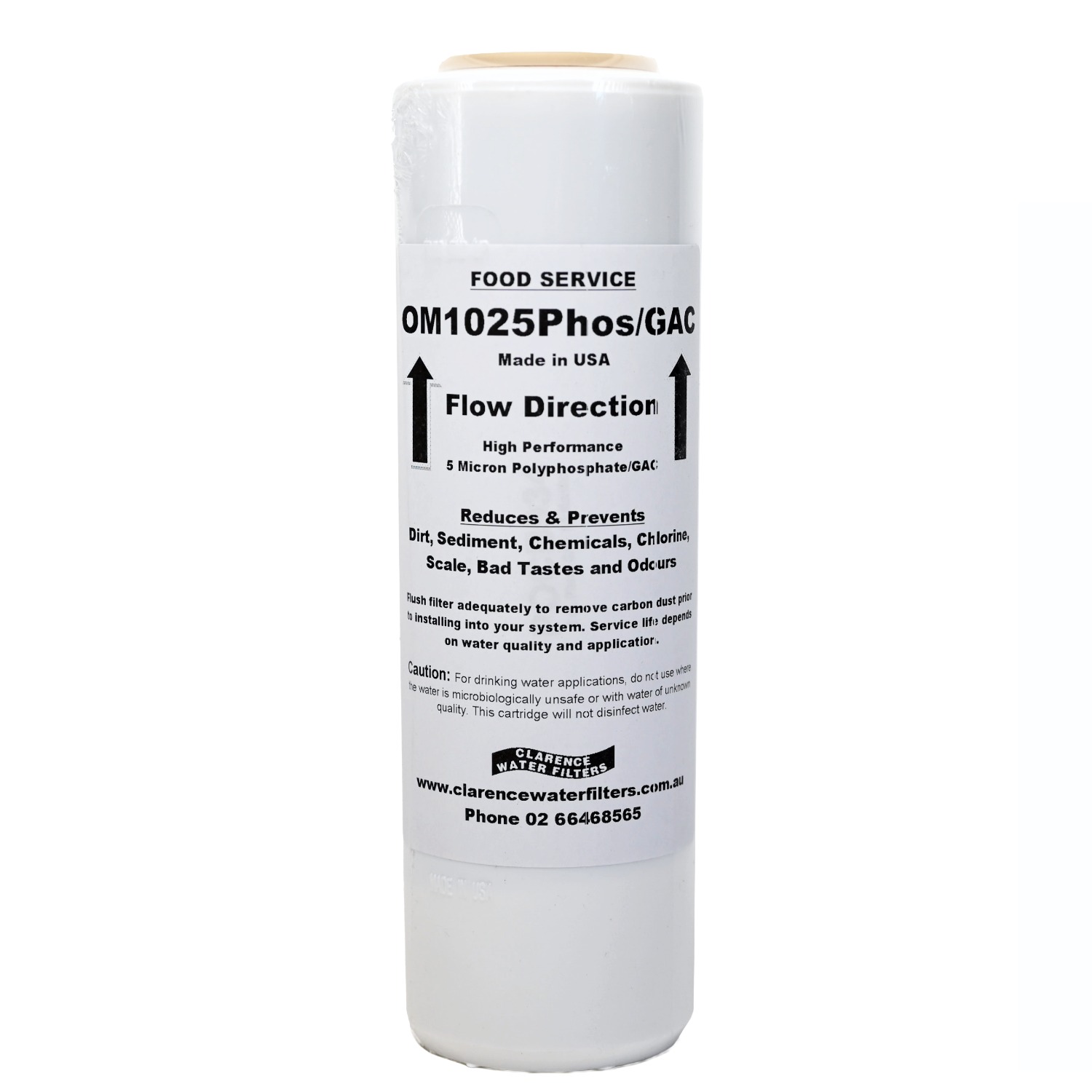

Option 1: OM1025Phos/GAC Water Filter
- OM1025Phos/GAC Water Filter
- Micron rating:Â 5 micron filter cartridge
- Recommended service life:Â 6 Months
- Dimensions: 248mmL x 70mmW (9 3/4″ x 2.5″)
- Part number:Â OM1025Phos/GAC Food-service
- Country of manufacture:Â USA

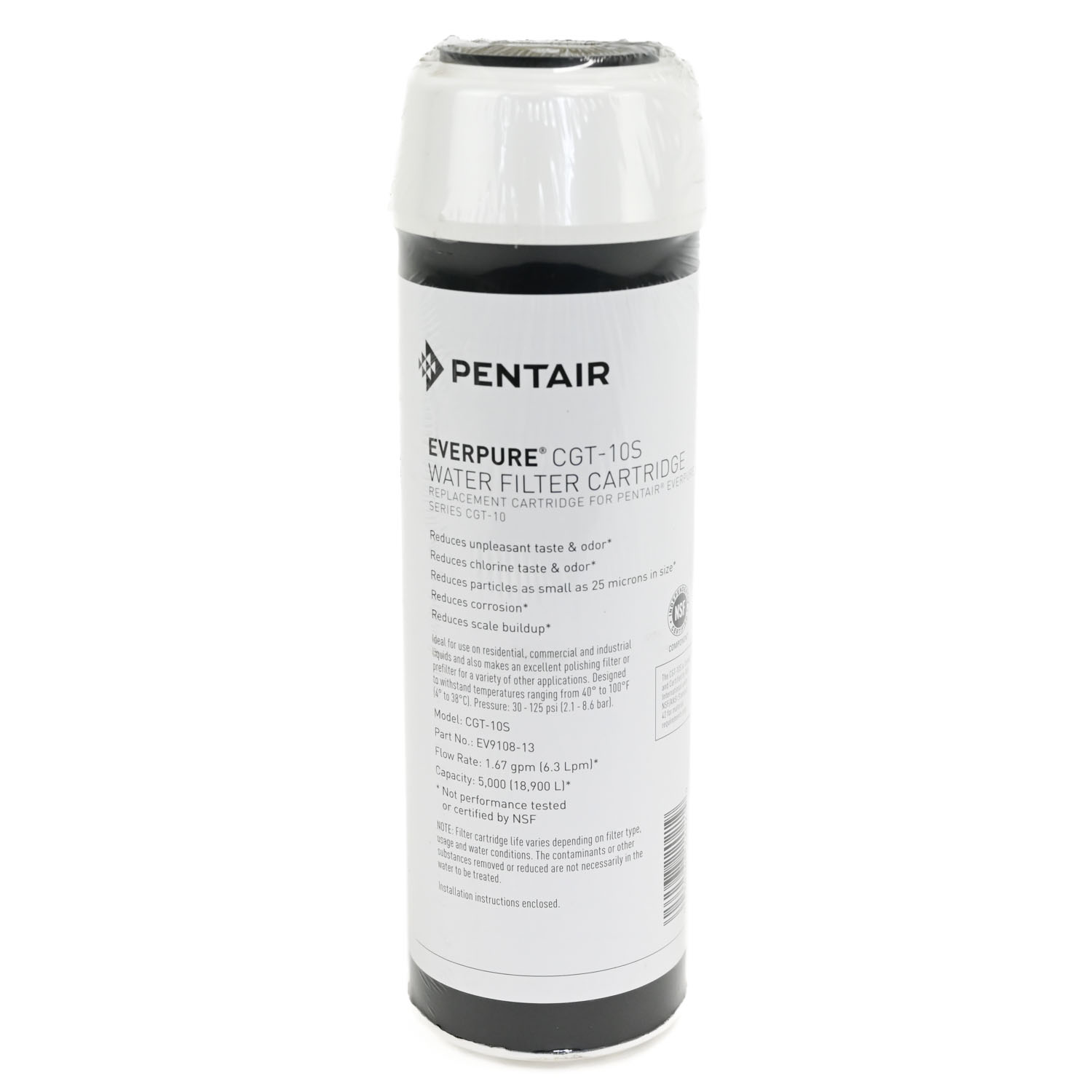

Pentair Everpure CGT-10S (EV9108-13)
- Pentair Everpure CGT-10S (EV9108-13)
- Manufacturer:Â Pentair
- Model number:Â Everpure CGT-10S
- Reorder code:Â EV9108-13
- Capacity:Â 18,900 L (5,000 gallons)
- Recommended lifespan:Â 6 months in most operating environments
- Service flow:Â 3.8 to 7.6 lpm (1.0 to 2.0 gpm)
- Micron rating:Â 25 micron sediment pads
- Pressure Requirements: 30 – 125 psi (2.1 – 8.6 bar), non-shock
- Temperature Limits:  4.4 – 38°C (40 – 100°F)
- Overall Dimensions: 9.75″ L x 2.87″ dia. (24.7 x 7.2 cm)
- Certifications:Â ANSI/NSF 42 for material requirements only

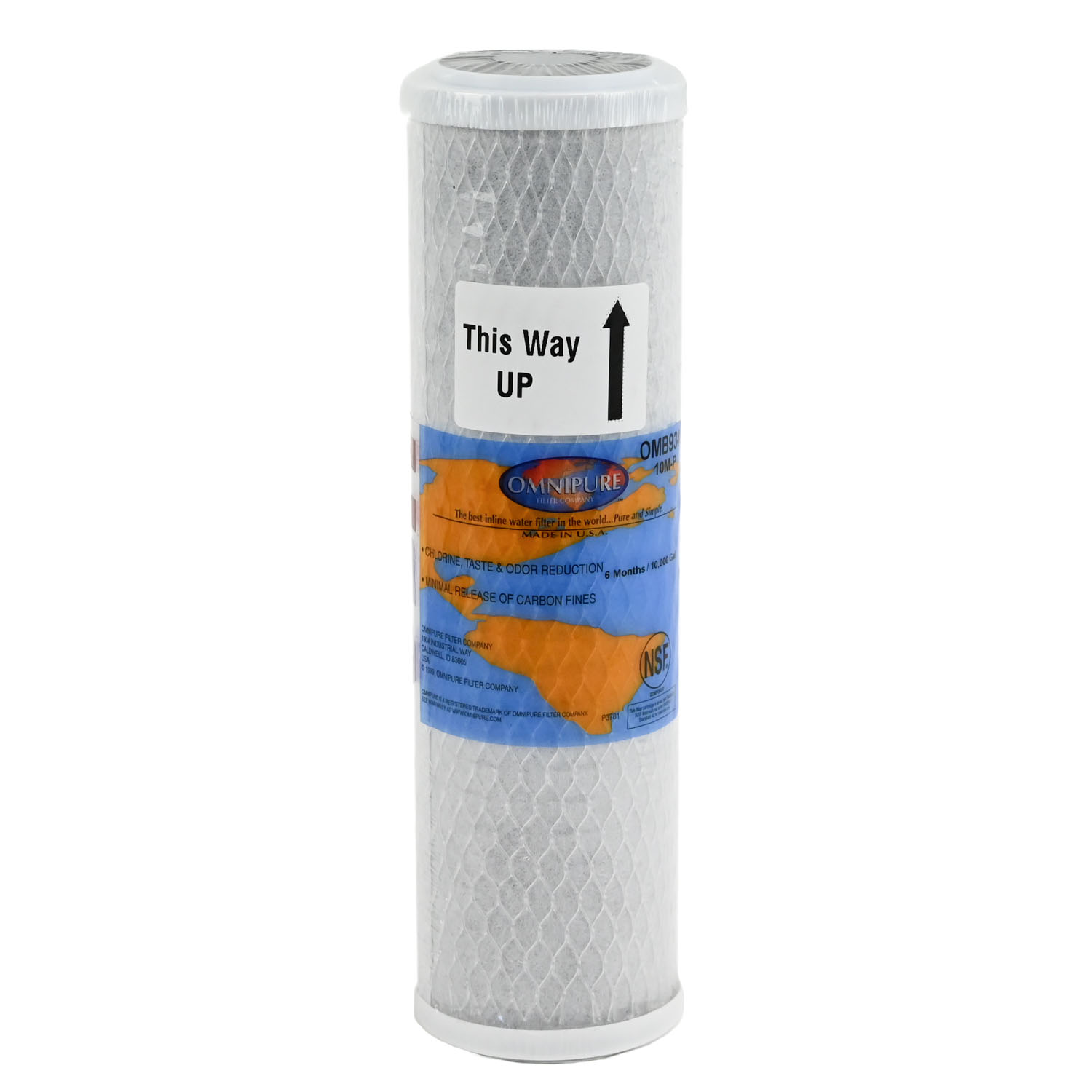

Option 3: Omnipure OMB934 10M-P Taste and Scale
- Omnipure OMB934 10M-P Taste and Scale
- Recommended service life: 6 Months with chlorine reduction of 35000 litres
- Dimensions: 248mmL x 70mmW (2.50″ O.D. x 1.25″ I.D. x 9.80″ L)
- Manufacturer:Â Omnipure
- Media:Â Activated Carbon and Polyphosphate
- Carbon weight:Â 340.2 grams
- Operating Temperature: 40 – 125_ F
- Maximum Operating Pressure:Â 250 psi
- Maximum Differential Pressure:Â 100 psid
- Collapse Pressure:Â 200 psid
- Operating temperature:Â 4.5 degrees C to 51 degrees C
- Country of Origin:Â United States
Replacement Filter Costs
-
OM1025Phos/GAC Taste Odour & Scale Triple Action Filter
The OM1025Phos/GAC is an American made water filter which reduces sediment, bad taste/odour, chemicals and scale build-up. Ideal for protecting coffee machines and other water consuming appliances.OM1025Phos/GAC Taste Odour & Scale Triple Action Filter
The OM1025Phos/GAC is an American made water filter which reduces sediment, bad taste/odour, chemicals and scale build-up. Ideal for protecting coffee machines and other water consuming appliances. -
Sale!
SALE!
Pentair Everpure CGT-10S (EV9108-13) 10″ x 2.5″ Carbon Water Filter with Scale Protection
The Pentair Everpure CGT-10S reduces sediment, bad taste/odour, chemicals and scale build-up. Ideal for protecting coffee machines and other water consuming appliances.Pentair Everpure CGT-10S (EV9108-13) 10″ x 2.5″ Carbon Water Filter with Scale Protection
The Pentair Everpure CGT-10S reduces sediment, bad taste/odour, chemicals and scale build-up. Ideal for protecting coffee machines and other water consuming appliances. -
Omnipure OMB934 10M-P Taste and Scale
High-quality 10″ American made water filter ideal for protecting water consuming appliances like coffee machines, ice machines, and vending machines.Omnipure OMB934 10M-P Taste and Scale
High-quality 10″ American made water filter ideal for protecting water consuming appliances like coffee machines, ice machines, and vending machines.
Benchtop Water Filter System – Specifications
- Dimensions: 300H x 130W
- Replacement filter size: 10″ x 2.5″
- Housing country of manufacturer: United States
- Colour: White with stainless steel components

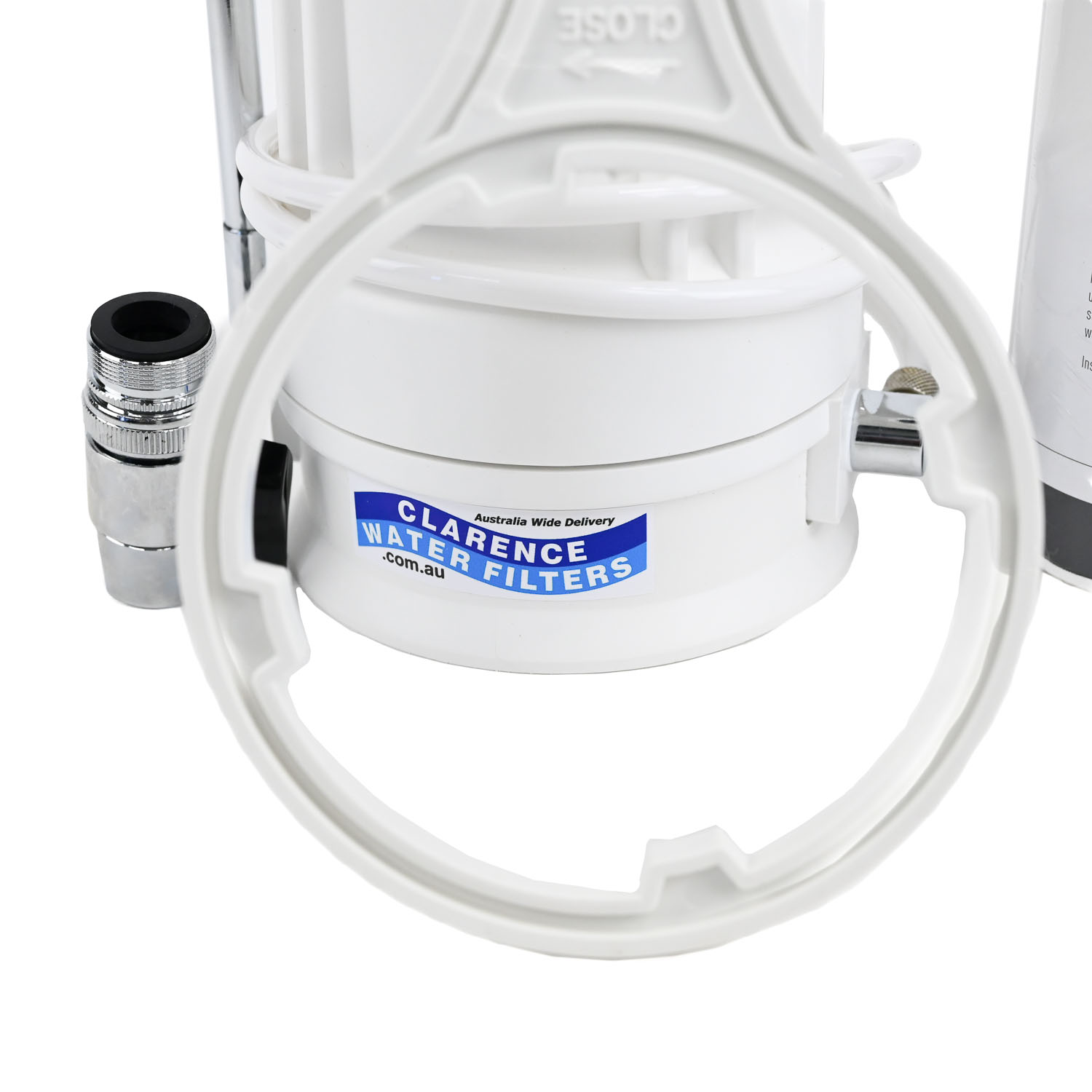

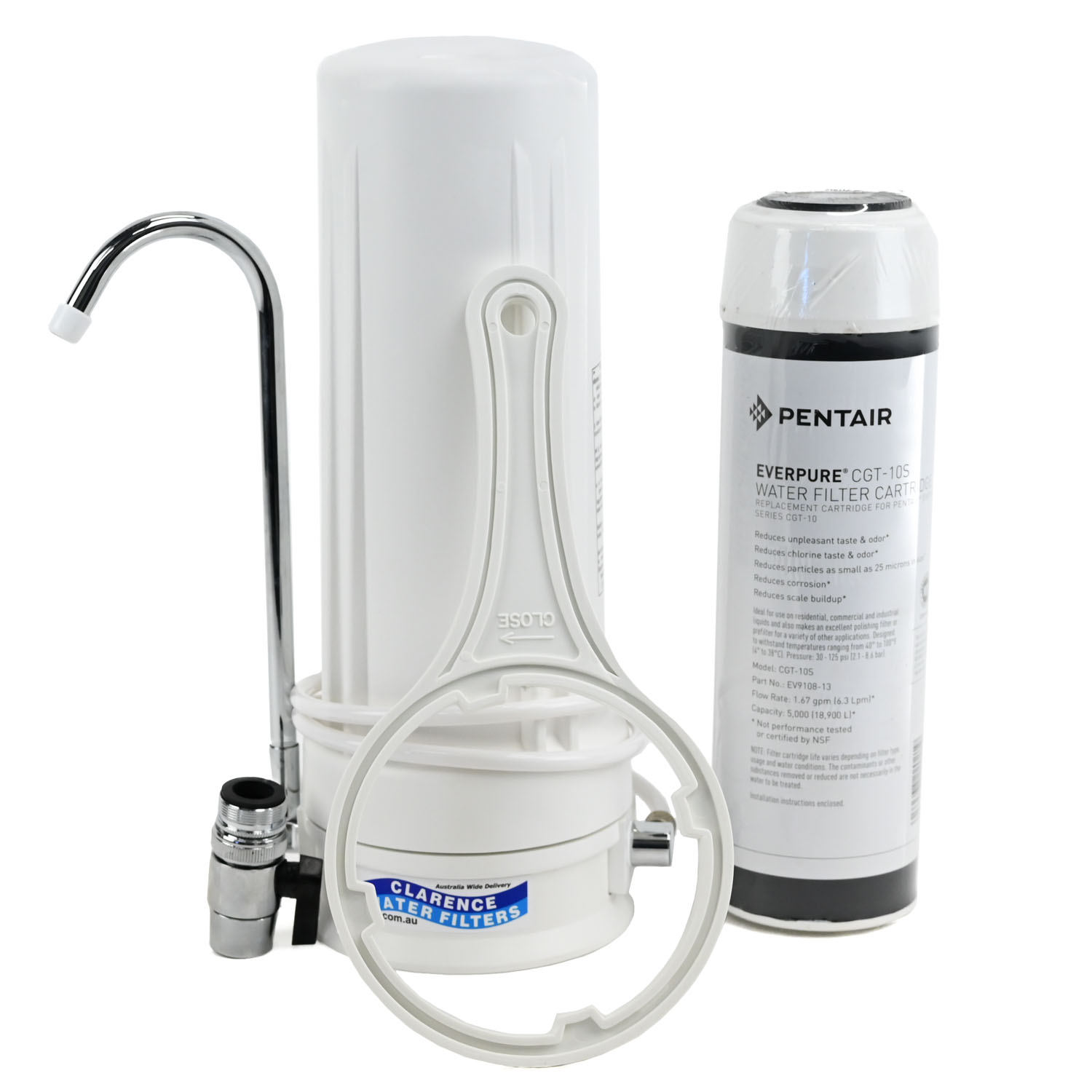

Coffee Machine Benchtop Water Filter System – What’s In The Box?
- USA-made QMP 10″ x 2.5″ Filter Housing
- Single bend spout for dispensing water (attached to housing)
- 1 meter low pressure 1/4 tubing (attached to housing)

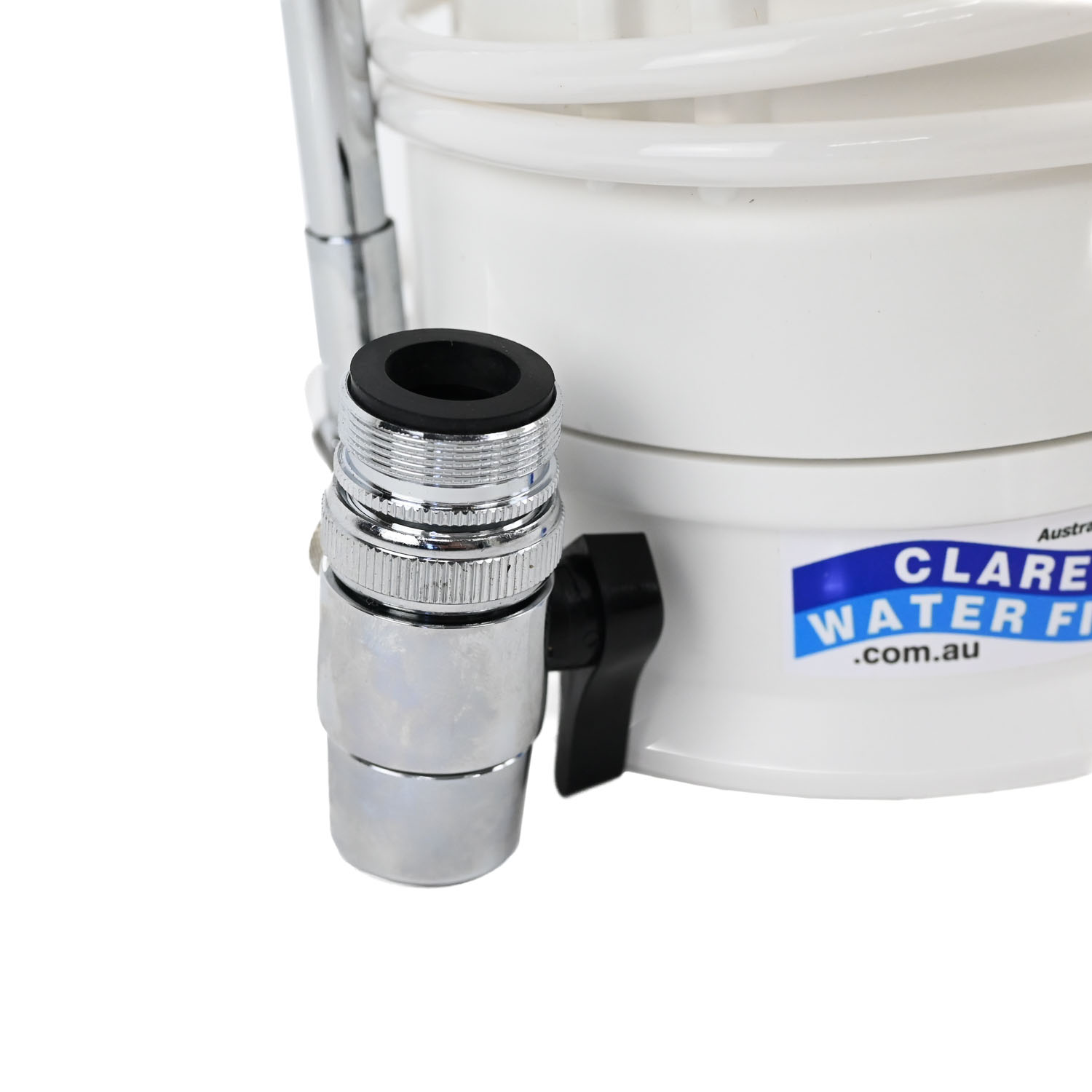

- Black lever diverter (attached to tubing)
- 899 adaptor (used if you have a 23mm internal thread on your spout)
- Scale Reducing Water Filter of your choice
This system is supplied completely assembled and ready for installation.Â
Important Usage Notes
- Never filter hot water.
- Maximum filter life is 12 months.
- Flush new carbon filters by running 5-10 litres of water through before using
How To Install Your Bench Top Water Filter
- Remove the aerator screen from the tap spout by unscrewing.
- If your spout has an external thread then the diverter valve will screw straight onto it.
- If your spout has an internal thread then you will need to screw the threaded adaptor supplied into
the spout before attaching the diverter valve. - If you find water is leaking from the diverter attachment, check the o-ring is still in place.
If the o-ring is present but the unit is still leaking, tighten more. A pair of multi-grips can be used to give it a small final nip - When the lever is straight down this allows you to run hot & cold water for washing up.
To produce purified water turn on the cold water tap then turn the lever across, this diverters the
water through the filter and out the filter spout. - All carbon filters need to be flushed for the first 5 litres or, until water becomes clear and has no
bubbles – this removes any carbon fines and air from new filters. - If water appears to have tiny bubbles (or a white appearance), this is caused by air being trapped
in the filter and will go away with use or flushing.
How to Clean Benchtop System and Replace Filters
- Turn the system upside down and undo the sump by unscrewing from the right turning to the left.
- Empty out any residual water.
- Remove and dispose of old filter, then use a bottlebrush to clean inside the filter housing and up
inside the head. - Carefully remove and clean O-ring, then use some veggie or cooking oil on the O-ring to keep it
supple – this prolongs their life and makes the sumps easier to undo at next filter change.
Ensure the lubricated O-ring is put back into place, otherwise it could be damaged causing the
system to leak. - Screw the filter sump and housing head together and firmly hand-tighten.
- Never use a housing spanner to tighten the filter sump – these are for unscrewing only.
- Flush filters for 5 litres as per above. Mark the date on the filter or a calendar when the next
replacement filter is due. - Contact us for Spare Parts, Replacement Filters and technical advice.
Bench Top Water Filters – Frequently Asked Questions
Are Bench Top Filters As Good As Under Sink Filters?
Yes. Our QMP bench top systems use the exact same 10″ filters as a standard 10″ x 2.5″ Under Sink Water Filter System.
The main difference you might see is that most under sink installations are twin systems, with two different filters. This can give the system additional protection against contaminants like sediment or fluoride.
That being said, you can also have twin or triple bench top systems. The only downside of these systems being their bulky size.
Will I Need A Plumber To Install A Bench Top Water Filter?
No, you won’t. Installing the system is simple. Just remove the aerator and screw on the benchtop water filter adaptor. After that, you will just need to flush your water filter for 5-10 litres.
When you purchase your system, we will send complete instructions on installation. There are also informative videos online and you can call us for help if required.
The Bench Top Water Filter Diverter Is Leaking, What Should I Do?
The diverter is the part of the system that screws onto the tap spout. If water is coming out of the diverter, check the following:
1. Are All O-rings Present?
There will be a small o-ring that sits inside the top of the diverter. This helps it form a seal with the tap spout. If this o-ring is missing or damaged, then it may cause water to leak from the side of the diverter.
2. Is The Diverter On Tight Enough?
In most cases, the diverter only needs to be screwed on hand-tight to form a good seal. However, if it is leaking after installation, give it a small nip with a pair of multi-grips or pliers.
How Long Do Benchtop Water Filters Last?
The lifespan of each filter will vary based on several factors, including:
- How Much Water You Are Using Daily
- How Good The Water Is Where You Live
- What Contaminants You Are FIlter Out (Certain filter medias have less capacity)
- The Size Of The Filter
- How Many Stages Are In Your System
In general terms, the average household will get about 12 months from a single benchtop system with standard 10″ carbon block filter. Fluoride filters tend to have less capacity so need to be changed more often. The lifespan of sediment filters will really depend on how much sediment is in your water.
I Have Water Leaking From The Base Of My Bench Top System, What Should I Do?
If you have a white 10″ QMP housing, there will be an o-ring in the base of the housing. This forms a seal when you screw the housing shut.
Water leaks from this section can be caused by:
- The Housing Isn’t Screwed Together Tightly Enough
Give it another twist to make sure it is on tightly enough. In most cases, the housing only needs to be screwed on hand-tight, but you may need to give it a small tweak with your housing spanner. Avoid over-tightening the unit as you can damage the o-ring. - The O-ring Is Perished Or Damaged
Take a closer look at the condition of the o-ring. If there are any tears or the o-ring looks very flat, it may be time to replace it. - Damage To The Housing
The plastic housing can crack if it has been dropped or massively over-tightened. To see if this is the case, inspect it for hairline cracks.
Pros and Cons Of Bench Top Water Filters
Like any water filtration system, bench top water filters have their set of advantages and disadvantages. Here are the pros and cons of bench top filter systems.
Pros of Bench Top Water Filters
Simple To Install
One of the main reasons to choose a bench top water filter is that they can be installed in a matter of minutes.
You just need to unscrew the aerator on the end of your kitchen spout and screw on the bench top filter attachment. It couldn’t be easier.
To use the system, you flick the black lever on the adaptor into the on position and collect filtered water from the unit’s spout.
You won’t need a plumber to install it, which means cost savings.
An Affordable Way To Filter Your Water
Benchtop water filter systems tend to be less expensive than under sink systems simply because there are less components involved.
An under sink system usually need a pressure limiting valve, shut off tap, a metal bracket, additional fittings and extra tubing. This all increases the cost of the system.
Easy To Find Replacement Filters
Our most popular bench top water filter system uses 10″ x 2.5″ double open ended filters — the most common water filter form factor.
All water filter stores and many hardware stores stock this type of filter, which means finding replacements is simple!
A Fantastic Option For Renters
One of the challenges of renting is that you may not be allowed to make any substantial changes to the property you are living in.
This means you may not be able to drill a hole in the sink or counter top to fit a dedicated drinking tap for an under sink system. Installing a whole house water filter is also usually out of the question.
Bench top water filters don’t require any changes to the kitchen to be installed. They simply screw onto the kitchen spout.
They fit the vast majority of spouts including spouts with an internal thread (call or email us if you are unsure about the suitability of your spout for a bench top system).
Many Types Of Water Filters To Choose From
Another advantage of using a benchtop system with standard 10″ filters is that there are dozens of compatible filters to choose from.
You can choose a filter with the ideal flow rate, micron rating, lifespan, capacity, and contaminant removal capabilities.
Some of the options include:
- Very fine carbon blocks for chemical and heavy metal removal
- Granular activated filters for chemical removal at high flow rates
- Ceramic filters for bacteria removal
- Fluoride reduction filters
- Silver impregnated carbon filters which reduce the risk of bacterial growth in the housing
- Mixed media filters with a combination of filtration approaches
If you need any help finding the right filter for your requirements, give us a call or send an email.
The Entire Unit Is Portable
The compact size and easy installation of benchtop water filters means they are a great choice for portable water filtration.
You can take your water filter with you on holidays or when staying at a family member’s home. Installing it only takes a few minutes so you will always have pure, delicious water available when outside of your home.
Cons Of Bench Top Water Filters
They Take Up Space On Your Countertop
Bench top units are designed to sit on a countertop, which means they will be taking up some room in your kitchen.
This may be an issue if you have a small kitchen or limited space on the bench. In these situations, an under sink unit may be a better option.
Another good option for getting around this problem is installing your bench top water filter in your laundry. You can then fill up containers of drinking water as needed without losing precious counter top space in your kitchen
Doesn't Fit All Spouts
Bench top water filter systems cannot connect to certain types of spouts. For example, you may find it difficult to connect if you have a:
- Tap imported from overseas, which uses a non-standard aerator thread
- Very thin spout which is normally used in a caravan or RV
- Flexi tap with an adjustable neck (they often don’t have a thread in the centre part)
Some of these issues can be overcome by using a Plain Spout Internal Adaptor or 3 Screw Adaptor .
