Twin Under Sink Water Filter Systems




QMP1/4TUS American Made quality housing system complete with tap and fittings for easy installation.

The twin under sink system is the most popular system as they take standard size filter cartridges that will always be available in the future and you have a range of filter and tap options to choose from. Twin systems are also excellent for water supplies that have sediment or where there is a high water usage.

All the systems below will offer you convenient great tasting water on tap in your own kitchen and you will never have to boil your drinking water again with these systems. Reduces Dirt, Mud, Slime, Algae, Fibres, Toxins, Solvents, Pesticides, Herbicides, Chloroform, Chemicals, Giardia, Cryptosporidium and may more contaminants.

Complete with easy to read installation instructions and all fittings needed to install.

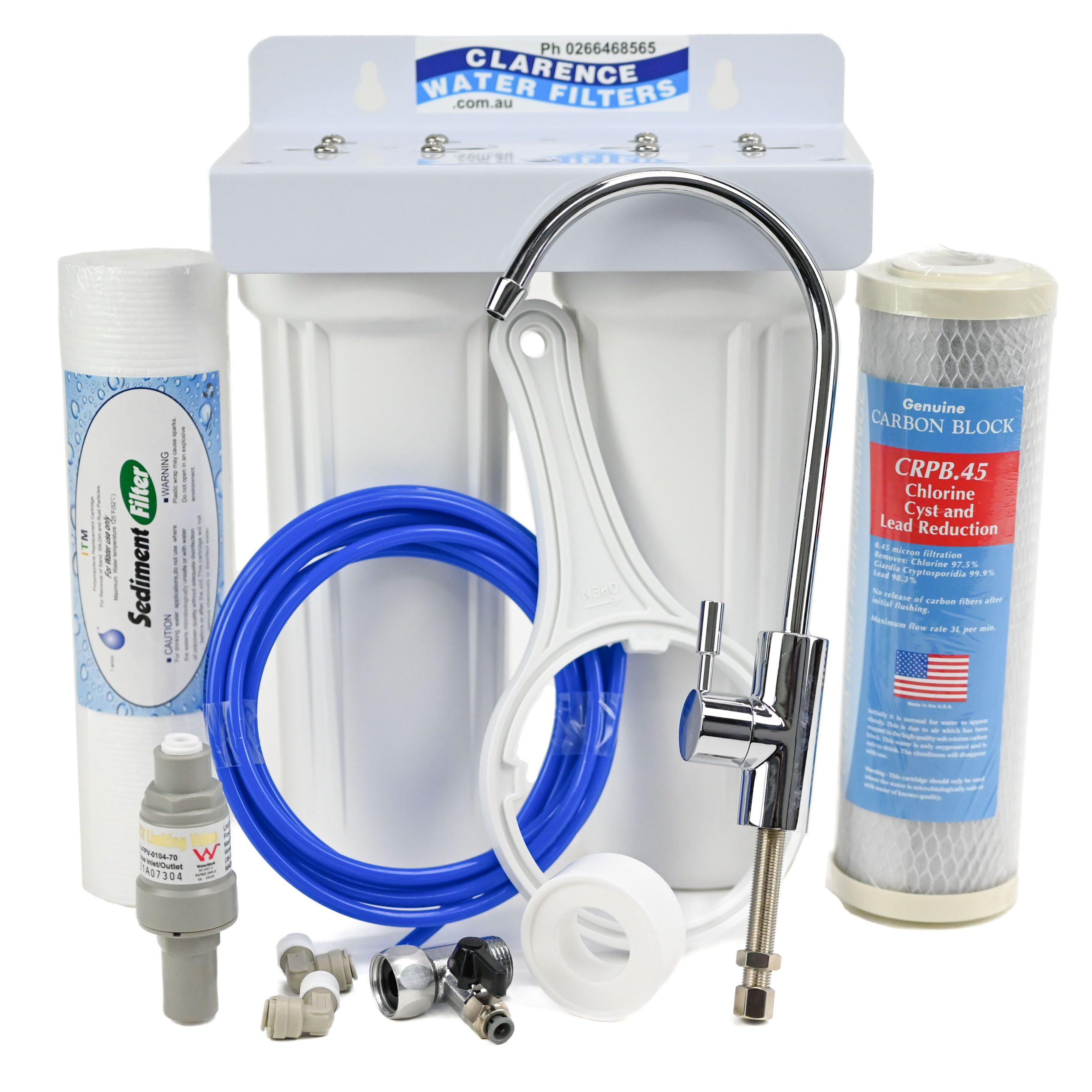

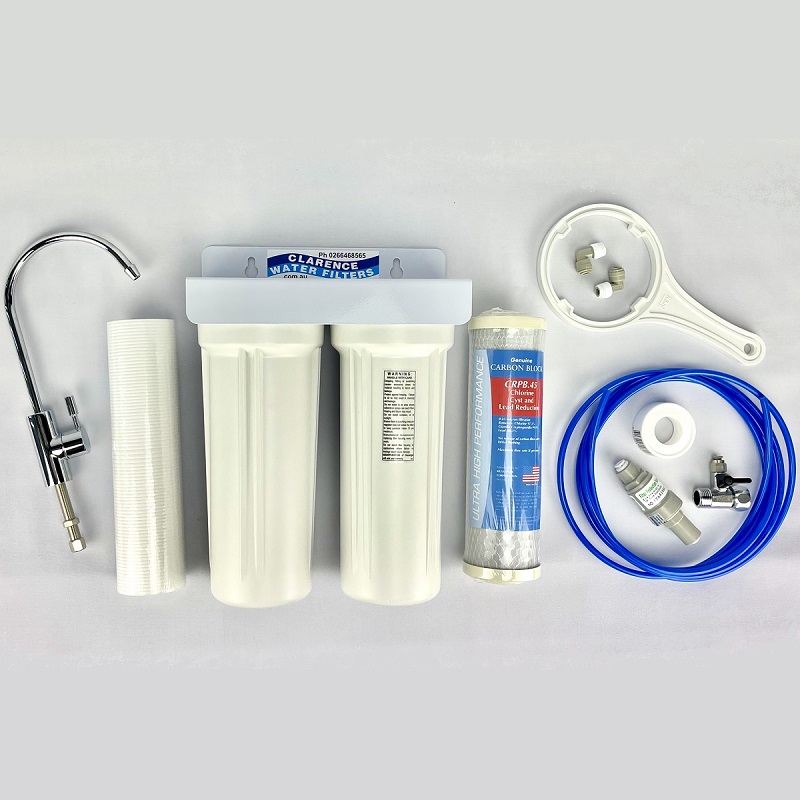

Twin QMP housings on a Steel mounting bracket with quick connect push in tube fittings. Installation kit contains cold water supply connection for joining into your 1/2 inch S/S braided cold water line. A shut off tap for servicing. Inline pressure limiting and non return valve, 3 metres of 1/4″ high pressure tubing which will allow you to mount the system away from the sink cupboard. System can be standing up or on laid down if high is a problem. Thread tape and housing spanner are also supplied. If you require different fittings just contact us.

In the tap options you can choose between the Standard filter taps that only need a 12mm hole through the sink or bench top or use a all in one 3 way tap that can replace your existing hot and cold mixer tap to fit existing 33mm Hole Cut-out Diameter. Simply click on the taps option to view all the available taps.

As a guide it’s recommended to replace filters every 2000 litres or 6 to 12 months depending on your water quality. Dimensions of housings including bracket are 325mm high by 255mm wide without the fittings.

The first stage filter is a 1025PS polyspun dirt & sediment filter.

Please choose your second stage filter from these filter options.

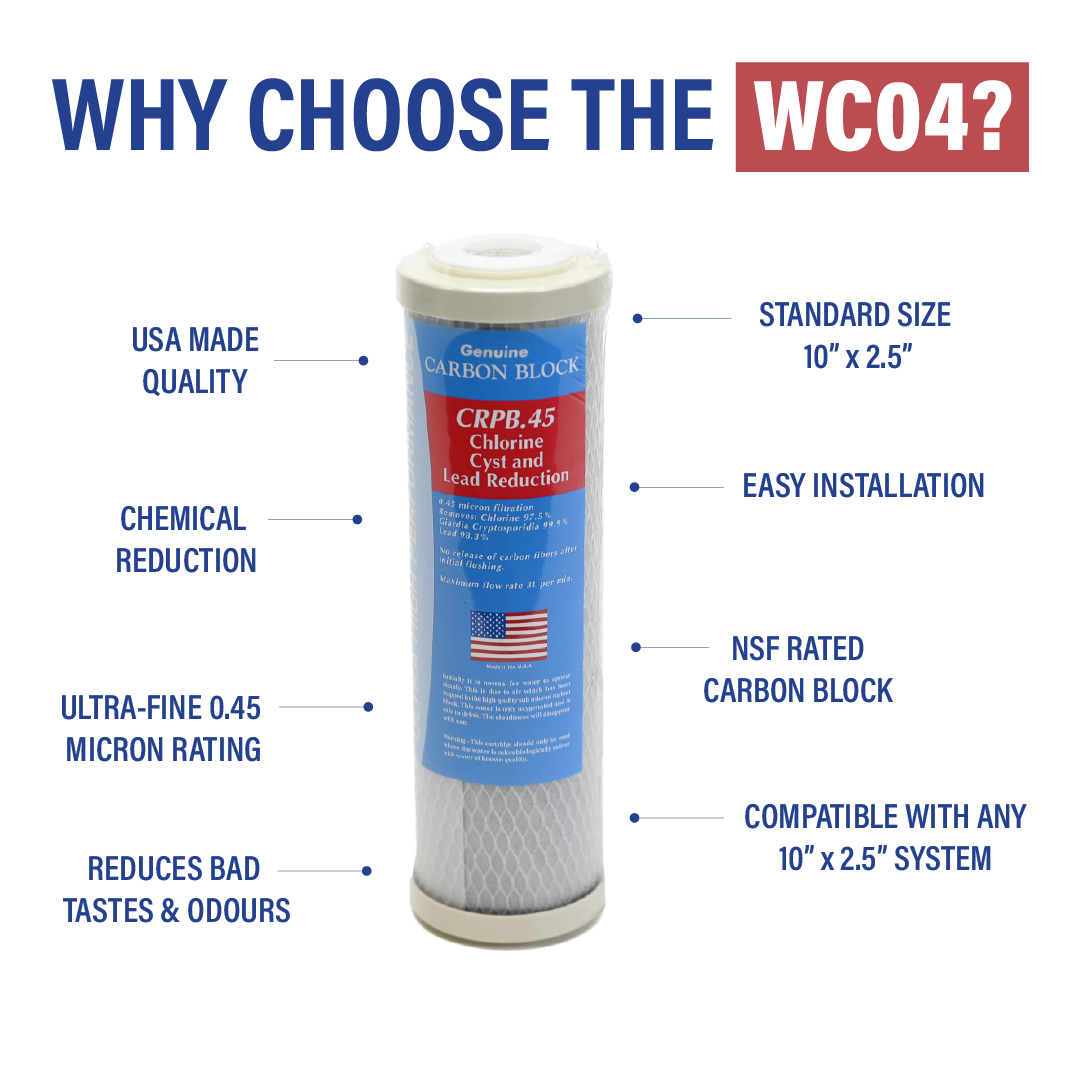

Option 1: WC04 For TOWN WATER and reducing heavy metals. WC04 Multipure 0.4 micron carbon block filter for reducing chlorine. (Most popular option on town water)

Option 2: BC10Z For TANK and TOWN supplies. Ideal for holiday houses or properties where the water filter may not be used all the time. CWF-CVM-BC10Z Silver Impregnated 1 micron carbon filter will inhibit bacteria growth in the filter when not in use. A great all round filter with an excellent flow, ideal for low water pressure. (Most popular option on tank water or town supplies with Bio Slime)

Option 3: BC04 For TOWN WATER high in chlorine and heavy metal removal.  BC04 Multipure 0.4 micron carbon block filter for reducing high chlorine. These filters have a small centre core channel allowing the filter to have more carbon in the filter.

Option 4: Doulton UltraCarb TANK for maximum protection on town or tank water from bacteria. Doulton Ultra Carb ceramic filter 0.9 micron. These filters will reduce the flow and need to be taken out and cleaned with a scouring pad each time the flow rate drops.

Option 5: AP1025KDF/GAC Town & Tank high capacity 10 micron combination filter of KDF55 media that removes high levels of chlorine at fast flow rates and inhibits bacteria growth in the filter, it also reduces Heavy Metals. Combined with Silver GAC carbon for reducing Chemicals, Bad Tastes and Odours, Dirt, Algae & Sediment.

Option 6: DFX-CB-10 & AMB/10 Town Water Fluoride and Chloramines Reduction. The DFX-CB-10 cartridge will reduce sediment down to 10 Microns and will also help reduce Chlorine, bad taste and odours. The AMB/10 Reduces 92% of Fluoride and 99% of Chloramines.

More Fluoride removal options are available under the Town Water Fluoride Systems
