Brita Purity C Filter Head & Water Connect Kit with PLV



BRITA Purity C filter water connection kit.

This kit suits the Brita Purity C range of filters, including the:

  • Quell ST
  • Finest
  • C1000 AC and
  • Fresh

Please Note: Will not fit the A1000 OAR1 type filter cartridges.

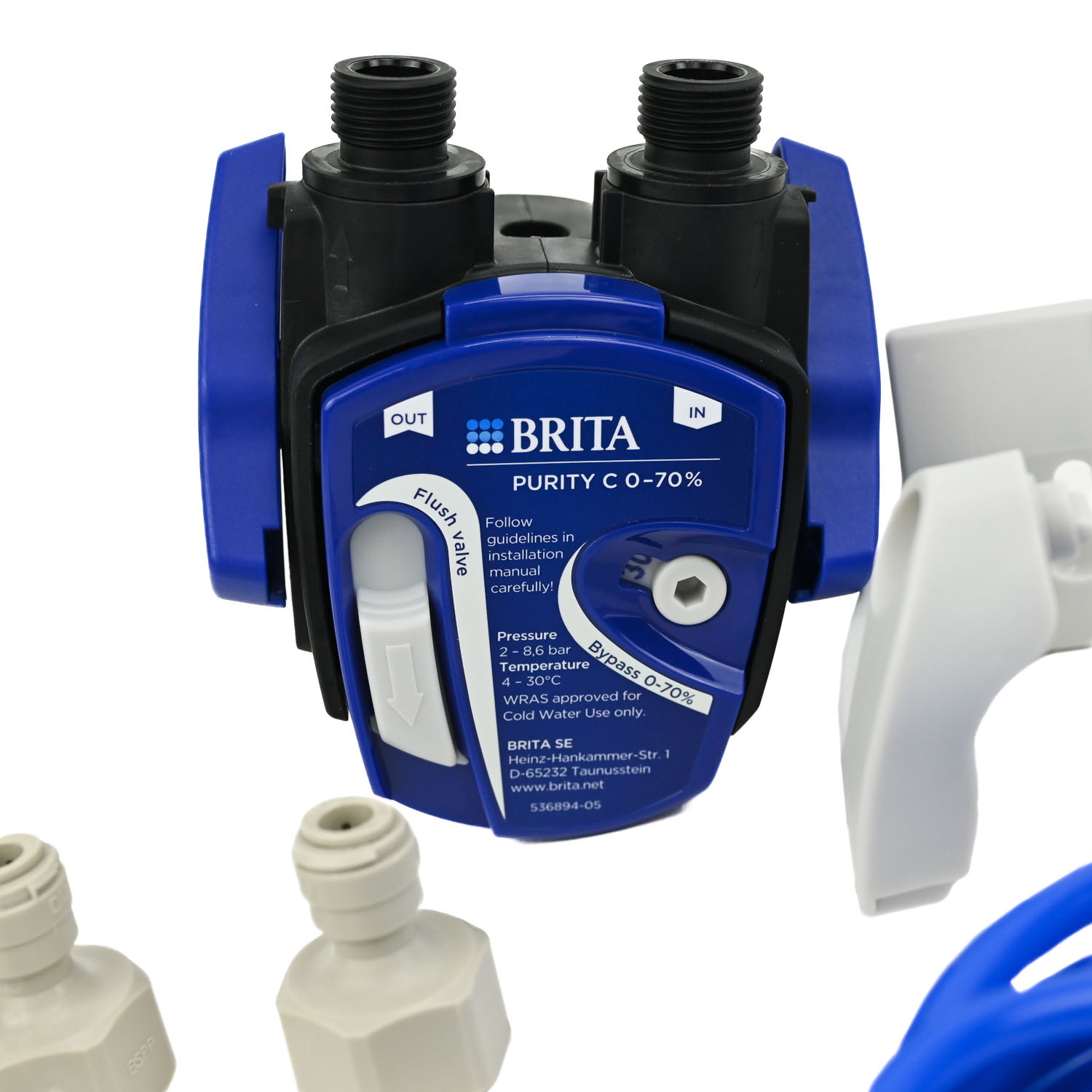

The filter head that enables a variable by-pass setting of 0 – 70 % this guarantees you an optimum water quality for every application (coffee and espresso machines, vending machines. You can use the by-pass to tweak your mineral reduction based on your coffee flavour preferences, the quality of your water and desired filter lifespan.

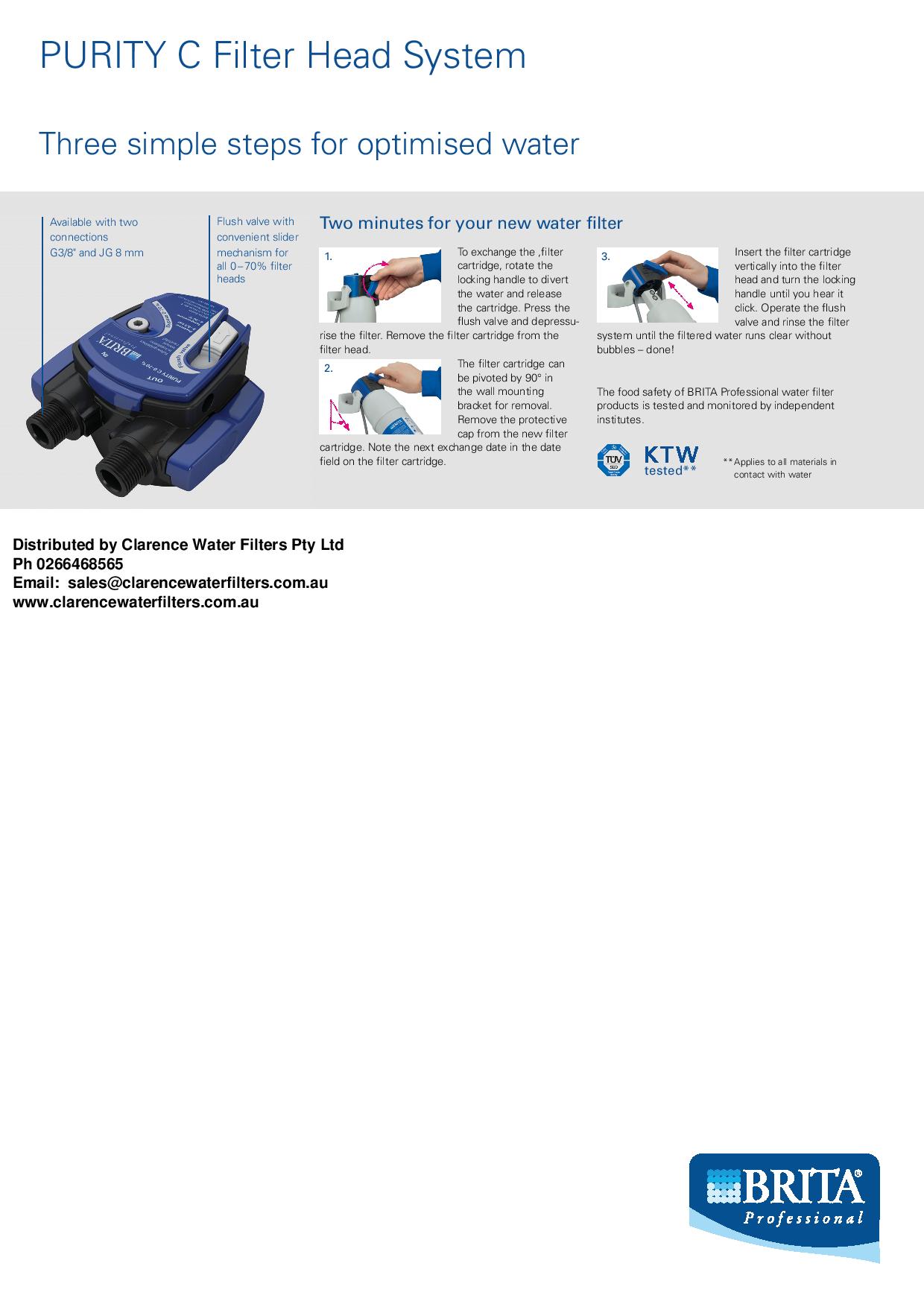

The head includes a flushing function which allows the flushing of filters and saves time and messy purging of filter systems that are connected to machines.

Ideal for drinking water tap installations and coffee machine installations.

Also includes plastic swing mounting bracket.

Brita Purity C Head By-pass Setting Guide

Set the head to suit the application and filter type, below is a quick guide.

  • 0% for Purity Fresh, AC and Finest filters
  • 0% – 70% Adjustable for the Purity Quell ST filter range (settings vary depending on water hardness and application)

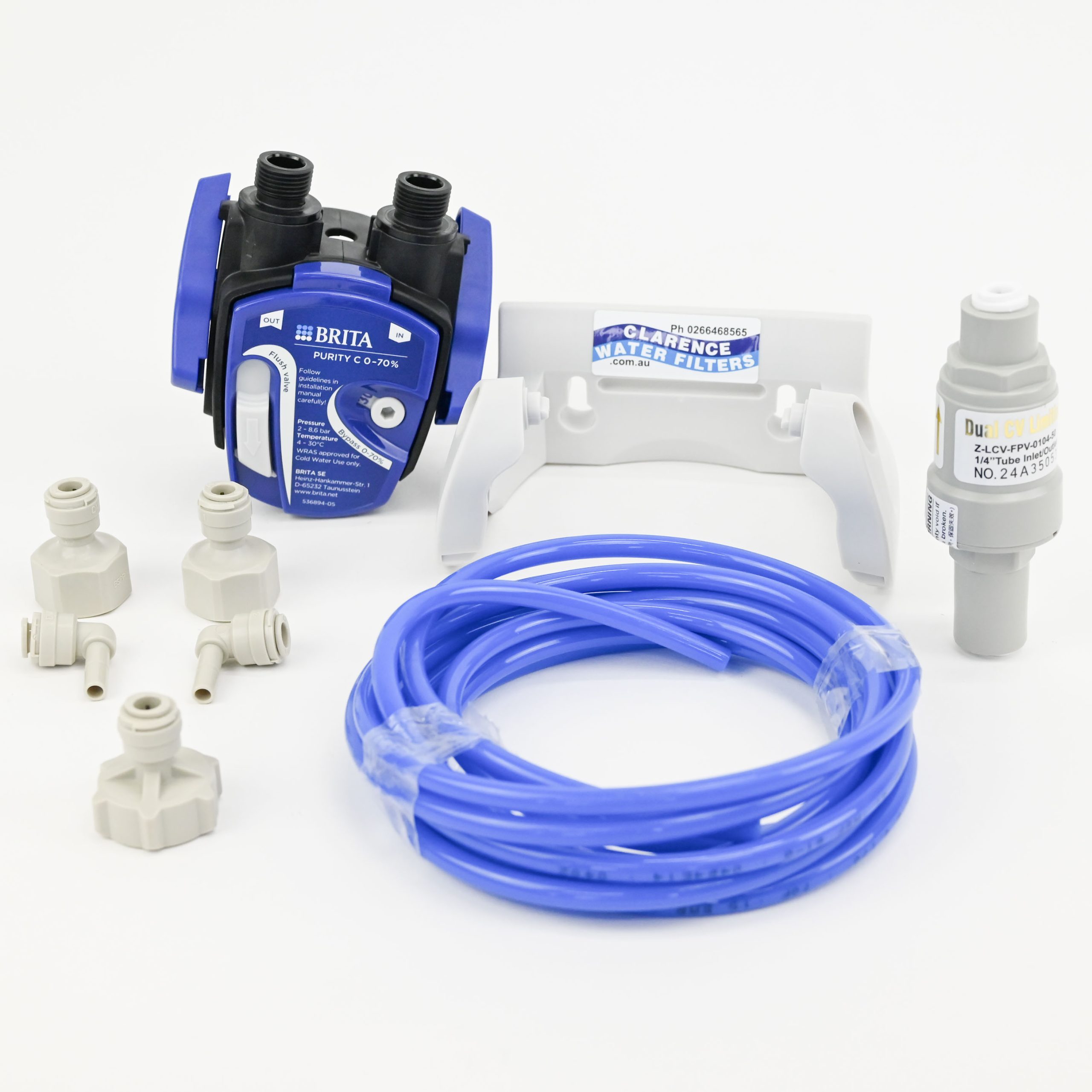

What’s In The Box?

The kit includes:

  • 1/2″ bsp female thread water inlet tap fitting
  • 1.5 metres high pressure tubing
  • 350 kpa pressure limiting and non return valve to protect your machine
  • Brita Purity C Head with swing out bracket and fittings.

On the inlet water supply line choose between:

1/4″ or 3/8″ quick connect John Guest tube fittings and on the outlet side the options are 1/4″ and 3/8″ John Guest tube fittings or 3/8″ bsp male thread with a 1/2″ male bush adaptor for easy connection to your machines water line.

Just contact us if you need help with choosing the right fittings to suit your situation.
